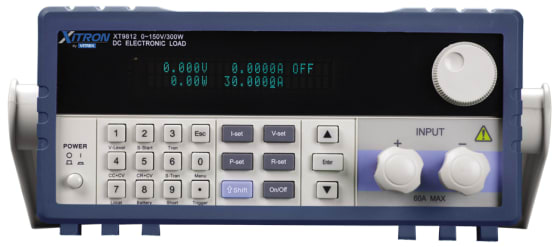

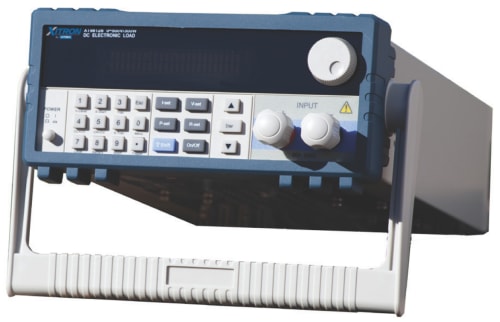

XiTron 822-XT9812 LED Programmable DC Electronic Load, 300W, 150V, 30A

Name: XiTron 822-XT9812 LED Programmable DC Electronic Load, 300W, 150V, 30A
Brand: XiTron
SKU: XiTron822-XT9812
Price: 1798.37 USD
Availability: InStock

0 reviews | Model: XiTron 822-XT9812

Compare

LED Programmable Electronic DC Load, 150V

LED Programmable DC Electronic Load with 300W of power, 30A current, and 150V voltage.
Six high speed operating modes
High-luminance VFD screen
Intelligent fan system that is automatically activated based on temperature changes
Soft-start time setting runs the power supply according to the pre-set voltage value
Battery and short-circuit testing functions
Capable of dynamic testing with rising edge and falling edge settings
Supports external trigger of input and output
External current waveform monitor terminal
Supports remote voltage compensation and multi data storage
Power-on-self-test, software calibration ready, and standard rack mountable
Arbitrary waveform editing
USB Interface

View Product Details

List Price: $1,848.00

Your Price: $1,798.37

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	XiTron 822-XT9812 LED Programmable Electronic DC Load, 150V	XiTron 822-1500 Line/Load Chassis with 1510 Controller	XiTron XTPEL-3032E 0-500V Electronic Load 300W	XiTron XTPEL-3031E 0-150V Electronic Load 300W
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

XiTron 822-XT9812 Accessories

Choose a Category

Cables - Misc
Rack Mounts

for the XiTron 822-XT9812

XiTron 892-XT131 RS232 to RS232 Cable

Catalog: 892-XT131

(0)

In Stock!

Add to Cart

XiTron 892-RB-XT9812 Rack Adapter, XT9812, Black

Catalog: 892-RB-XT9812

(0)

In Stock!

Add to Cart

XiTron 822-XT9812 LED Programmable DC Electronic Load

Electronic DC Load

300W Power, 30A Current, and 150V Voltage
High-luminance VFD screen
Capable of dynamic testing with rising edge and falling edge settings

The XiTron 822-XT9812 LED Programmable DC Electronic Load is designed for LED driver or DC power supply applications.

There is a special circuit that has been designed primarily for the LED driver. The design utilizes high-performance semiconductors with high speed and high accuracy, and resolutions of 0.1 mV and 0.01 mA (the basic accuracy is 0.03%, the basic current rise speed is 2.5 A/us).

The XT9812 has wide applications from production line settings to the engineering bench. Target markets include the following type of manufacturers and markets; LED driver, cell phone charger, cell phone battery, electronic vehicle battery, switching power supply and linear power supply manufacturers, research institutes, automotive electronics, aeronautics and astronautics, solar cells and fuel cell markets.

Provides steady reading

The XT9812 Programmable DC Electronic Load features LED mode that supports LED power driver test, provides steady reading, and capacitance sensitive driver compatible. It is capable of dynamic testing with rising edge and falling edge settings. This electronic load has soft-start time setting that runs the power supply according to the pre-set voltage value. It includes an intelligent fan system that is automatically activated based on temperature changes. It supports remote voltage compensation and multi data storage and has USB interface.

The XT9812 includes six high speed operating modes:

Constant Current (CC)
Constant Resistance (CR)
Constant Voltage (CV)
Constant Wattage (CW)
Constant Current (CC) + Constant Voltage (CV)
Constant Resistance (CR)+ Constant Wattage (CW)

XView Software Compatible

While all XiTron precision test equipment is designed to be used in a completely stand-alone manner, there are times when external tools can aid or enhance the operation of an instrument. XView software tools and drivers are designed to help easily configure an instrument from a single screen. or are used to view a complete set of measurements in a single screen. Other XView tools are designed for data collection where results can be recorded in an Excel-compatible file for post-processing, insertion into reports, or simply for archival purposes.

Industries Served

Lighting Consumer Products
Medical Automotive
Regulatory Agencies

Process Control
Power Supply
Battery

Alternative Energy
Military
Aerospace

Model: 822-XT9812 Specifications
Description	LED Programmable DC Electronic Load, 150V
Input Rating
Power	300Wxyz
Current	0-30A
Voltage	0-150V
CC Mode
Range	0-3A
Resolution	0.1mA
Accuracy	0.03% + 0.05%FS
CV Mode
Range	0.1 - 19.999V
Resolution	1mV
Accuracy	0.03%+0.02%FS
CR Mode (Input Current ≥ 10%FS) (Input Voltage ≥ 10%FS)
Range	0.03Ω-10kΩ
Resolution	16 digit
Accuracy	0.1%+0.1%FS
CW Mode (Input Current ≥ 10%FS) (Input Voltage ≥ 10%FS)
Range	0-300W
Resolution	1mW
Accuracy	0.1%+0.1%FS
V Measurement
Voltage	0-19.999V
Resolution	1mV
Accuracy	0.015%+0.03%FS
I Measurement
Current	0-3A
Resolution	0.01mA
Accuracy	0.03%+0.05%FS
W Measurement (Input Current ≥ 10%FS) (Input Voltage ≥ 10%FS)
Power	100W
Resolution	1mW
Accuracy	0.1%+0.1%FS
Battery Measurement	Battery Input: 0.1-150V Max. Measurement: Capacity=999AH Resolution=0.1mA Time Range=1S-16H
Dynamic Measurement	Transition List: 0-25kHZ 2.5A/μS T1&T2:60μS-999S Accuracy:+15% offset+10%FS
Current Soft- start-up time	1mS; 2mS; 5mS;10mS; 20mS; 50mS;100mS; 200mS; 500mS and 1000mS Accuracy:+15% offset+10%FS
LED Test	Press shift+p button to enter LED test. Repeat to escape the LED test. A D character shows on lower right of the display in the LED test.
Short Circuit
Constant Current (CC)	≒ 3.3A
Constant Voltage (CV)	0V
Constant Resistance (CR)	≒ 28mΩ or 200mΩ(B)
Temperature
Operating	0~40ºC
Storage	–10ºC ~ 70ºC
Weight	7.7 lbs/3.5kgs
Operating Power Supply	100V/200V, 60Hz/50Hz Manual Switch

Power Supplies/Electronic Loads Template
Watts	300 Watts
Max Current	30 A
Max Voltage	150 V
Min Current	0 A
Min Voltage	0 V
Programable	No
Battery Test	Yes
Test Equipment General Attributes
Product Weight	7.7 LBS
Product Height	15.00 IN
Product Length	10.00 IN
Product Width	15.00 IN
Shipping Weight	7.7 LBS
Country of Origin	United States
Shipping Height	15.00 IN
Shipping Length	10.00 IN
Shipping Width	15.00 IN
