• Wide Bandwidth (0.1Hz to 100 kHz).
• 0.05% basic amplitude accuracy and 0.05° phase accuracy
• 0.01% + (0.03% divided by measurement period) frequency measurement accuracy

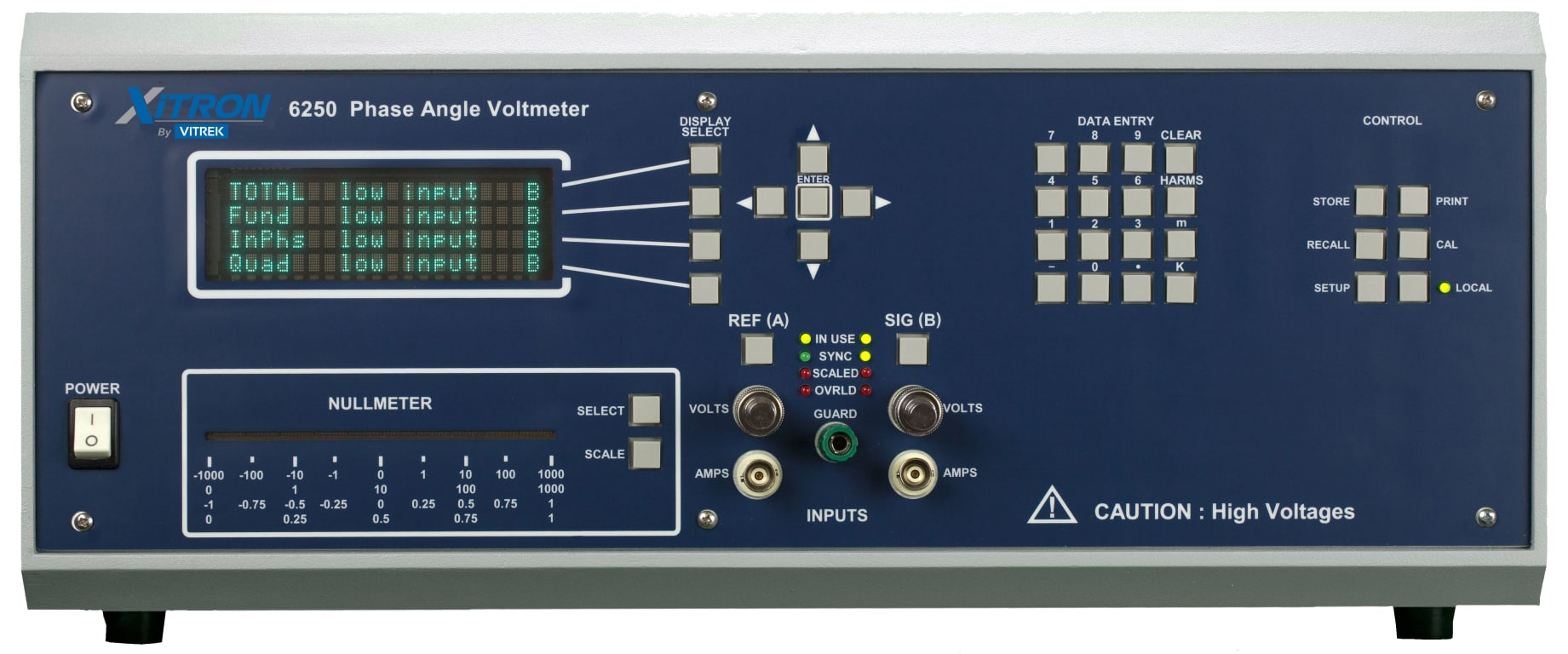

The XiTron 822-6250 is a high performance, field-proven instrument that has been trusted for over a decade. It offers an easy-to-use, pre-configured alternative to slower, older and less user-friendly technology.

The 822-6250 requires less set-up and maintenance than competing products, saving manufacturer customers down-time and loss of product throughput. Because of its simplicity, it can be used by virtually anyone who wants to access results more quickly and more reliably in critical manufacturing and testing environments.

The 822-6250 continually self-tests its internal circuitry ensuring the most accurate results possible and eliminating lengthy recalibrations. These minimal calibration requirements, coupled with field-proven superior reliability and a two-year warranty, provide a low cost of ownership.

• Transformer ratio and phase tests
• Amplifier gain and phase
• Network transfer function analysis
• Input/output impedance testing
• Wide band, high sensitivity null detection
• Phase sensitive null detection
• Attenuator linearity testing
• Harmonic analysis
• Accelerometer testing
• Phase angle measurements
• Synchro/Resolver transducer testing
• LVDT/RVDT testing
• Filter testing: Insertion loss
• Phase shift measurement of power factors
• Complex impedance phasing of servo motors & servos
• Automatic test equipment (ATE)
