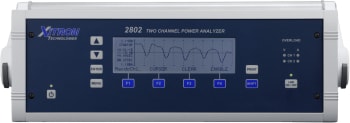

| Model: 822-2802 Specifications |
| Type |
Power Analyzer |
| Channels |
2 |
| Voltage Range (Measureable) |
2000V (850Vrms) max. continuous |
| Internal Current Range (Measurable) |
150Apk (30Arms) max. continuous |
| External Current Transducers (Measurable) |
35Vpk (15Vrms) max. continuous |

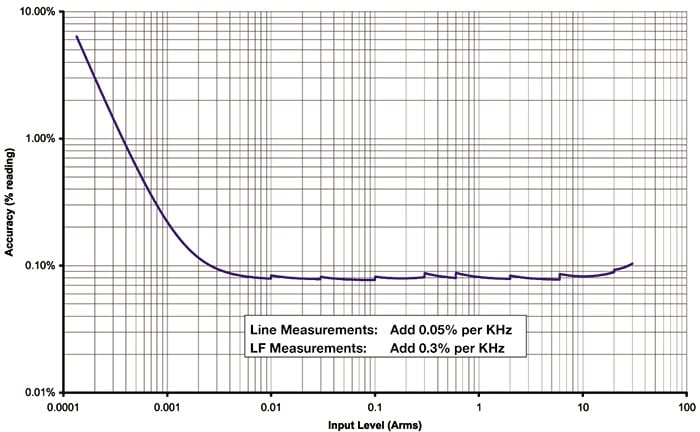

| Voltage & Current Accuracy |
See charts in the description |
| Frequency Measurement Accuracy |
0.005% |
| Crest Factor Accuracy |
V: (50mV + 0.01% of pk rng)/RMS value A: 50uA + 0.01% of pk rng)/RMS value |
| Harmonic Accuracy (Voltage & Current) |
0.02% |
| Waveforms |
Actual, Peak Capture, Distortion and Glitch Capture |

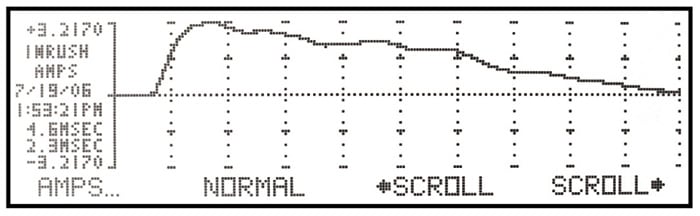

| Charts, with Zoom & Scroll |
History, Startup and Inrush |
| Line Switch |
| Max Open Voltage |
720Vpk (480Vrms) |
| Max Surge Current |
TBD |
| Max On Current |
10Arms |
| Turn On Phase |
1° resolution |
| Digital Interfaces |
GPIB (IEEE-488), USB (host and device), RS-232, Digital IO |
| Physical |
| Power Input |
12VDC @ 1.5A minimum output |
| Size |
(HxWxD) 4.7" x 13.8" x 9.5" (11.94cm x 35.05cm x 24.13cm) |
| Weight |
7.5 lbs |
| Operating Range |
0°C to 55°C, less than 95% R.H. (non-condensing) |
| Storage Range |
-20°C to 670°C, less than 95% R.H. (non-condensing) |
| Warranty |
Two Years |
