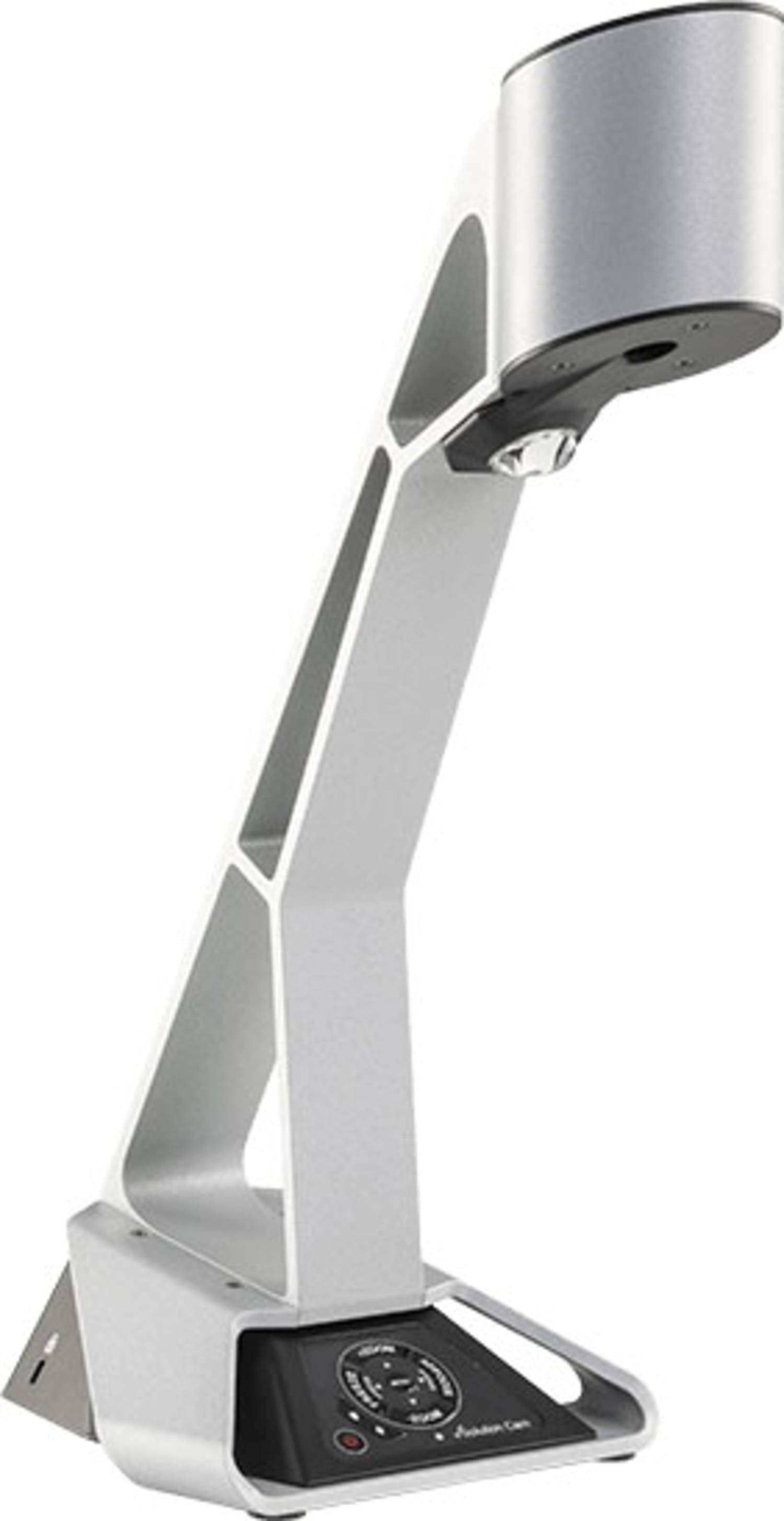

| Model: vSolution Cam Specifications |
| Description |
vSolution Cam System |
| Camera |
1-CMOS 1/3" |
| Pictures per second (as picked up by the camera) |
30 frames (in all resolutions) |
| 2D / 3D imaging |
2D |
| Effective pixels of camera sensor |
4224 x 3136 = 13.2MP |
| Pixels processed per second |
289,800,000 |
| Color reproduction / precision |
very good colors (sRGB color precision) |
| Converted Widescreen output signals (16:9) |
1080p HD (1920x1080), 720p HD (1280x720) |
| Image resolution |
980 (Ø measured resolution) |
| Brightness control |
Automatic (manual in on-screen menu) |
| White balance adjustment |
Automatic and manual |
| Autofocus/speed |
Yes, continuously working, high speed |
| Manual focus |
Yes |
| On-screen menu and on-screen help |
Yes |
| Firmware updates via |
USB, LAN |
| Lens type |
Wide angle, f=3.81 |
| Zoom |
4x HD zoom (10x extended digital zoom, selectable in settings) |
| Maximum object height on pick-up area |
240mm (9.45") |
| Maximum object height on pick-up area (with optional Riser Plate) |
290mm (11.42") |
| Maximum size of pick-up area |
Length: 268mm (10.55"), Width: 362mm (14.25") |
| Maximum size of pick-up area (with optional Riser Plate) |
Length: 311mm (12.24"), Width: 419mm (16.50") |
| Min. size of pick-up area |
39,5mm (1.56") x 22mm (0.87") |
| Min. size of pick-up area (with optional Riser Plate) |
45.5mm (1.79") x 25mm (0.98") |
| Depth of focus on small object: 66 x 36mm (2.6” x 1.4”) |
60mm (2.4“) |
| Depth of focus on large object: 350 x 196mm (13.78” x 7.72”) |
100mm (3.9“) |
| Riser Plate to increase camera height above pick-up area |
Optional |
| Light source |
Maintenance-free, high-brightness LED light system (high light output, low power consumption), lamp lifetime: 30,000 hours |
| vSolution Link (USB/LAN, for controlling, image and video capturing, and firmware updates) |
Included (for 32 and 64-bit Windows, Twain/WIA compatible) |
| UVC compatible (Windows, Linux & Mac OS) |
Yes |
| vSolution Cynap compatible |
Yes |
| vSolution Control compatible |
Yes |
| Reflection-free pick-up area |
Yes |
| Special working surface for transparencies |
With optional working plate |
| Slide pick-up |
With optional lightbox |
| Bottom light |
With optional lightbox |
| Image memory |
1 image freeze |
| Connectors |
1x HDMI out, IP addressable LAN port (with PoE), mini USB 2.0 device port, USB 2.0 host port |
| Lan web interface |
Yes |
| Output |
HDMI (DVI output via optional HDMI-DVI adapter cable) |
| Advanced controlling with professional protocol |
Yes, via LAN and USB |
| RS232 port |
- (if required, external LAN to RS232 adapters can be used) |
| Anti-theft devices |
T-Lock (Kensington® Lock), and table lock bolt |
| Dimensions in operation (L x W x H) |
264mm x 165mm x 399mm (10.4“ x 6.5“ x 15.7“) |
| Weight |
1.65Kg (3.6lbs) |
| Operating temperature/relative humidity |
0°-40°C (32°-104°F) / 40-60% RH |
| Power |
External desktop power pack 12V DC: multi-range 100-240V AC, 24W, Power over Ethernet compatible (IEEE 802.3af-2003 standard) |
| WLAN (Dual-band stick for 2.4GHz & 5GHz) |
Optional |
| Included accessories |
Power supply with cord 1,8 m (5’11”), User manual (online) |
| Optional accessories |
Riser Plate, Dry-erase Working Surface, RS232 adapter, HDBaseT transmitter, Lightboxes |
| Warranty |
5 years (USA 3 years, with option to extend to 5 years) |
| Made in |
EU / Austria |
