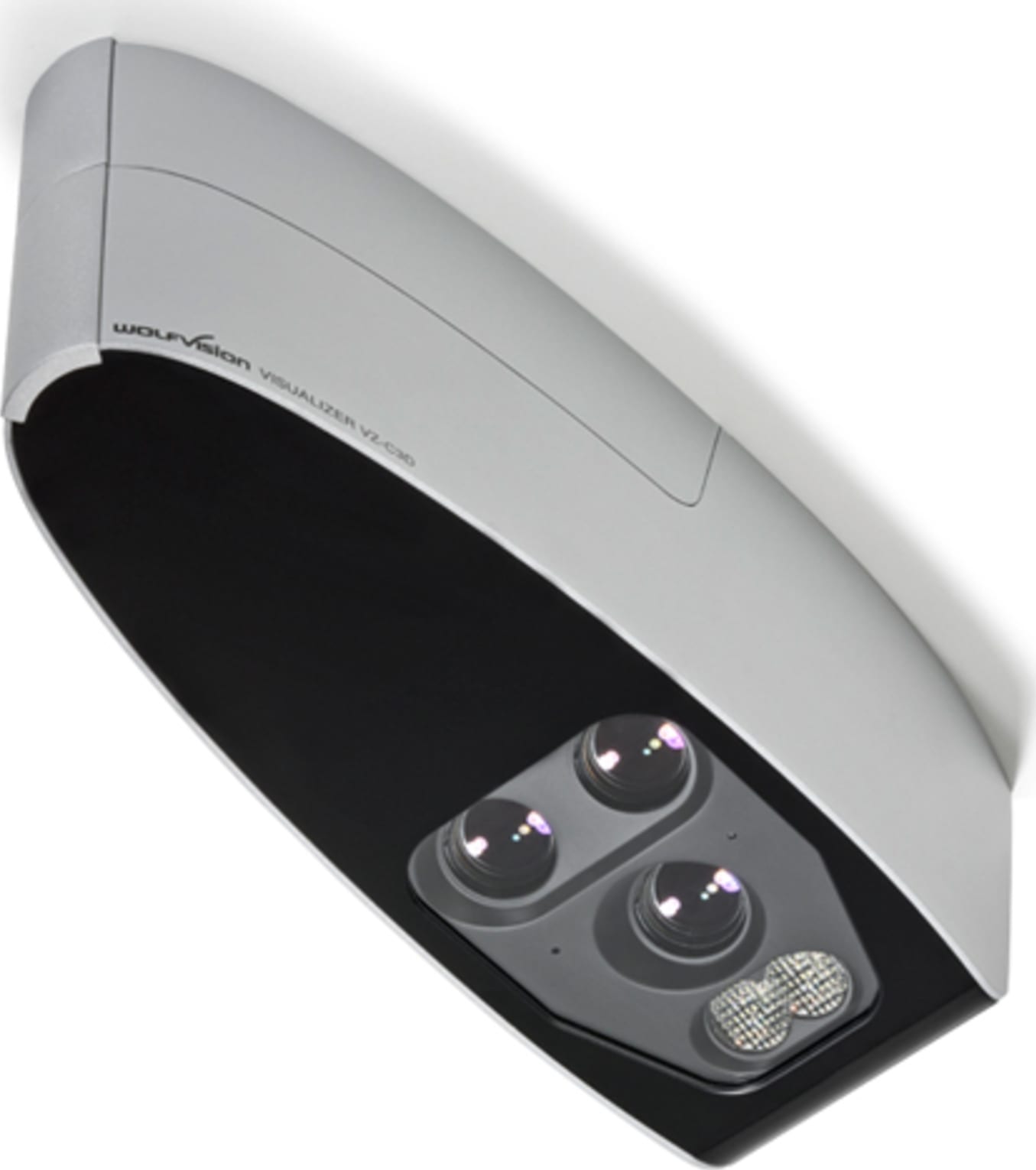

| Model: VZ-C3D Specifications |
| Camera |
2 x CMOS 1/3" |
| 2-dimensional / 3-dimensional |
2D and 3D |
| Pictures per second (as picked up by the camera) |
30 frames per second in 2D and 3D mode (in all resolutions) |
| Native (effective Pixels of camera sensor) |
2 x 1920 x 1080 (=2 x 2,073,600) |
| Native pixels of image processing |
2 x 1920 x 1080 (=2 x 2,073,600) |
| Pixels processed per second (=effective pixels x frames per second) |
124,416,000 |
| Color reproduction / precision |
very good colors (sRGB color precision) |
| Native signal output |
1080p HD (1920 x 1080) in 2D/3D mode, with 3D modes: frame packing, top and bottom, side by side, and page flip |
| Resolution (measured) |
980 lines |
| Iris |
automatic and manual |
| White balance adjustment |
automatic and manual |
| Autofocus / speed |
Auto |
| Manual focus |
yes |
| Synchronized lightfield (for easy positioning of objects) |
yes |
| On screen menu with Help |
yes |
| Firmware Updates via |
LAN |
| Zoom / Lens |
2 camera wide angle zoom lenses and 1 light zoom lens (12x optical zoom) |
| Max object height on working surface |
no limit |
| Max. pick-up area on working surface |
depending on installation height |
| Min. pick-up area on working surface |
depending on installation height |
| Min. pick-up area on working surface (with digital zoom) |
depending on installation height |
| Depth of focus on small object (42x33mm) |
larger than 20mm (0.8") |
| Depth of focus on large object (360x270mm) |
larger than 250mm (9.7") |
| Shadow free illumination |
yes |
| Illumination of hollow objects |
yes |
| Blinding of audience or speaker |
none |
| Light source |
Maintenance free high-brightness LED light system (high light output, low power consumption), lamp lifetime: 30,000 hours |
| Connectivity Software (USB/LAN, for controlling, image and video capturing and firmware updates) |
included for 32- and 64-bit Windows + Macintosh, Twain/WIA compatible, with video capture driver |
| Reflection free area on working surface |
whole working plate |
| User programmable presets |
3 |
| Special working surface for transparencies |
yes (special working plate included) |
| Slide pick-up |
with optional lightbox |
| Bottom light |
optional external lightboxes (extremely large models like WolfVision's LB-38 can be used) |
| Advanced WolfVision image processing engine |
yes |
| DVI output |
- (via optional HDMI-DVI cable or adaptor) |
| HDMI output |
yes |
| Ethernet/LAN port, IP-addressable |
yes, 10/100 Mbps |
| LAN-features |
multicast and singlecast streaming, authentication etc :yes |
| RS232 port |
- (if required external LAN to RS232 adaptors can be used) |
| Advanced controlling with professional protocol |
yes – via LAN |
| Dimensions (L x W x H) |
478mm x 150mm x 178mm (18.8" x 5.9" x 7.0") |
| Weight |
5.2kg (11.5lbs) |
| Infrared remote control |
yes (with laserpointer), internal and external receiver (with 10m cable and status LED) |
| Smartphone remote compatible (incl Image Preview) |
yes |
| Anti-theft device |
T-Lock (Kensington® Lock) |
| Ceiling mount |
included |
| Power |
Internal power supply, multi range 100-240 V, 65W, power consumption: 39W |
| Warranty |
5 years |
