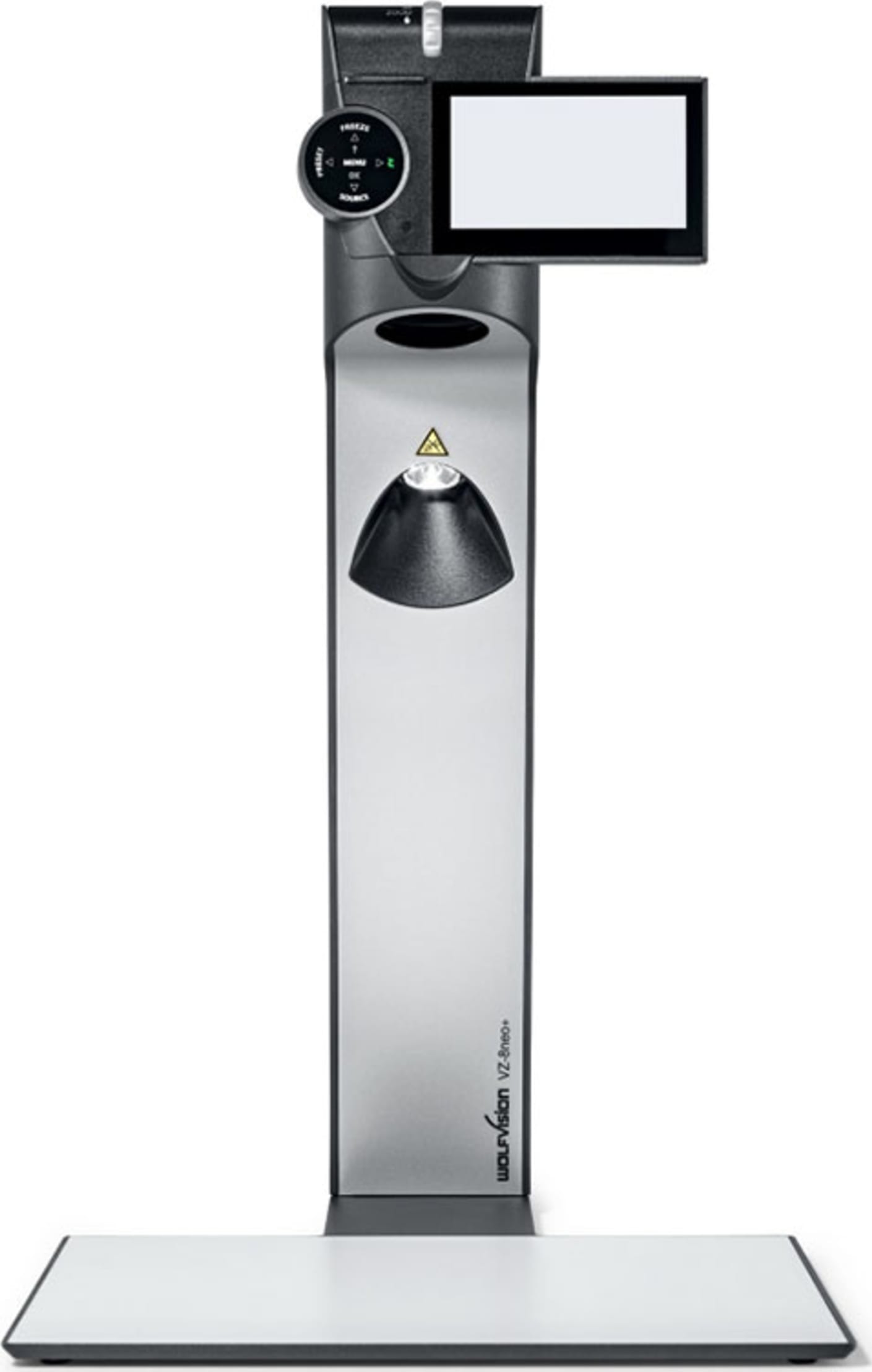

| Model: VZ-8neo+ Specifications |
| Description |
Desktop Visualizer |
| Camera |
1-CMOS 1/3" |
| Pictures per second (as picked up by the camera) |
60 frames in all resolutions |
| Effective pixels (pixels actually used for image information) |
1920x1080 (2,073,600) |
| Total pixels of camera sensor |
2,073,600 |
| Pixels processed per second (effective pixels x frames per sec) |
124,416,000 |
| Color reproduction / precision |
Very good colors (sRGB color precision) |
| Native signal output |
1080p HD (1920x1080) |
| Converted output signals (4:3 and 5:4) |
UXGA (1600x1200), SXGA (1280x1024) XGA (1024x768), SVGA, (800x600) |
| Converted widescreen output signals (16:9 and 16:10) |
720p HD (1280x720), WUXGA (1920x1200), WXGA (1280x800) |
| Resolution (measured) |
980 lines |
| Brightness control |
Automatic and manual |
| White balance adjustment |
Automatic and manual |
| Autofocus / Speed |
Yes (continuously working, high speed) |
| Manual focus |
Yes |
| Built-in LCD preview monitor |
Yes |
| On-screen menu and on screen help |
Yes |
| Firmware Updates via |
USB, LAN, USB stick |
| Zoom / Lens |
24x zoom (12x optical, 2x digital) variable-speed zoom wheel |
| Lens type |
Wide angle, 57mm, f4.7 |
| Max object height on working surface |
120mm (4.7") in tele position 320mm (12.6") in wide position |
| Max. pick-up area on working surface |
Length: 290mm (11.42") / Width: 400mm (15.75") |
| Min. pick-up area on working surface (in full resolution with optical zoom) |
33 x 26mm (1.3" x 1.0") |
| Min. pick-up area on working surface (with digital zoom) |
16 x 12mm (0.6" x 0.5") |
| Depth of focus on small object: 66 x 36mm (2.6" x 1.4") |
10mm (0.4") |
| Depth of focus on large object: 360 x 270mm (14.1" x 10.6") |
260mm (10.2") |
| Light source |
Maintenance-free high-brightness LED light system (high light output, low power consumption), lamp lifetime: 30,000 hours |
| vSolution Link (USB/LAN, for controlling, image and video capturing, and firmware updates) |
Included (for 32 and 64-bit Windows and Macintosh, Twain/WIA compatible) |
| UVC driver for Windows, Linux, and OS X (Mac) |
Yes |
| vSolution Cynap compatible |
Yes |
| Reflection-free area on working surface |
Whole working surface |
| Intelligent folding system |
Mechanical arm |
| User defined settings on USB stick |
Yes |
| User programmable presets |
3 |
| Swivel plate with 90° rotation |
Optional |
| Special working surface for transparencies |
Yes (not included with optional swivel plate version) |
| Dry-erase working surface |
Optional |
| Slide pick-up |
With optional lightbox |
| External computer input / Input switch |
Yes, HDMI (DVI via optional adapter cable) |
| Seamless cross-fading between image sources |
Yes |
| Live to Freeze Comparison (Picture in Picture) |
Yes |
| Built-in digital scaler for the computer input |
Yes (processes the signal from HDMI input for HDMI output) |
| Image memory |
9 pictures in internal memory + unlimited number on USB-stick |
| Alternative Image display |
Negative image / negative-blue image / black and white image |
| Connectors |
1x HDMI in, 1x HDMI out, IP addressable LAN port, USB 2.0 mini device port (incl. PTP and UVC), USB 2.0 host port, |
| Audio |
Yes, line in, line out |
| Output |
HDMI (DVI output via optional HDMI-DVI adapter cable) |
| Ethernet / LAN port |
Yes, with PoE+ |
| LAN streaming modes (multicast and unicast) |
Yes, RTP H.264 + audio, RTP Motion JPEG + audio, Motion JPEG |
| LAN web interface |
Yes |
| Integrated WLAN (dual band stick for 2.4GHz & 5GHz) |
Optional via BYOD feature pack |
| Infrared remote control |
Yes |
| RS232 port |
- (if required external LAN to RS232 adapters can be used) |
| Advanced controlling with professional protocol |
Yes, via LAN and USB |
| Dimensions in operation (L x W x H) |
488mm x 305mm x 525mm (19.2" x 12" x 20.7") |
| Dimensions when folded (L x W x H) |
574mm x 305mm x 135mm (22.6" x 12" x 5.3") |
| Weight |
3.96Kg (8.74lbs) |
| Anti-theft devices |
T-Lock (Kensington® Lock), and table lock bolt |
| Power |
External desktop power pack 12V: multi range 100-240V, 24W, Power over Ethernet Plus (IEEE 802.3at-2009 standard) |
| Included accessories |
Cable shield, power supply with cord 1.8m (5’11"), LAN cable 1.8m (5‘11"), Mini USB cable 1.8m (5‘11"), HDMI cable 1.5m (4‘11") |
| Warranty |
5 years |
