Wohler VIS350 PLUS - VIS 350 Plus Service Camera with Detachable 1 1/2 " and 1" Camera Heads NTSC

Name: Wohler VIS350 PLUS - VIS 350 Plus Service Camera with Detachable 1 1/2 " and 1" Camera Heads NTSC
Brand: Wohler
SKU: WohlerVIS350 PLUS
Price: 6999.00 USD
Availability: InStock

0 reviews | Catalog: 8927 | Model: Wohler VIS350 PLUS

Images (4) | Videos (4)

Compare

VIS 350 Plus Service Camera with Detachable 1 1/2 " and 1" Camera Heads NTSC

For visual inspection of sewer and water pipes, drain and flue lines, duct work and much more
Includes 1.5” color pan/tilt camera, 1” color camera
Optics pan 360° and tilt 180° providing maximum movement radius and insures even the smallest damage is not hidden from your view
Store video footage and photos on a 2 GB SD card
Camera head with integrated transmitter facilitates camera head location detection with optional Wohler L 200 Locator
Digital position and angle of the camera head displayed on the monitor
Home function aligns the camera head to a straight position - display parallel to the ground above
Illuminated, color camera head, 2" in length and 1.5" in diameter, easily negotiates tight bends
Electronic meter counter in increments of 0.10 ft. displayed on the monitor
Bright TFT color monitor (tiltable and removable) supplies

View Product Details

List Price: $8,046.00

Your Price: $6,999.00

Sign-in for GSA and EDU Pricing!

In Stock:

View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series



Product	Wohler VIS350 PLUS VIS 350 Plus Service Camera with Detachable 1 1/2 " and 1" Camera Heads ...	Wohler VIS350 PLUS WITH LOCATOR VIS 350 Plus Inspection Camera with 1.5" & 1" and Camera H ...	Wohler VIS350 DETACHABLE VIS 250 Inspection Camera with 1.5" Camera Head	Wohler VIS350 FIXED Wohler VIS350 Service Camera Fixed Camera Head 100 feet NTSC
Price
In Stock
Shaft Length	100 Ft (1200 IN)	100 Ft (1200 IN)	100 Ft (1200 IN)	100 Ft (1200 IN)
Shaft Diameter	0.33 IN (0.025 M)	0.33 IN (0.025 M)	0.33 IN (0.025 M)	0.33 IN (0.025 M)
Screen Size	7 IN	7 IN	7 IN	6 IN
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Wohler VIS350 PLUS

For visual inspection of sewer and water pipes, drain and flue lines, duct work, and much more
Includes 1.5” color pan/tilt camera, 1” color camera
Optics pan 360° and tilt 180° providing maximum movement radius and ensures even the smallest damage is not hidden from your view
Store video footage and photos on a 2 GB SD card
Camera head with integrated transmitter facilitates camera head location detection with optional Wohler L 200 Locator

VIS 350 Plus Service Camera with Detachable 1 1/2 " and 1" Camera Heads NTSC

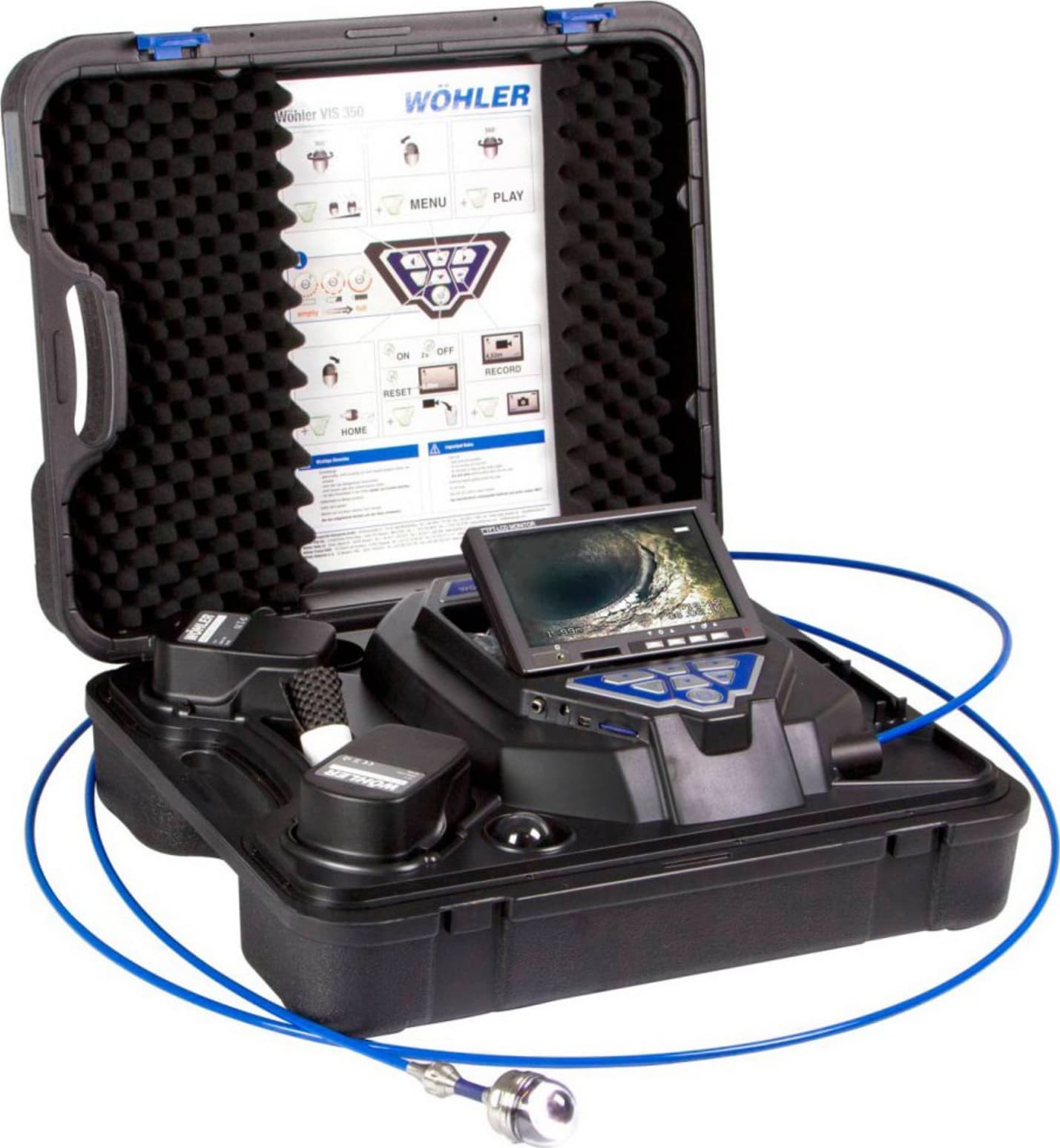

Visual inspection in a case: With the new Wohler VIS 350 Plus camera system, you not only have everything you need to inspect waste water pipes, flue gas, ventilation lines and industrial piping - you can also precisely locate the damage and accurately document the results of the inspection.

Wohler VIS 350 NTSC Visual Inspection System with two camera heads
Detachable pan and tilt color camera head 1.5" dia, V2 NTSC
Detachable miniature color camera head 1" diameter, incl. guidance sleeve
Guidance ball for push rod
2 GB SD card and mini USB cable
7" TFT color monitor
6 ft. connection cable (removable monitor)
100 ft. push rod 0.26“ dia
5 plastic domes
1 anti-slide mat
2 NiMH batteries with charger
Heavy duty carrying case

TECHNICAL DATA
Monitor
Dimensions housing	7" x 4.5" x 1.3"
TFT-Display	7" / 16:9 format
Video-Out	FBAS signal
Weight	1 lbs
Power Supply
Power supply	Space for 2 rechargeable batteries, each 12 V or via power pack
Battery operating time	Max. 2 rechargeable batteries, each 120 mins. = 4 h (battery status in display)
Pan & tilt 1.5" dia color camera head
Type	1/3" COLOR CMOS
Pixels	656 x 492 (NTSC)
Light sensitivity	0.5 Lux
Lens	f = 0.09", F = 2.5
Viewing angle	115°
Light source	12 white LEDs
Degree of protection	Waterproof to IP 67
Dimensions	1 1/2" dia x 2"
Operating temperature	32...104 °F, RH 95 % MAX
Storage temperature	-4...122 °F, RH 95 % MAX
Locator transmitter
Transmission frequency	8.9 kHz
Push rod
Length	100 ft.
Diameter	0.33"
Plastic case
Dimensions	20" x 17" x 7" (l x w x h)
Weight	18 lbs
Distance measurement
Wohler VIS 350 / VIS 300	Electronic meter counter
Locator receiver
Display	Graphic visualization of transmitted position
Output impedance
Headphones	32 Ohm
Power supply	12 V MiMH battery (rechargeable)
Operating temperature	32...104 °F
Storage temperature	14 °F...104 °F
Weight	1.3 lbs
Dimensions	13" x 6" x 3" cm (l x w x h)
Memory
Recording	4 GB SD card (2.5 h recording capacity)
Interface	Mini USB port

Borescopes / Boroscopes/Video Borescopes Template
Shaft Length	100 Ft (1200 IN)
Shaft Diameter	0.33 IN (0.025 M)
Screen Size	7 IN
Screen Type	TFT LCD
Video Output Format	NTSC
Test Equipment General Attributes
Country of Origin	Germany
