Wohler 4153 - VIS 400 Visual Inspection System Reel Kit ×

Bottom-up chimney inspection Inspection of vents and flues 2" color pan & tilt camera head Additional LEDs - "high beam" setting Modular system Available with push rod or video cable On-screen digital distance measurement

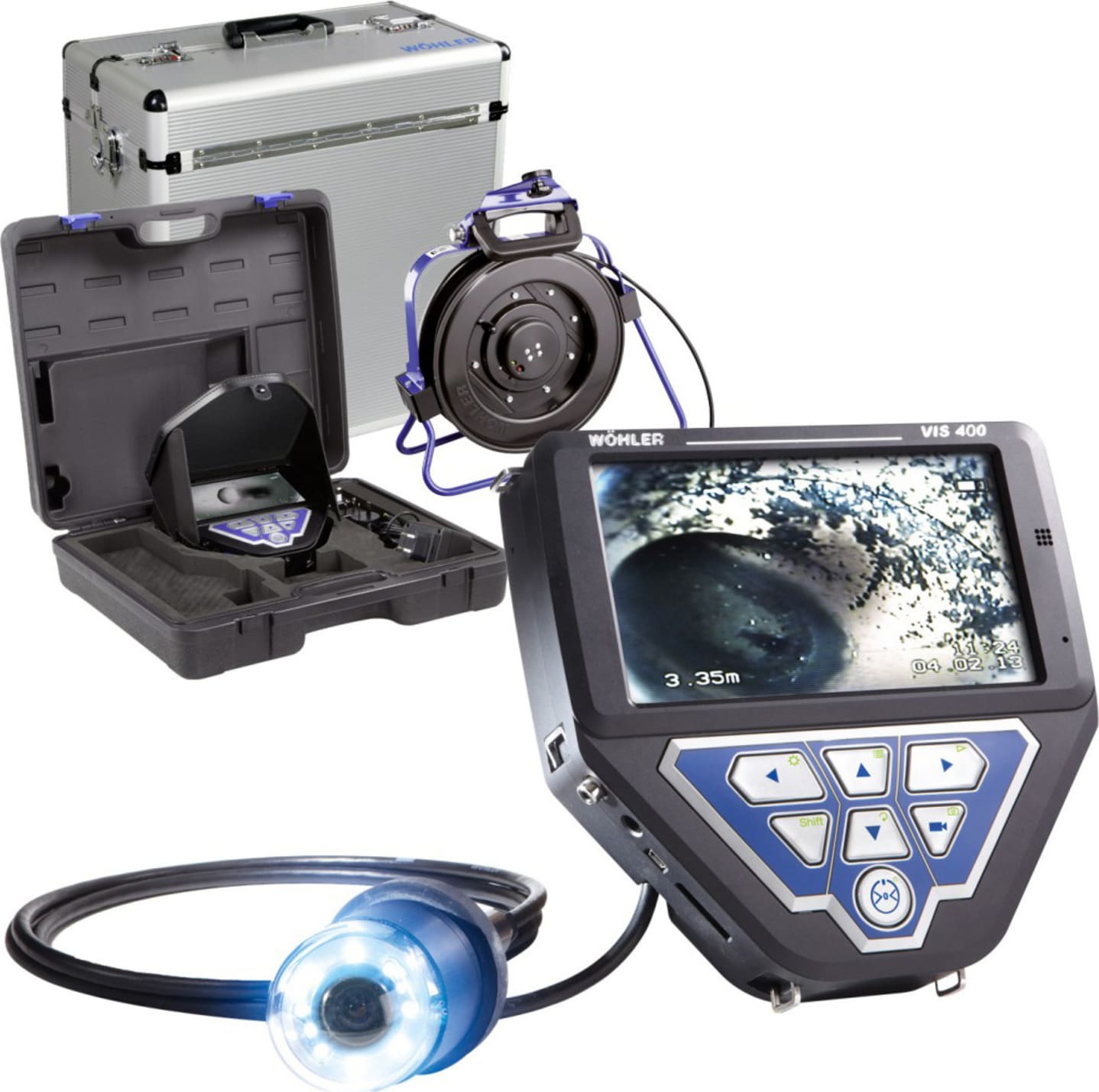

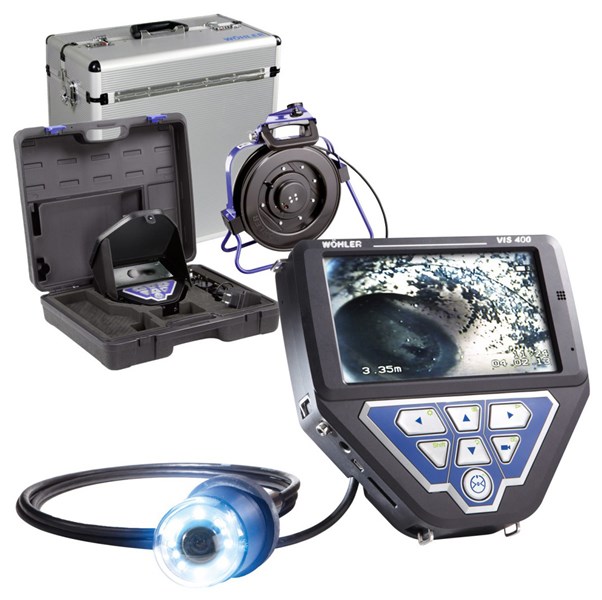

The Wohler VIS 400 Reel Kit is designed for bottom up chimney inspection, and inspection of vents and flues.

Modular by design, it is possible to combine the Wohler VIS 400 Visual Inspection System with a variety of camera vipers, camera cable and camera heads. For instance, simply connect either the Wohler 2" diameter or the 1.5" diameter pan & tilt camera head to carry out a variety of inspections. Both of these cameras pan 360 and tilt 180 while offering the best possible lighting. After panning and tilting, the home function automatically aligns the angle of the 1.5" diameter color camera to straight ahead with a simple push of a button.

View, speak and save

The Wohler VIS 400 will make a video recording of the inspected line run. When damage is discovered, begin the voice recording function to annotate the recording. As well as recording video, you may also take and save still photos at the press of a button.

Knowing where really matters

To be able to assess and specifically target repair work, we at Wohler have perfected the technique of precisely locating the camera head. The distance and the position of the head are displayed on the monitor. The top and bottom of the pipe are displayed on the monitor at all times, even if the camera is being guided up or down or if it is moving left or right. It is even possible to locate the 1.5" diameter color camera head wirelessly - utilizing the new Wohler L 200 Locator.

Overview of Functions

	Wohler VIS 250 Visual Inspection System	Wohler VIS 350 Visual Inspection System	Wohler VIS 400 Modular Visual Inspection System
APPLICATIONS
Dry environments - e.g. Flue Gas Systems:
5" dia or larger		• (1)	•
4" dia to 5" dia	•	•	•
3" dia to 4" dia	•	•	•
1.5" dia to 3" dia	•		•
Wet environments - e.g. Waste Water Pipes:
5" dia or larger		• (4)	•
3" dia to 5" dia	• (4,5)	• (4)	•
1.5" dia to 3" dia	• (4,5)		•
Twin walls, cavaties, ducts		•	•
FEATURES
Video Memory	2 GB SD-Card (VIS 250)	2 GB SD-Card (VIS 350)	2 GB SD-Card
DM = Digital Meter Counter (Increments of 0.10 ft)	DM	DM	DM with Camera Viper or Cable Reel
Video Output	RCA	RCA	RCA
Built-in sonde for location (8.9 kHz)	with Wohler L 200 Locator	with Wohler L 200 Locator
Audio recording			•
TECHNICAL DATA
Monitor:
Display	7" TFT	7" TFT	7" TFT
Battery Voltage & Technology / Main Supply	1 x 12 V NiMH battery (Space to store 2 rechargeable NiMH batteries) / Main Supply	2 x 12 V NiMH batteries / Main Supply	1 x 12 V NiMH battery / Main Supply
Operation Time with batteries	1 x 120 min = approx. 2 h	2 x 120 min = approx. 4 h	approx. 2 h
Camera Head:
Dimensions	1" x 1.5"	Ø 1.5" x 2.4"
Pan-and tilt range		360° / 180°
Protection class	IP 68 (5)	IP 67
Field of View (FOV)	120°	120°
Lighting	12 x LED white	12 x LED white
Cable/Push Rod: Length/Diameter	100 ft, 0.25" dia	100 ft, 0.25" dia
Total Dimensions	20" x 17" x 7"	20" x 17" x 7"	8" x 8" x 1.6" (without bag)
Weight	18 lbs	18 lbs	2.6 lbs (without bag)

(1) top down and bottom top inspection (2) limited use in bends (3) with roller guide, see accessories; splash water proof only (4) recommended for wet applications; (5) waterproof up to 6.5 ft of water
