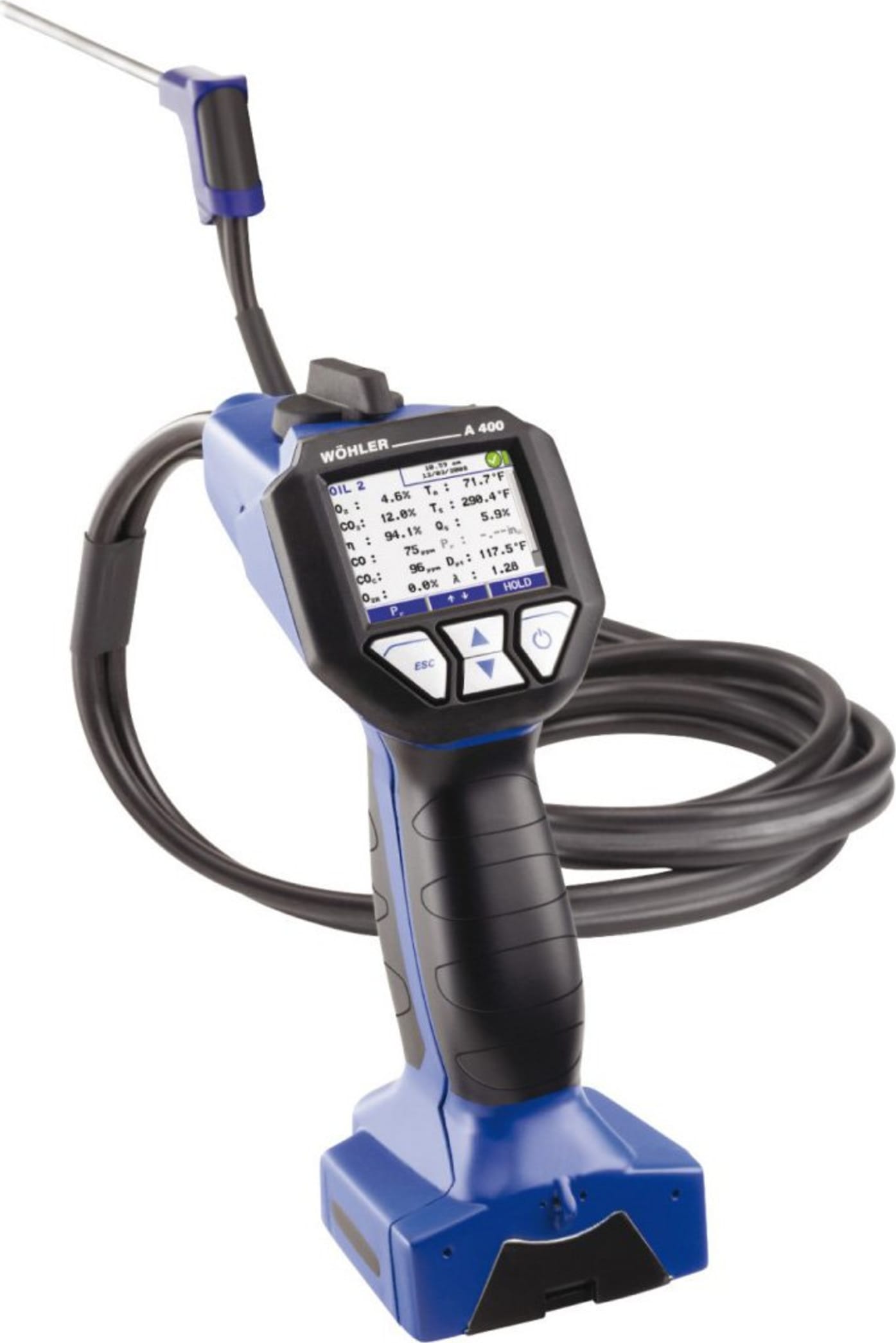

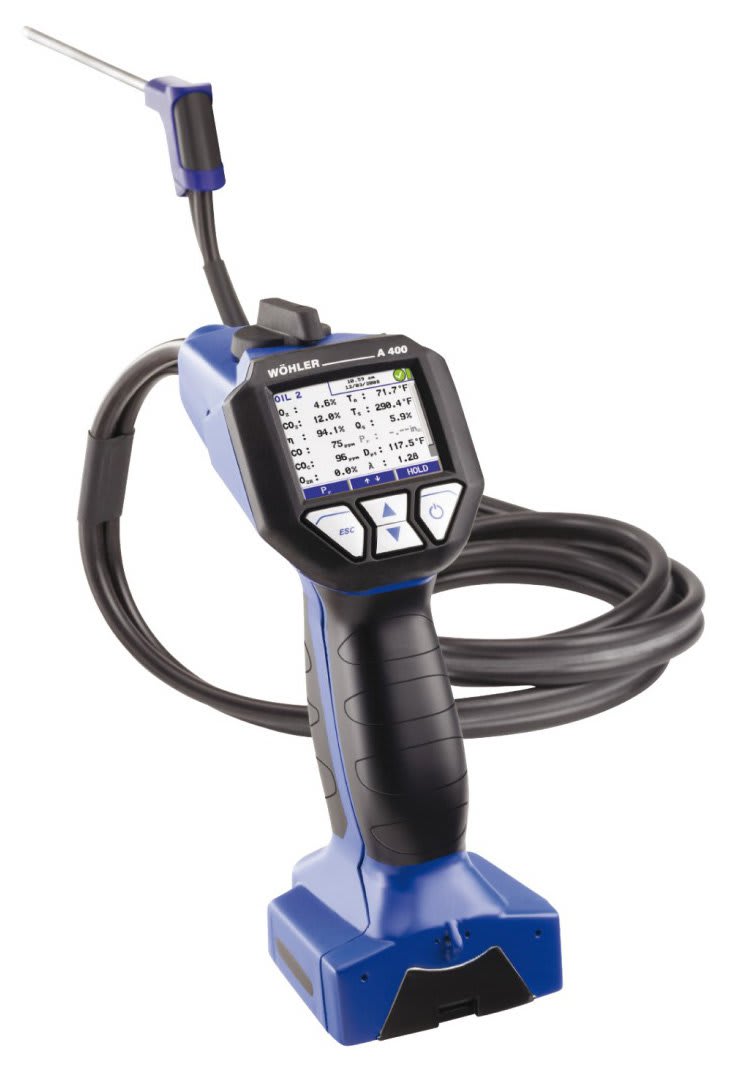

Wohler A 400 PRO Set 1 - Flue Gas Analyzer, Standard Package

Name: Wohler A 400 PRO Set 1 - Flue Gas Analyzer, Standard Package
Brand: Wohler
SKU: WohlerA 400PRO-1
Price: 1701.00 USD
Availability: InStock

0 reviews | Catalog: 3356 | Model: Wohler A 400PRO-1

Compare

Wohler A400 PRO Standard

Multifunctional Combustion Analyzer for residential and light commercial applications
LT-sensors (full 4 year warranty including sensors)
Ergonomic shape: one hand operation with a 4 button key pad
Brilliant OLED full color display technology
Multi-functional: combustion and efficiency analyzer, ambient CO tester, flue gas CO tester (CO air free), differential manometer
Integrated smart filter technology
Condensate control with LED warning light
Continuous self-diagnosis with feedback
Sensor diagnostics

View Product Details

List Price: $1,890.00

In Stock:

View Payment Options

Recommended for you

Wohler A 400 PRO Set 1 - Flue Gas Analyzer, Standard Package

Multifunctional Combustion Analyzer for residential and light commercial applications
LT-sensors (full 4 year warranty including sensors)
Ergonomic shape: one hand operation with a 4 button key pad

The Wohler A 400 PRO Flue Gas Analyzer is a multi-functional combustion analyzer (flue gas, differential pressure, ambient CO) for residential and light commercial applications. Its unique design allows a comfortable one-hand operation with a technician-friendly 4 button key pad. Integrated magnets make even a hands-free operation possible. Your eyes will love the brilliant full color OLED display which shows all combustion values on one screen. The self-diagnosis function with an alarm makes this combustion analyzer reliable and fail safe. Wohler provides a full 4 year warranty for this gas analyzer and LT-Sensors.

Safety / Reliability

Integrated 4-filter technology including water stop filter, cotton filter, sample conditioner and sensor protection LT-sensors
Full 4 year warranty on instrument including sensors
Continuous self-diagnosis with feedback for:
- All sensors
- Instrument functions
- Condensate

Wohler A 400 PRO Technical Data
Oxygen (O2)
Sensor type	electrochemical
Range	0.0...21.0 Vol.-%
Resolution	0.1 Vol.-%
Accuracy	± 0.3 Vol.-%
Carbon monoxide (CO)
Sensor type	electrochemical
Range	0...4,000 ppm
Resolution	1 Vol.-ppm
Accuracy	± 5 % f.m., absolute ±20 ppm
Nitric oxide (NO)
Range	0...1,000 ppm
Resolution	1 Vol.-ppm
Accuracy	± 5 % f.m., ± 5 Vol.-ppm (<100 ppm)
Draft / Differential Pressure (PD)
Unit	inWC / psi / Pascal / mbar
Range	± 40 inWC
Resolution	0.004 inWC
Accuracy	± 2 % f.m., absolute ± 0.020 inWC
Flue Gas Temperature (TS)
Unit	°F / °C
Sensor type	thermoelement (NiCr-Ni)
Range	-4 °F...1,472 °F
Resolution	0.2°F
Accuracy	32...257 °F: ± 4 °F; 257...482 °F: ± 6 °F; 482...752 °F: ± 8 °F; 252...1472 °F: ± 1.5 % f. m.
Supply Air Temperature (TA)
Unit	°F / °C
Sensor type	emiconductor (Si-PTC-Ni)
Range	-4 °F...248 °F
Resolution	0.2 °F
Accuracy	±2 °F
Calculated Values
Effc. / SL	efficiency and losses calculated in accordance to ASME standards
ETA / QS	efficiency and losses calculated in accordance to EN European standards
CO₂ in Vol.-%	range O – CO₂max, resolution 0.1%
COc	CO concentration (CO_corrected) air free, adjustable O₂ reference level
Dew point	in °C/°F
λ / EA	Lambda (theoretical air), Excess Air
m_COND	condensate quantity in condensing conditions
Work temperature	+41 °F...104 °F to meet specifications
Storage temperature	-4 °F...122 °F
Battery lifetime	AA batteries > 10 h (NiMH, 2000 mAh)
Weight	1.4 lbs.
Size	8" x 3.3" x 8.7" (without probe)
Length cable-hose	67"

Gas Detection/Combustion Gas Analyzer/Environ Analyzer Template
Style (Gas Detection)	Hand-Held
O2	Yes
Primary Air Temperature	Yes
Pressure (Draft)	Yes
O2 PPM Minimum	0.0 PPM
O2 PPM Maximum	21 PPM
Temperature Operating Min	5 C (41 Degrees)
Temperature Operating Max	40 C (104 Degrees)
Test Equipment General Attributes
Warranty	4 YEARS
Safety Approval	CE
Interfaces I/O	IR
Product Weight	640 GRAMS (1.41 LBS)
Product Height	85 MM (3.35 IN)
Product Length	205 MM (8.07 IN)
Product Width	85 MM (3.35 IN)
Power Supply Voltage	Battery Powered
Country of Origin	Germany
Shipping Height	6.50 IN
Shipping Length	20.50 IN
Shipping Width	17.50 IN

Start typing your question...

Answers (1) - Asked by Anonymous

I have this question too (0)

These packages all include the A 400 PRO flue gas analyzer, but come different sets of accessories. Please see below for a list of the main components with each: A 400 PRO-1 •Wohler A 400 PRO USA •Probe/hose assembly •Disposable batteries •Water stop filter •25 cotton filters •Heavy duty carrying case A 400 PRO-2 •Wohler A 400 PRO USA •Probe/hose assembly •Rechargable batteries •Charger •Water stop filter •25 cotton filters •Cone •Air temperature probe •Wohler TD 100 Thermal Printer •Heavy duty carrying case A 400 PRO-3 •Wohler A 400 PRO USA •Probe/hose assembly •Rechargeable batteries •Charger •Water stop filter •25 cotton filters •Cone •Air temperature probe •Wohler TD 100 Thermal Printer •Wohler RP 72 Smoke Test Kit •Heavy duty carrying case

I found this helpful (0)

Inaccurate? (0)

Answered by Anonymous
