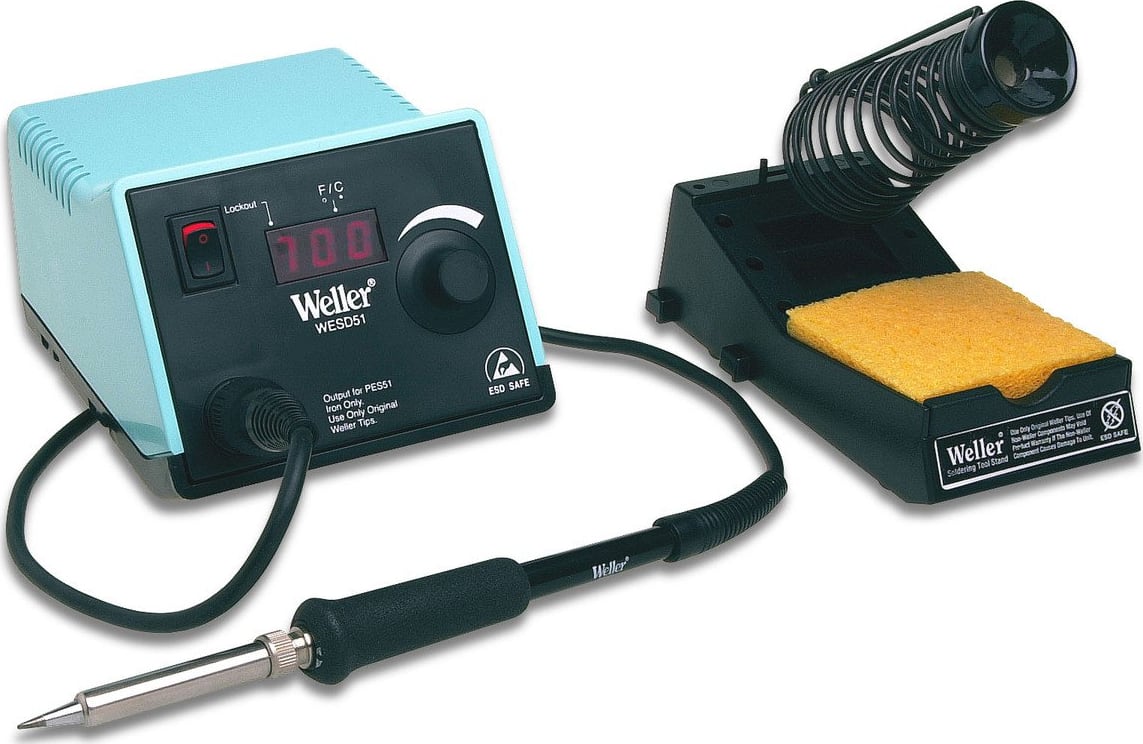

Digital Soldering Station; Power Unit, Soldering Pencil, Stand, Sponge
The Weller Advantage
- Innovative heater and sensor combination gives you quick heat-up and rapid temparature recovery.
- Wireless temparature lockout to prevent operators from raising the temparature to levels higher than specified for the board or component. Gives you control over the process.
- Station automatically powers down after 90 minutes of inactivity to prolong tip life and save power.
- Applications: Production, rework, and repair of through the hole and SMT boards. Most ground planes and multi-layer boards.
The WESD51 Soldering Station is one in a series of products, which have been developed for industrial manufacturing as well as for the rework and repair sector. Microprocessor control and a digital display allow for simple and easy operation. The digital electronic control system offers excellent control performance for various soldering jobs.
A digital readout, grounded soldering iron tip, zero power switching and anti-static design of the station and tool allow the WESD51 Soldering System to meet the high quality standards established by Weller. The station features an external tip temperature "Offset", selectable between Degrees "F" and Degrees "C", and the ability to "Lock" the tip temperature setting using the PW50 Probe (supplied). The station will automatically enter a sleep mode and shut off power to the tool and digital display, after 99 minutes of inactivity.
Tip temperature is adjustable in the range of 350°F to 850°F (177°C to 454°C), with the front panel temperature control knob. The "Lockout" function will be indicated by a single "Decimal Point" in the upper left hand corner of the MSD (Most Significant Digit), when the station is "Locked". The station can also be switched between Degrees "F" and Degrees "C". The station is represented in the Degrees "C" mode, when the single "Decimal Point" in the upper left hand corner of the LSD (Least Significant Digit) of the display, is illuminated. An "Offset" feature is offered and is indicated by a single "Decimal Point" in the upper left hand corner of the MD (Middle Digit), of the display. (See Individual Operating Instructions for details). This soldering station meets all applicable standards for the CE mark.
