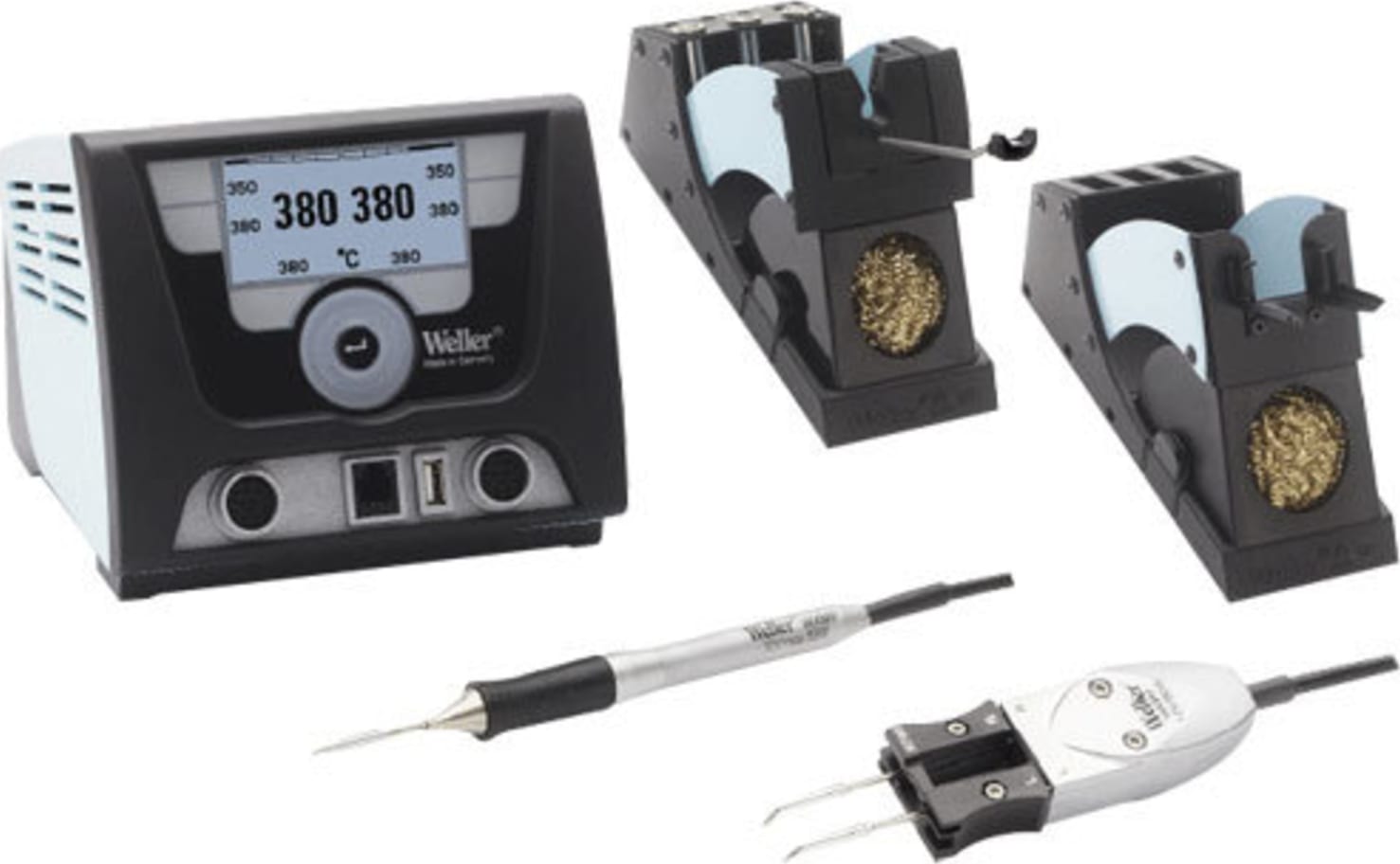

Weller WX2021 Soldering Station with WXMP pencil and WXMT tweezers, 120V.
The WX 2 is an innovation that we owe in great part to input from our customers. Many of its features grew from customer suggestions and ideas compiled by our customer service and distribution partners from around the world.
The WX 2 is designed for ease of use … from its uniquely responsive touchscreen to its exceptionally intuitive user interface. In fact, once you’ve used the WX2 there’s a good chance you’ll never want to use anything else.
Behind the impressive design of the WX2 lies a powerful and easy-to-use two-channel soldering system. A variety of connectivity options, intelligent soldering tools and a number of brand new features make the WX 2 the ideal tool for today’s requirements when it comes to soldering work on LED backplanes, solar applications, and micro soldering joints.
With the WX 2, Weller has raised the bar for soldering performance once again.
The new WX 2 combines an elegant new design with solid improvements in performance and ease of use. It offers the perfect combination of features to help your operation become more efficient and productive.
240 W Power Supply
- Very high capacity
- Quick heating-up time
- Ability to use of 200 W tools
- Simultaneously powers two 120 W tools
Robust Touchscreen
- Patented, capacitive touchscreen made of real glass
- Antistatic
- Chemical resistant
- Temperature resistant
Intuitive Use
- Turn-and-click wheel with enter key and finger guide
- Six touch keys
Multiple Language Selection
- Menu navigation options include English, German, French, Italian, Spanish, Portuguese, and Mandarin Chinese
- Other languages also available
Graphic LC Display
- Text and graphic elements can be viewed from all angles
- Blue LED background lighting for improved legibility
Versatile Connectivity Options
- Standard digital connection
- Decoupled robot connection
- Manages fume extraction units, heating plates, programmable logic controller (PLC)
- Temperature, speed and status shown in the WX display
WX Tool Connection
- Positive tool recognition
- Digital data transfer
- Malfunction-resistant
- Locking ring connection
- Seperate pins 12 V and 24 V
Multi-purpose USB Port
- Fast, localized firmware updates, parameter configuration and logging capabilities via USB stick
Intelligent Tools
- Pencil has built-in analog-to-digital converter and data memory read
- Re-calibrated pencil eliminates need to calibrate soldering station
Optimized, Spring-loaded Tip Barrel (WXP 120 only)
- Spring system provides steady contact pressure
- Antistatic soft grip
- Tips can be changed without tools
Energy-saving Sleep Mode
- Automatic standby mode activated by a sensor in handle that detects when device is not in use
- No special stop-and-go rest required
- Blue ring status indicator light (WXP 120 only
- Automatic standby mode sensor also controls all connected accessories such as fume extractors and heating plates
WX compatible soldering accessories: A total system.
The production power and flexibility of the WX 2 control unit is optimized by a wide selection of WX tools and accessories, both new and existing, that are compatible with the WX 2.
Soldering tools
All WX tools have an integrated sensor system, customized bit calibration with no base station required, signal reader built into the handle, and internal memory. And all come with standard Weller features such as ergonomic design, extremely high precision, and short heating times.
WXP 200 Soldering iron, 200 W, 24 V
The most powerful pencil among the new WX tools. Ideal for soldering work requiring extreme heat, e.g. LED backplanes, solar applications.
Uses XHT series tips.
Order No. 0052920599
Order No. 0052920599 (with WDH31 Stand)
WXP Soldering Iron, 120 W, 24 V
This 120 W model is perfect for soldering either large or small parts requiring high temperatures.
Uses XT series tips.
Order No. 0052920199
Order No. 0052920299 (with WDH10 Stand)
WXMP Micro soldering iron, 40 W, 12 V
Very fine, thin soldering pencil, best suited for work under a microscope. Built-in active soldering tip provides dynamic performance.
Uses RT series tips.
Order No. 0052920399
Order No. 0052920499 (with WDH50 Stand), tip sold seperately
WXMT Micro tweezers, 40 W, 12 V
Very fine, thin tweezers. Ideal for soldering and desoldering very small SMD parts.
Uses RTW series tip cartridfes.
Order No. 0051317799
Order No. 0051317899 (with WMRTH Stand), tweezer cartridge sold seperately
Soldering Tips
Weller provides a wide selection of different soldering tips for every application imaginable to go along with the new WX tools. The conical shape of the new soldering tips for the WXP 120 soldering pencil allows for the best possible sensor position, maximizing sensitivity.
Safety rests
Trusted Weller WDH 10, WDH 31, WDH 50 and WDH 60 safety rests are WX compatible and come a built-in dry cleaning system.
Fume extraction solutions
The Weller Zero-Smog WFE 2S, WFE 4S, WFE 8S and WFE 20D fume extraction systems put an end to pollution from soldering fumes or vapors from adhesives. The optimized interaction between turbines, filter units, and electronic control provides an air purity level of almost 100%. A wide range of matching accessories, such as hose connections and extraction arms, is also available. Weller Zero-Smog systems can be connected directly using the WX port and controlled via the WX display.
Heating plates
Weller WHP 1000 and WHP 3000 heating plates are used to preheat electronic components. They heat up the area under the part to be soldered, reducing the heat required from above and minimzing the risk of thermal damage due to heating from one side. The Weller heating plates can be connected directly using the WX port and controlled via the WX display.
