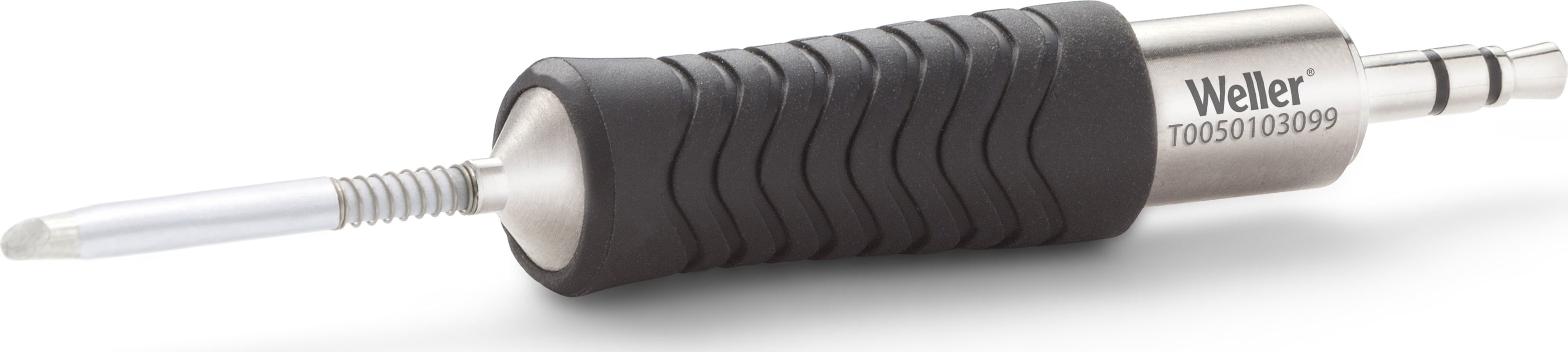

Weller RTP020GMS - RT Pico Tip, Gullwing 2.0mm (T0050103099) - MIL SPEC Version

Name: Weller RTP020GMS - RT Pico Tip, Gullwing 2.0mm (T0050103099) - MIL SPEC Version
Brand: Weller
SKU: WellerRTP020GMS
Price: 36.69 USD
Availability: InStock

0 reviews | Catalog: T0050103099 | UPC: 037103331687 | Model: Weller RTP020GMS

Compare

RTP 020 G MS GULLWINGSPITZE 2,0

RT Pico series tip
MIL SPEC version
Compatible with WXPPMS soldering iron
Designed for use with small components, 0402 down to 01005
Short tip to grip distance

View Product Details

List Price: $43.00

Your Price: $36.69

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Weller RTP020GMS RTP 020 G MS GULLWINGSPITZE 2,0	Weller RTP001CMS RTP 001 C MS TIP CONICAL 0.1	Weller RTP001CMSNW RT Pico tip, conical, 0.1mm, MIL-SPEC, not wettable	Weller RTP002CMS RTP 002 C MS TIP CONICAL 0.2	Weller RTP004CMS RTP 004 C MS TIP CONICAL 0.4	Weller RTP001CXMS RTP 001 C X MS TIP CONICAL BENT 0.1	Weller RTP002CXMS RTP 002 C X MS TIP CONICAL BENT 0.2	Weller RTP004BMS RTP 004 B MS TIP BEVEL CUT 0.4	Weller RTP012BMS RTP 012 B MS L TSPITZE SCHR G 1,2	Weller RTP002SMS RTP 002 S MS TIP CHISEL 0.2X0.1	Weller RTP002SMSNW RT Pico tip, chisel 0.2mm 0.1mm, MIL-SPEC, not wettable	Weller RTP004SMS RTP 004 S MS TIP CHISEL 0.4X0.2	Weller RTP008SMS RTP 008 S MS TIP CHISEL 0.8X0.3	Weller RTP010SMS RTP 010 S MS TIP CHISEL 1.0X0.3	Weller RTP013SMS RTP 013 S MS TIP CHISEL 1.3X0.3	Weller RTP010KMS RTP 010 K MS TIP KNIFE 1.0	Weller RTP010KMSNW RT Pico tip, knife 1.0mm, MIL-SPEC, not wettable	Weller RTP025KMS RTP 025 K MS TIP KNIFE 2.5
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Weller RTP020GMS Accessories

Choose a Category

Flux Remover

for the Weller RTP020GMS

MG Chemicals 824-450G Isopropyl Alcohol for Cleaning Electronics and Flux Removal

Catalog: 824-450G

(7)

In Stock!

Add to Cart

Weller RTP020GMS - RT Pico Tip, Gullwing 2.0mm (T0050103099) - MIL SPEC Version

Weller RT Pico tips are designed for precision soldering applications. RT Pico tips can be used with extremely small components, from 0402 down to 01005.

This series contains the MIL SPEC versions of the RT Pico tips. They are compatible with the WXPPMS iron.

CHISEL

Model	Length (mm) (inch.)	a / b (mm) (inch.)	Order No.
RTP 002 S MS	16.3 0.642	0.2 / 0.1 0.008 / 0.004	T0050102199
RTP 002 S NW MS	16.3 0.642	0.2 / 0.1 0.008 / 0.004	T0050102299
RTP 004 S MS	16.3 0.642	0.4 / 0.2 0.016 / 0.008	T0050102399
RTP 008 S MS	16.3 0.642	0.8 / 0.3 0.031 / 0.012	T0050102499
RTP 010 S MS	16.3 0.642	1.0 / 0.3 0.039 / 0.012	T0050102599
RTP 013 S MS	16.3 0.642	1.3 / 0.3 0.051 / 0.012	T0050102699

BEVEL CUT

Model	Length (mm) (inch.)	a / b (mm) (inch.)	Order No.
RTP 004 B MS	16.3 0.642	0.4 0.016	T0050101999
RTP 012 B MS	16.3 0.642	1.2 0.047	T0050102099

CONICAL

Model	Length (mm) (inch.)	a / b (mm) (inch.)	Order No.
RTP 001 C MS	17.9 0.705	0.1 0.004	T0050101399
RTP 001 C NW MS	17.9 0.705	0.1 0.004	T0050101499
RTP 002 C MS	16.3 0.642	0.2 0.008	T0050101599
RTP 004 C MS	16.3 0.642	0.4 0.016	T0050101699
RTP 001 C X MS	20.6 0.811	0.1 0.004	T0050101799
RTP 002 C X MS	20.6 0.811	0.2 0.008	T0050101899

GULLWING

Model	Length (mm) (inch.)	a / b (mm) (inch.)	Order No.
RTP 020 G MS	15.9 0.626	2.0 0.079	T0050103099

KNIFE

Model	Length (mm) (inch.)	a / b (mm) (inch.)	Order No.
RTP 010 K MS	15.9 0.626	1.0 / 0.2 0.039 / 0.008	T0050102799
RTP 010 K NW MS	15.9 0.626	1.0 / 0.2 0.039 / 0.008	T0050102899
RTP 025 K MS	17.3 0.681	2.5 / 0.3 0.098 / 0.012	T0050102999

Tech Specs

Test Equipment General Attributes
Product Length	0.63 IN
Product Width	0.08 IN
HTS/Schedule B Number	8515904000
ECCN Number	EAR99
Country of Origin	Mexico
Shipping Length	0.63 IN
Shipping Width	0.08 IN
