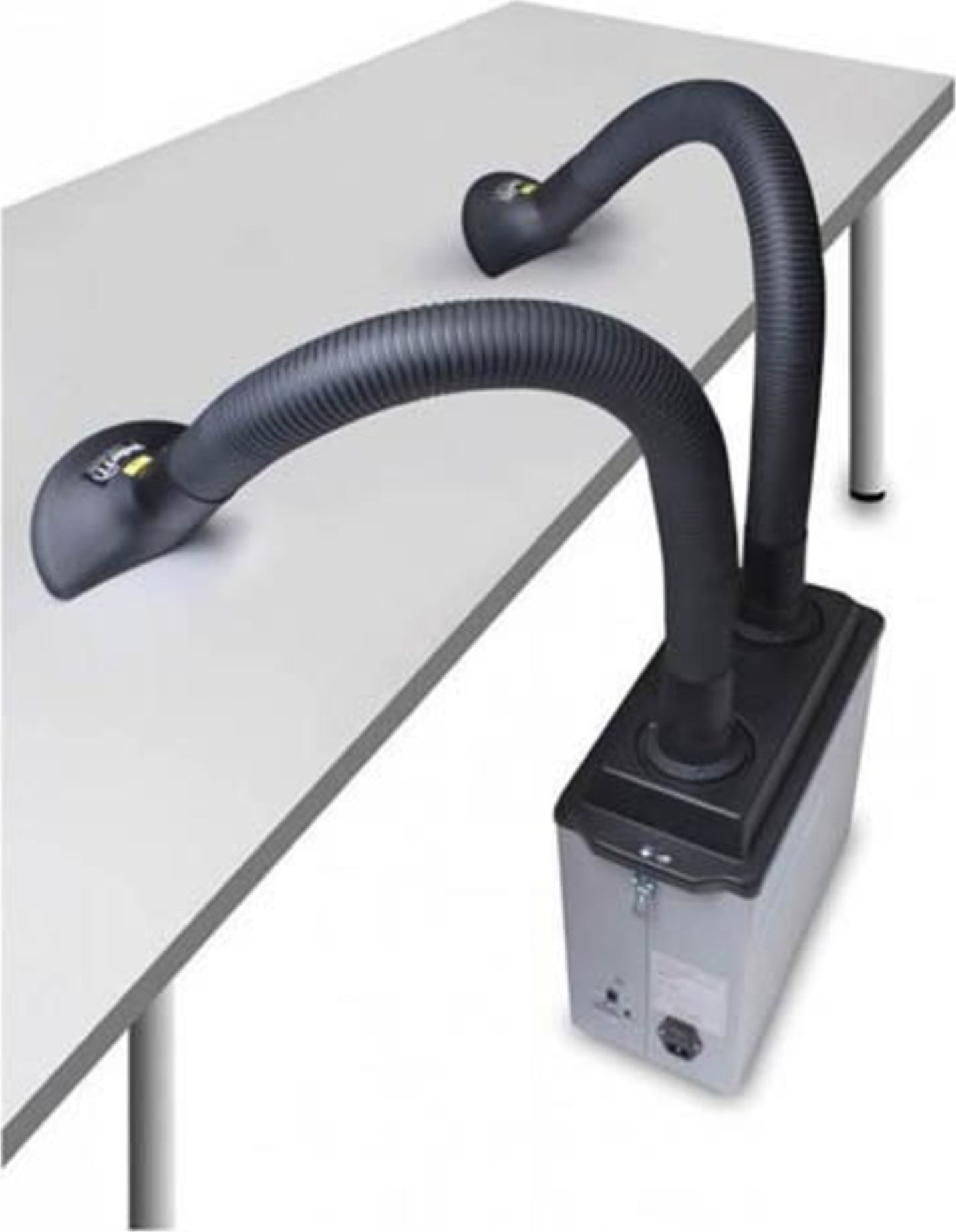

Weller MG130 Kit - with Two FL10 Arms, Two ALFA Nozzles

Unit purifies air up to 2 workplaces
Filter alarm and 3-step speed control
Compact footprint
100–240 V power supply

Filters are classified based on the size of the particle that they can keep from returning back into the environment. The smaller the particles are, the deeper they penetrate into the respiratory system. The smallest particles travel via alveoli into the bloodstream. The top graph shows filter classes and the size of the particles they can efficiently filter. Particles are measured in microns, which is one millionth of a meter.

Each filter class is assigned an efficiency rating based on the ability to filter MPPS (Most Penetrating Particle Size). HEPA filters have efficiencies of at least 99.95% at 0.3 microns. The most penetrating size is a function of the structure of the filter medium, the velocity of the airflow through the filter, and the physical and chemical nature of the particles.

Volume Extraction Technical Data
Model:	ZeroSmog2	MG130	MG100S	MG140	ZeroSmog4V	ZeroSmog6V
Dimensions L x B x H (mm / in)	360 x 330 x 415 mm 14.17 x 12.99 x 16.33 in	460 x 210 x 500 mm 18.11 x 8.26 x 19.68 in	460 x 210 x 610 mm 18.11 x 8.26 x 24.15 in	350 x 335 x 655 mm 13.77 x 13.18 x 25.78 in	345 x 325 x 505 mm 13.58 x 12.79 x 19.88 in	460 x 460 x 665 mm 18.11 x 18.11 x 26.18 in
Weight (kg / lb)	9 kg / 19.8 lb	11 kg / 24.3 lb	15 kg / 33.1 lb	18 kg / 39.7 lb	19 kg / 41.9 lb	40 kg / 88.2 lb
Voltage	120 V. 60 Hz	100-240 V. 50/60 Hz	100-240 V. 50/60 Hz	100-240 V. 50/60 Hz	120 V. 60 Hz	120 V. 60 Hz
Noise level at 1 m *	50 dB (A)	48 dB (A)	48 dB (A)	44 dB (A)	48 dB (A)	51 dB (A)
Electrical power	200 W	100 W	100 W	100 W	275 W	460 W
Max. blower vacuum	3,000 Pa	2,300 Pa	2,300 Pa	2,300 Pa	2,700 Pa	3,000 Pa
Max. blower capacity	220 m²/h	140 m3/h	140 m3/h	140 m3/h	230 m3/h	615 m²/h
Pre-filter	Medium dust filter M5	Fine dust filter F7	-	Fine dust filter F7	Fine dust filter F7	Fine dust filter F7
Compact filter	Particle filter E12 + gas filter (active carbon foam) low	H13 particle filter + gas filter (50% active carbon + 50% Chemisorb)	H13 particle filter + gas filter (50% active carbon + 50% Chemisorb)	H13 particle filter + gas filter (50% active carbon + 50% Chemisorb)	H13 particle filter + gas filter (50% active carbon + 50% Chemisorb)	H13 particle filter + gas filter (50% active carbon + 50% Chemisorb)
Gas filter volume	low	low	high	high	medium	high
Particle filter separation degree MPPS	> 99.5%	> 99.95%	> 99.95%	> 99.95%	> 99.95%	> 99.95%

* At typical operating speed

Test Equipment General Attributes
Product Height	1.00 IN
Product Length	1.00 IN
Product Width	1.00 IN
HTS/Schedule B Number	8421990080
ECCN Number	EAR99
Country of Origin	Hungary
UPC	037103299840

5

Name: Weller MG130 Kit - with two FL10 Arms, two ALFA Nozzles
Brand: Weller
SKU: WellerMG130 KIT
Price: 1312.00 USD
Availability: InStock
Rating: 5.00 (2 reviews)

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 2 reviews

Most Helpful First | Newest First

Recommend to a Friend

Weller MG130 Kit

5.0

It's very easy to assemble and it's very quiet in the small lab environment we have which makes it a great piece of equipment to have.

Anonymous on Apr 26, 2022

Recommend to a Friend

Weller MG130 KIT

5.0

This unit works very effectively. We will purchasing more throughout 2022

Mark Eisenhard on Jan 12, 2022


Product	Weller MG130 KIT MG 130 2x 0F15 ARM 2x ALFA NOZZLE USA B	Weller MG130 EXTRACTION UNIT MG 130 110-240V USA B	Weller MG100S UNIT, FUME EXTRACTION, MG100S 110-240V	Weller MG100S KIT 2 MG100S WITH 2x0F15/2xALFA 110-240V B	Weller MG140 EXTRACTION UNIT MG140 110-240V USA B	Weller MG140 CLEANROOM The MG 1140 fume extraction unit is suitable for particle or gas fi ...	Weller ZERO SMOG 4V KIT 1 Fume extraction Zero Smog 4V with Kit 1 Funnel	Weller ZERO SMOG 4V KIT 2 ZERO SMOG 4V 100/120V B KIT2 FUNNEL	Weller ZERO SMOG 6V GAS ZERO SMOG 6V FU.EXTR. 100/120V GASFILTER	Weller ZERO SMOG 6V Fume extraction Zero Smog 6V	Weller ZERO SMOG 4V ZERO SMOG 4V FUME EXTRACTION 100/120V B	Weller MG100KIT1S MG100S KIT1 FUME EXTRACTION 110-240V B
