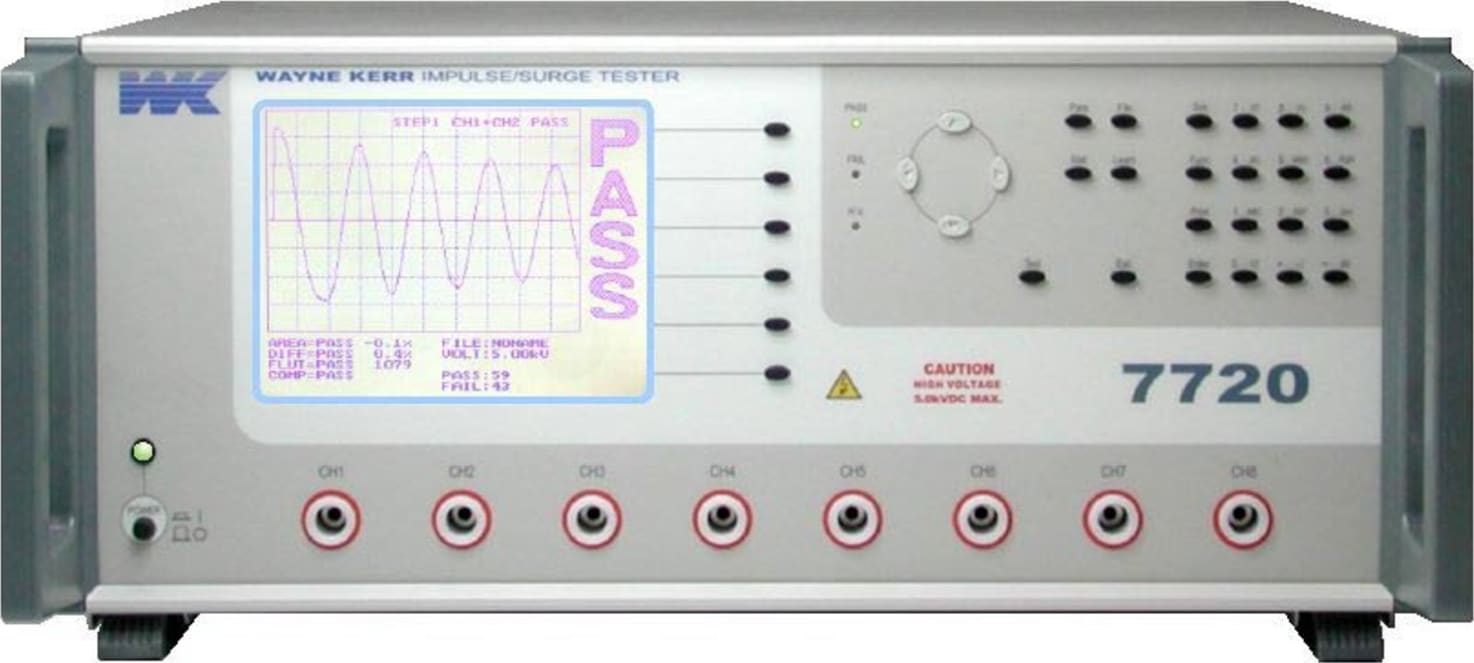

Wayne Kerr 1J7720/C6 - 5kV 6 port Impulse Winding Tester

There are a number of parameters that can change during manufacture that may affect the performance of a winding. These parameters, which cannot always be measured with an LCR meter, include change in material as well as shorted and damaged windings.

The 7720 Impulse Winding Tester uses a very high voltage impulse to stimulate the device under test (DUT). It analyzes the decay waveform to detect changes in material, shorted and damaged windings and other errors. Long term decay of a winding can also be detected.

The system used ensures that the component is tested but not damaged during the analysis process.

The shape of the waveform is dictated by the Q factor, inductance and stray capacitance of the winding. High Q shows as a slow decay and the frequency of the waveform is determined by the inductance and stray capacitance of the DUT. Importantly, the short high voltage pulse causes no damage to the device under test.


Simple operation, powerful detection capability and inexpensive ... a winning combination

The 7720 provides an important test capability in the production process for any wound component manufacturer.

Early detection of component faults is a key feature of the 7720. Faulty material, manufacturing process defects and bad components can be identified early in the process. This saves money for the manufacturer and it ensures the quality of the product supplied to the customer.

The 7720 has also been designed with ease of use in mind - using a large visual display, graphical format and straightforward intuitive operation. The 7720 provides all this capability at a very attractive price.


Production test software

7720 is fully programmable though its RS232 port by a PC. Component readouts can be stored against serial numbers to ensure thorough and rigorous testing of components.
