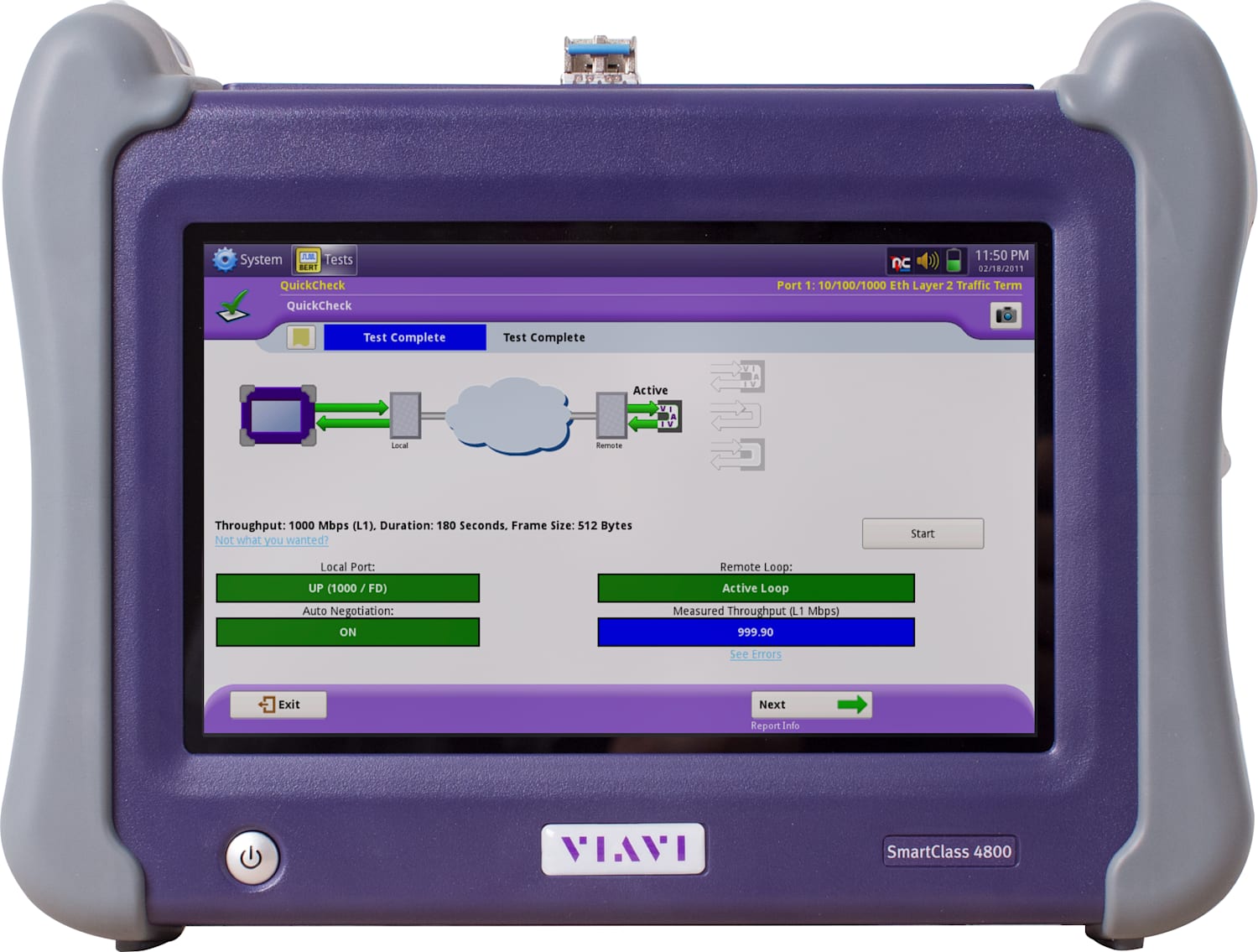

Viavi SC4800-GIGE - Smart Class 4800 Ethernet Package

• Electrical (10/100/1000) and optical (100M, 1GE) Ethernet interfaces
• Automated, enhanced RFC 2544 and SAM Complete testing per ITU-T Y.1564
• Integrated burst testing approach per MEF 34 and RFC 6349 TrueSpeed TCP throughput testing
• Compatible with Viavi fiber microscopes, and optical power meters

Optimized for business services installation teams, the SmartClass 4800 is the modern tool for ensuring data and voice services achieve expected key performance indicators (KPI).

With the ability to test electrical and optical Ethernet links, the SmartClass 4800 allows technicians to test all common business class interfaces. Technicians can test the quality of voice services regardless of whether they are delivered via VoIP or PRI.

The industry's smallest handheld instrument can test throughout the service life cycle, including service activation, troubleshooting, and maintenance. Advanced Ethernet test features such as TrueSpeed per RFC 6349 and, J-Profiler help field technicians test their networks faster and more accurately than ever before.

Best practice workflow (single and multiple services)

1. J-QuickCheck: Basic Connectivity and Throughput Test

2. Single-Service: Enhanced RFC 2544

3. Multi-Service: Y.1564 SAMComplete For Ethernet KPI Verification

4. J-Proof Layer 2 control Plane Transparency Test

5. RFC 6349 TrueSpeed: Layer 4 TCP Throughput

This test workflow is applicable to Ethernet Business Services and Wireless Backhaul network topologies; a typical Ethernet business service network topology is shown in the following diagram.

Optimized for field technicians

The SmartClass 4800 makes testing Ethernet and voice services easy:

• All test interfaces are readily available
• Compact form factor for easy portability: 7 x 9.5 x 3 in (17.8 x 24.1 x 7.62 cm)
• Large 7 in multi-touch display
• Tablet-like interface for easy navigation through test information and advanced workflows
• Integrated WiFi and Bluetooth lets you easily connect test sets and offload results

Compatible with Viavi Solutions fiber test tools

The SmartClass 4800 is compatible with:

• The P5000i fiber microscope for connector end-face inspection and analysis
• MP-Series optical power meters for optical power and loss measurements

Two versions of Smart Class 4800 tester

The Smart Class 4800 is available both with and without a T1/E1 port.
