| General Specifications |
| General |
| Display |
5-inch capacitive color touch screen (12.5 cm) |
| Display resolution |
800 x 480 W VGA |
| Interfaces |
2x USB 2.0 ports, 1x mini-USB 2.0 port, built-in Bluetooth and WiFi (optional, dongles also available) |
| Storage |
10,000 OTDR traces typical |
| Battery |
Rechargeable Lithium-polymer battery, up to 20 hours of operation1 |
| Power supply |
AC/DC adapter, input 100-250 V AC, 50-60 Hz; 2.5 A max, output 12 V DC, 25 W |
| Electrical safety |
EN60950 compliant |
| Size (HxWxD) |
175 x 138 x 57 mm (6.9 x 5.4 x 2.24 in) |
| Weight (battery included) |
Approx. 0.9 kg (1.98 lb) |
| Operating/storage temperature |
Operating: –20 to +50°C; storage: –20 to +60°C |
| Humidity (noncondensing) |
95% |
| OTDR |
| Laser safety class (21 CFR) |
Class 1 |
| Number of data points |
Up to 256,000 data points |
| Display range |
0.1 km to 260 km |
| Sampling resolution |
4 cm |
| Distance accuracy |
(±1 m) ± (sampling resolution) ±(1.10–5 x distance), excluding group index uncertainties |
| Attenuation resolution |
0.001 dB |
| Attenuation linearity |
±0.04 dB/dB |
| |

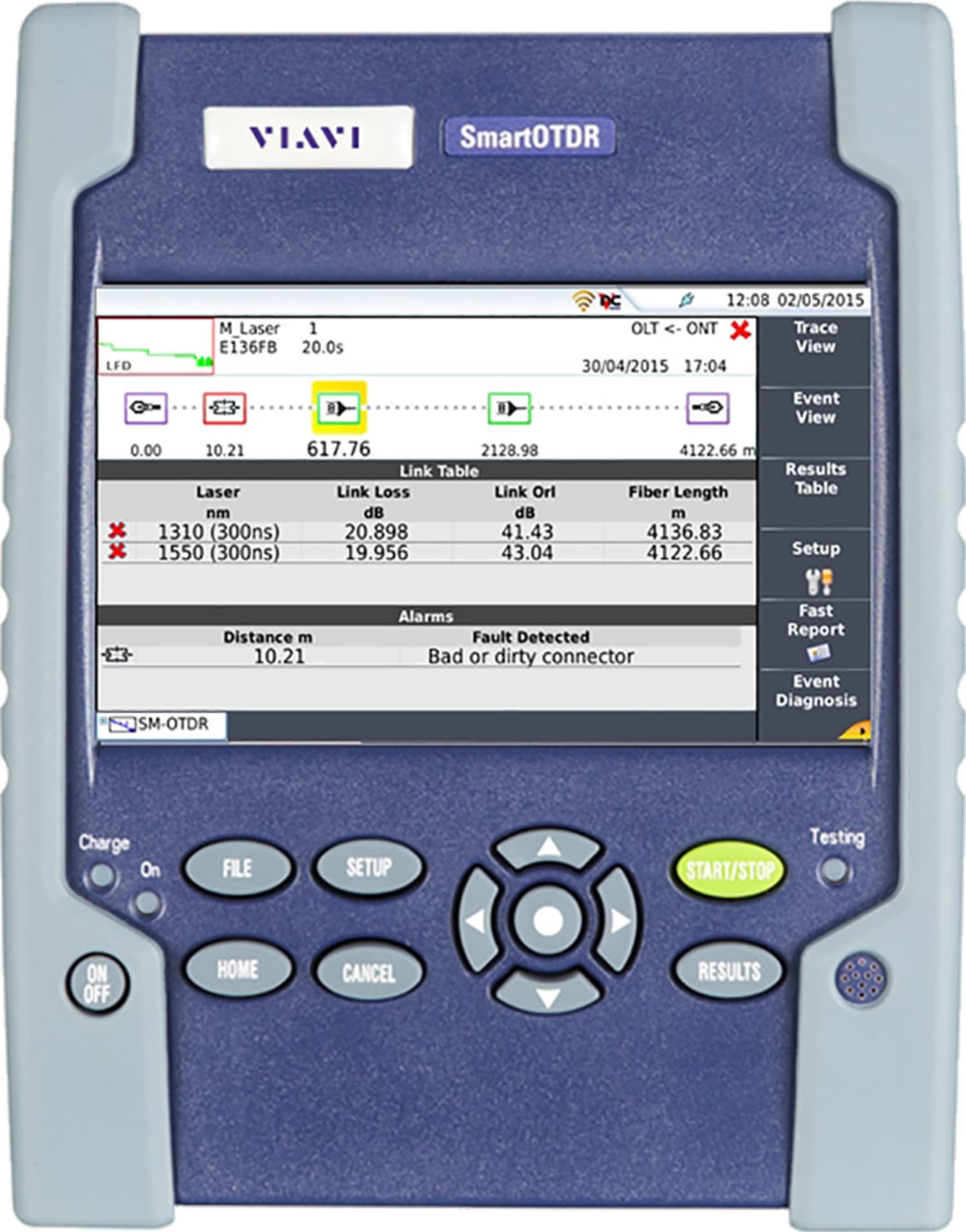

SmartOTDR 100A |
SmartOTDR 100B |
| Central wavelength2 |
1310/1550/1650 nm ±20 nm |
1310/1550/1625/1650 nm ±20 nm |
| RMS dynamic range3 |
37/35/32 dB |
40/40/41/41 dB |
| Pulse widths |
5 ns to 20 µs |
3 ns to 20 µs |
| Event dead zone4 |
1.35 m |
0.9 m |
| Attenuation dead zone5 |
4 m |
2.5 m |
| Splitter attenuation dead zone |
Not available |
45 m after 15 dB splitter loss |
| CW Light Source |
| Output power level6 |
–3.5 dBm |
| Stability long term (8 hr)7 |
±0.05 dB |
| Built-in Power Meter (optional) |
| Operating mode |
270, 330, 1 kHz, 2 kHz, and TWINTest |
| Power level range |
0 to –55 dBm |
| Calibrated wavelengths |
1310, 1490, 1550, 1625, and 1650 nm |
| Measurement accuracy8 |
±0.5 dB |
| Built-in Visual Fault Locator (optional) |
| Wavelength |
650 nm |
| Emission mode |
CW, 1 Hz |
| Laser class |
Class 2 per EN60825-1 and FDA21 CFR Part 1040.10 standards |
| Built-in PON/XG-PON Power Meter (E118FA65PPM version) |
| Wavelengths |
1490/1550 nm; 1490/1578 nm |
| Measurement ranges |
1490 nm: –35 to +5 dBm; 1550/1578 nm: –35 to +23 dBm |
| Measurement accuracy |
±0.5 dB |
1. Per Telcordia GR-196-CORE.
2. Laser at 25°C and measured at 10 µs.
3. The one-way difference between the extrapolated backscattering level at the start of the fiber and the RMS (SNR=1) noise level, after 3 minutes of averaging using the largest pulsewidth.
4. Measured at ±1.5 dB below the peak of an unsaturated reflective event using the shortest pulse width.
5. Measured at ±0.5 dB from the linear regression using a FC/UPC-type reflectance and the shortest pulse width.
6. ±1 dB.
7. After light source stabilization, warm-up time of 20 min.
8. At calibrated wavelengths and at –30 dBm |
