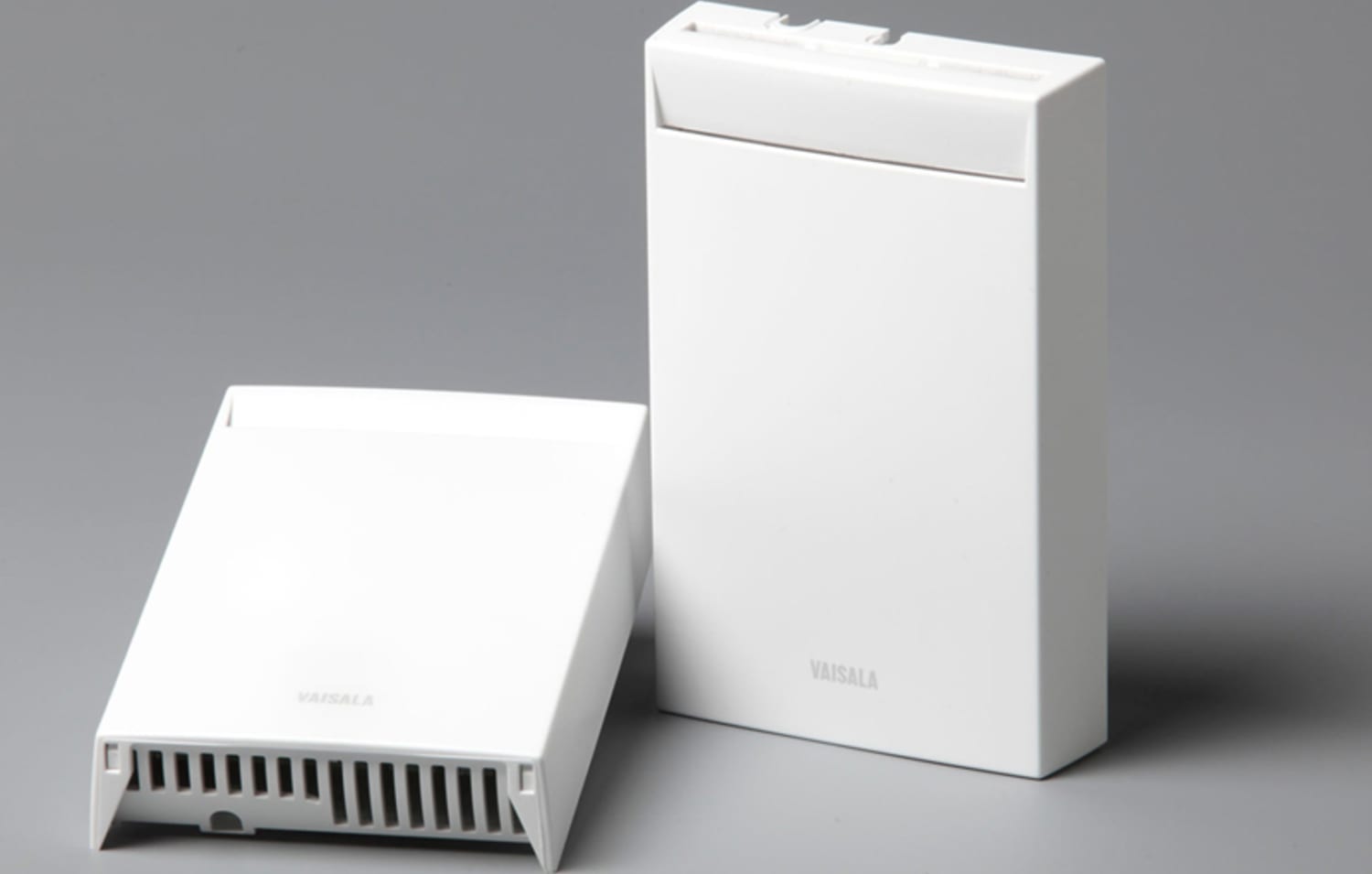

Vaisala HMW83 Humidity and Temperature 3-Wire Transmitter

Full 0 … 100 %RH measurement range
±3.0 %RH accuracy
Reliable transmitters for basic HVAC humidity measurements
Optimized for easy installation and low maintenance
User exchangeable INTERCAP® sensor for easy field replacement
UL- V0 flammability rating

HMW83 Humidity and Temperature Transmitter for Wall Mounting in Commercial HVAC Use, 3-Wire Voltage Outputs

The 3-wire HMW83 transmitter is designed for use in energy management systems in buildings. It combines excellent stability with reliable operation. It is easy to install: wire it to the terminal block at the transmitter bottom and close the housing with a snap-on lid to cover the electronics. The HMW83 is designed to fit standard 2x4" junction boxes.

The HMW83 uses the interchangeable Vaisala INTERCAP® sensor which requires no recalibration when the sensor is replaced. The sensor is also insensitive to dust as well as to most chemicals.

The HMW83 has two 0…10 V outputs corresponding to 0…100% RH and -5…+55 °C(+23…+131 °F) temperature.

Typical Installation Locations

• Ventilation ducts
• Walls
• Wash-down areas
• Outdoor locations

HMDW80 Series Humidity and Temperature Transmitters for Building Automation Applications

Vaisala INTERCAP® Humidity and Temperature Transmitter Series HMDW80 measure relative humidity and temperature in various building automation applications. Transmitters combine easy installation and reliable operation with a low requirement for maintenance.

The versatile HMDW80 series includes transmitters for wall and duct mounting, IP65-classified transmitters for humid areas, and transmitters with a radiation shield for outdoor use. It also includes temperature-only transmitters and transmitters with an optional display.

Calculated humidity parameters – dew point temperature, wet bulb temperature, and enthalpy – are also available.

Easy Installation
HMDW80 series transmitters are optimized for easy installation. There are no loose parts, screws are retained in the enclosure, all connectors are clearly labeled, and the connectors are within easy reach.

The duct mount transmitters are well suited to a variety of duct sizes, the outdoor transmitters can be mounted directly onto a wall or pole without any extra accessories, and the wall mount transmitters can be installed without the need to make holes in the transmitter enclosure.

Reliable Operation
HMDW80 series transmitters require minimal maintenance thanks to their excellent sensor stability and high-quality materials. If necessary, the INTERCAP® sensor can be easily exchanged in the field with minimum downtime.
