• Measures High and Low Side Pressure and Temperature
• Pressure measuring range: -29.9 to 0 to 650 psig
• Temperature sensor range: -40°F to 266°F (-40°C to 130°C)
• 1/4″ Center Port and hoses included
• Accurate temperature readings with temperature clamps and K-Type thermocouple bead probes

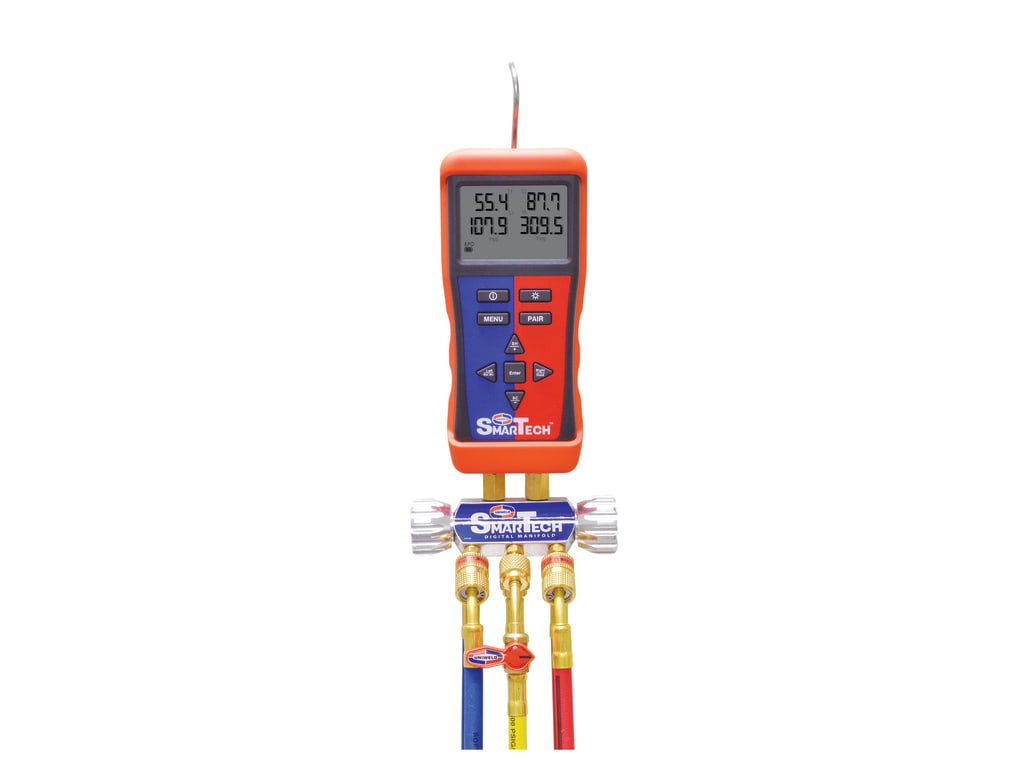

The Uniweld USMAN 145 SmarTech Wireless Digital Manifold combines the technology of your Android or iOS device with the superior craftsmanship of Uniweld manufacturing. This Digital Manifold is also equipped with highly precise sensors that output professionally accurate pressure and temperature readings. The SmarTech app, with 111 refrigerant profiles, calculates and displays the system’s real-time pressures, temperatures, Superheat, and Subcooling in a user-friendly format. Export a SmarTech Verified Report and email system performance data as a PDF or CSV file that can be easily tracked and saved.

For ease of use, the Digital Manifold features a 2 Valve aluminum manifold body with easy-grip handles, double O-ring piston valves, and easy access to front hose holders. There is a multi-function 1/4in male flare “T” Fitting built into the blue hose for connecting a vacuum gauge or simplified purging and charging refrigerant.

The Uniweld USMAN145 SmarTech Digital Manifold includes:

• SmarTech Wireless Digital Manifold
• 5 Ft. Ball Valve Hose, Vacuum Rated to 20 Microns, Yellow
• 5 Ft. EZ Turn Anti-Blowback Hose with EZ Access T-Fitting, Blue
• 5 Ft. EZ Turn Anti-Blowback Hose, Red
• Temperature Clamp K-Type with 6 Ft. Lead and (5) 5” Velcro Cable Tie Straps
• Thermocouple Bead Probe
• SmarTech Protective Padded Case
• (6) AA Batteries
