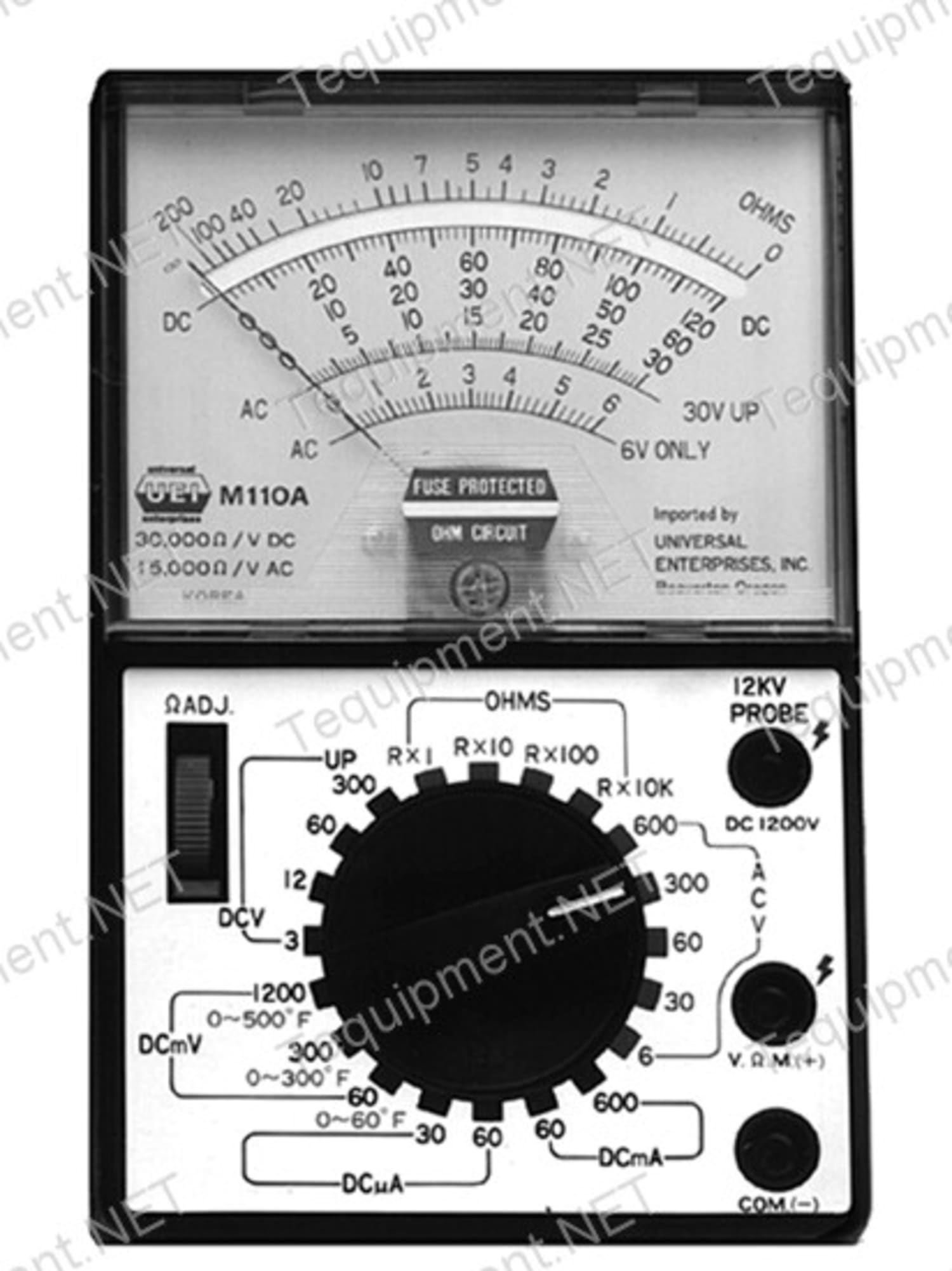

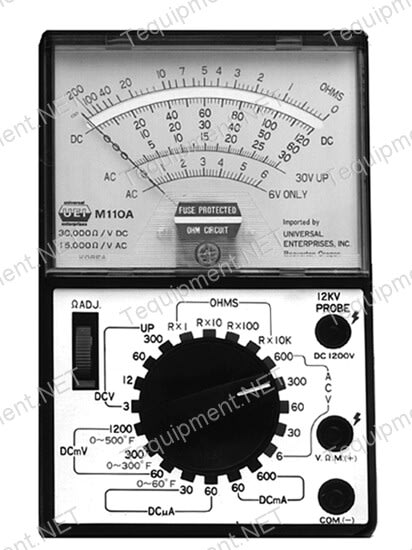

UEi M110A 600V AC High Resolution HVAC/R Analog Multimeter

0 reviews | UPC: 005353350022 | Model: UEi M110A

Compare

ANALOG METER 21 RNG w/DC uA

21 ranges
600 Volts AC and 300 Volts DC
2 Megohm resistance
High resolution DC Ÿ Ð for flame safeguard testing
DC millivolt scale allows use of adapters
Color-coded and mirrored scale plate

View Product Details

List Price: $60.72

In Stock:

View Payment Options

Recommended for you

The M110A, in addition to high-resolution voltage and ohms scales needed for electrical troubleshooting also includes the features that help you maintain and troubleshoot HVAC/R systems. Features like DC millivolts and microamps let you troubleshoot flame safeguard circuits and the millivolts function helps you evaluate heat anticipators. Three year limited warranty.

Ranges
DC Millivolts	0 - 60, 300, 1200m V
DC Volts	0 - 3, 12, 60, 300, 1200 V (0 - 12,000 V with optional probe)
DC Microamps	0 - 30, 60µ A
DC Milliamps	0 - 60, 600m A
OHMS	0 - 200, 2K, 20K, 2M
AC Volts	0 - 6, 30, 60, 300, 600 V
Temperature	0 - 60, 300, 500°F
Accuracy
DC	±3% of full scale
OHMS	±3% of scale length
AC	±4% of full scale
Temperature	±2 divisions
Input Impedance	30K /V DC, 15K /V AC
Batteries	Two 1.5V, size “AA” (NEDA #15D) batteries One 9 V (NEDA #1604) battery
Fuse	6/10A (0.5 ohm internal resistance) 3AG series
Note	To maintain calibration accuracy and instrument protection, replacement fuse must be of the proper current and resistance value.
