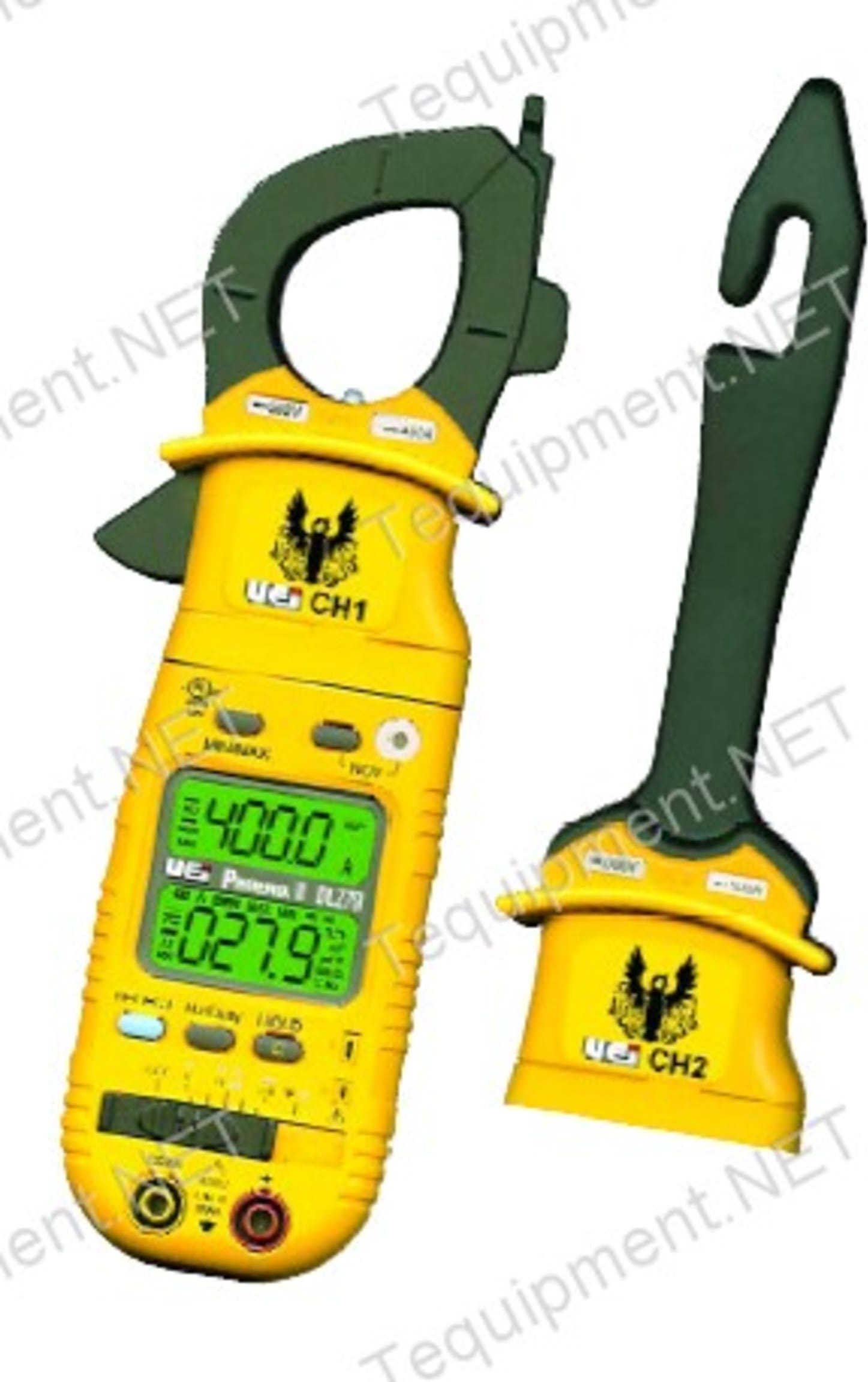

PHOENIX II: DL279KIT CLAMP METER & AC HOOK

DL279KIT - Digital Clamp-On Meter Kit Includes:

Phoenix II (DL279) Clamp-On Meter
The Hook (CH2) Extended Clamp Head

DL279 (PHOENIX II) Clamp-On Meter

Detachable clamp head
750V AC / 1000V DC
400A AC
2000?A AC / DC
40M? Resistance / Continuity
4000?F Capacitance
-40 ~ 752°F Temperature (K type)
Frequency / Duty Cycle
ΜA for Flame Safeguard
Non-Contact Voltage
Diode
MIN / MAX display
Worklight
Magnetic mount
Dual display with backlight
Test lead storage
Test lead holder on clamp head
Data hold
Auto off
Three year limited warranty

CH2 Clamp Head Features

Measures 100A AC
Easily reaches into tight spaces
Features a worklight for dark work spaces
AC Amps Measurement: Jaw input (#6 wire or smaller)
Range: 0 - 100A
Resolution: 0.1A
Accuracy: 2% ±l20 dgts
Interference from adjacent wires: 0.03 - 1.0A
Three year limited warranty

View Product Details

List Price: $139.95

In Stock:

View Payment Options

Recommended for you

The Phoenix Clamp Meter Series™ The DL279KIT combines the DL279 and CH2 into one package for all your HVAC/R needs. The Phoenix Series II offers the highest combination of function, features, and safety offered in a meter today. Combined with The Hook extended clamp head, no contractor will have to compromise their safety, efficiency, or comfort.

AC Amps Measurement - Jaw input (45Hz to 400Hz)
Range	Resolution	Accuracy	Overload Protection
40A	0.01A	±2.9% +15 dgts	600V
400A	0.1A	±1.9% +8 dgts	600V
DC Low Amps Measurement (test lead input)
Range	Resolution	Accuracy	Overload Protection
400ΜA	0.01ΜA	±1.2% +3 dgts	2000ΜA / 600V
2000ΜA	0.1ΜA	±1.2% +3 dgts	2000ΜA / 600V
AC Low Amps Measurement (test lead input, 45Hz to 400Hz)
Range	Resolution	Accuracy	Overload Protection
400ΜA	0.01ΜA	±2.0% +5 dgts	2000ΜA / 600V
2000ΜA	0.1ΜA	±1.5% +5 dgts	2000ΜA / 600V
*DL289 45Hz to 400Hz True RMS (Crest factor <3:1)
DC Volts Measurement
Range	Resolution	Accuracy	Overload Protection
400mV	0.1mV	±0.5% +4 dgts	600V
4V	1mV
40V	10mV
400V	100mV
1000V	1V	±0.8% +10 dgts
AC Volts Measurement (45Hz to 400Hz)
Range	Resolution	Accuracy	Overload Protection
4V	1mV	±2.0% +5 dgts	600V
40V	10mV
400V	100mV
750V	1V
*DL289 45Hz to 1KHz True RMS (Crest factor <3:1)
Ohms Measurement
Range	Resolution	Accuracy	Overload Protection
400O	100mO	±1.0% +4 dgts	600V
4kO	1O
40kO	10O
400kO	100O
4MO	1kO
40MO	10kO	±2.0% +4 dgts
Diode Test
Range	Open Circuit Voltage	Test Current (typical)	Overload Protection
2.0V	< 3.0V DC	0.25mA	600V
Capacitance Measurement
Range	Resolution	Accuracy	Overload Protection
40nF	0.01nF	±3.5% +6 dgts	600V
400nF	0.1nF
4ΜF	0.001ΜF
40ΜF	0.01ΜF
400ΜF	0.1ΜF
4000ΜF	1ΜF
Temperature Measurement (DL279 & DL289 only)
Range	Open Circuit Voltage	Test Current (typical)	Overload Protection
-30° to 14°F (-30° to -10°C)	0.1°F (0.1°C)	±5.4°F (±3.0°C)	30V
15° to 752°F (-9° to 400°C)	0.1°F (0.1°C)	±1.0% +3.6°F (±1.0% +2.0°C)	30V
Frequency Measurement
Range	Resolution	Accuracy	Overload Protection
9.999Hz	0.001Hz	±0.1% +4 dgts	600V
99.99Hz	0.01Hz
999.9Hz	0.1Hz
9.999kHz	1Hz
99.99kHz	10Hz
Minimum frequency: 0.5Hz, DC V offset should be zero Sensitivity: > 1.0V rms
Duty (%) Cycle Measurement
Range	Accuracy	Overload Protection
01. to 99.9%	±(0.2% per kHz +0.1%) +5 count	600V
0.5Hz to 100kHz (pulsewidth > 2usec)
Continuity Measurement
Open Circuit voltage <2.7V	Overload Protection
Threshold Approximately <20O	600V
