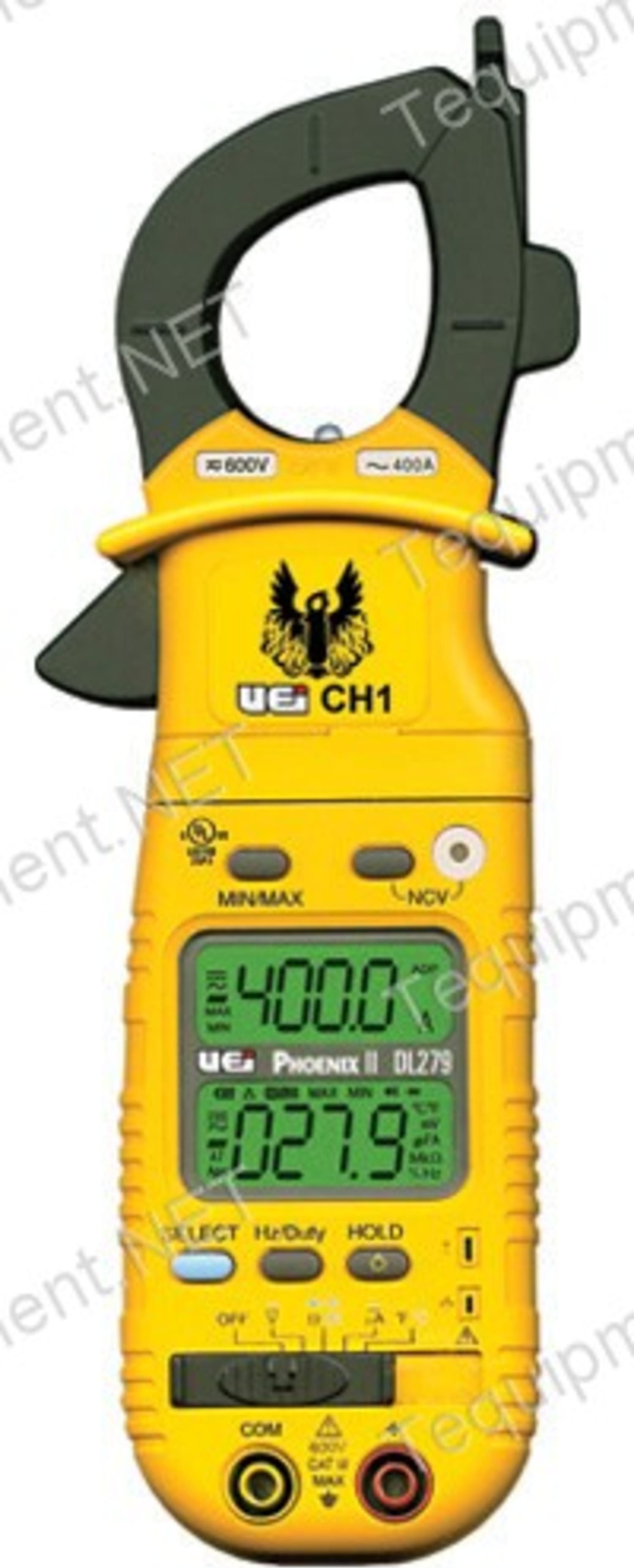

UEi DL279 Discontinued Products

1 (1 Review) | UPC: 5353350535 | Model: UEi DL279

Compare

PHOENIX II CLAMP METER HVAC

Detachable clamp head
750V AC / 1000V DC
400A AC
2000µA AC / DC
40MO Resistance / Continuity
4000µF Capacitance
-40 ~ 752°F Temperature (K type)
Frequency / Duty Cycle
Non-Contact Voltage
Diode
MIN / MAX display
Worklight
Magnetic mount
Dual display with backlight
Test lead storage
Test lead holder on clamp head
Data hold
Auto off

View Product Details

List Price: $119.95

In Stock:

View Payment Options

Recommended for you

AC Amps Measurement - Jaw input (45Hz to 400Hz)
Range	Resolution	Accuracy	Overload Protection
40A	0.01A	±2.9% +15 dgts	600V
400A	0.1A	±1.9% +8 dgts	600V
DC Low Amps Measurement (test lead input)
Range	Resolution	Accuracy	Overload Protection
400µA	0.01µA	±1.2% +3 dgts	2000µA / 600V
2000µA	0.1µA	±1.2% +3 dgts	2000µA / 600V
AC Low Amps Measurement (test lead input, 45Hz to 400Hz)
Range	Resolution	Accuracy	Overload Protection
400µA	0.01µA	±2.0% +5 dgts	2000µA / 600V
2000µA	0.1µA	±1.5% +5 dgts	2000µA / 600V
*DL289 45Hz to 400Hz True RMS (Crest factor <3:1)
DC Volts Measurement
Range	Resolution	Accuracy	Overload Protection
400mV	0.1mV	±0.5% +4 dgts	600V
4V	1mV
40V	10mV
400V	100mV
1000V	1V	±0.8% +10 dgts
AC Volts Measurement (45Hz to 400Hz)
Range	Resolution	Accuracy	Overload Protection
4V	1mV	±2.0% +5 dgts	600V
40V	10mV
400V	100mV
750V	1V
*DL289 45Hz to 1KHz True RMS (Crest factor <3:1)
Ohms Measurement
Range	Resolution	Accuracy	Overload Protection
400O	100mO	±1.0% +4 dgts	600V
4kO	1O
40kO	10O
400kO	100O
4MO	1kO
40MO	10kO	±2.0% +4 dgts
Diode Test
Range	Open Circuit Voltage	Test Current (typical)	Overload Protection
2.0V	< 3.0V DC	0.25mA	600V
Capacitance Measurement
Range	Resolution	Accuracy	Overload Protection
40nF	0.01nF	±3.5% +6 dgts	600V
400nF	0.1nF
4µF	0.001µF
40µF	0.01µF
400µF	0.1µF
4000µF	1µF
Temperature Measurement (DL279 & DL289 only)
Range	Open Circuit Voltage	Test Current (typical)	Overload Protection
-30° to 14°F (-30° to -10°C)	0.1°F (0.1°C)	±5.4°F (±3.0°C)	30V
15° to 752°F (-9° to 400°C)	0.1°F (0.1°C)	±1.0% +3.6°F (±1.0% +2.0°C)	30V
Frequency Measurement
Range	Resolution	Accuracy	Overload Protection
9.999Hz	0.001Hz	±0.1% +4 dgts	600V
99.99Hz	0.01Hz
999.9Hz	0.1Hz
9.999kHz	1Hz
99.99kHz	10Hz
Minimum frequency: 0.5Hz, DC V offset should be zero Sensitivity: > 1.0V rms
Duty (%) Cycle Measurement
Range	Accuracy	Overload Protection
01. to 99.9%	±(0.2% per kHz +0.1%) +5 count	600V
0.5Hz to 100kHz (pulsewidth > 2usec)
Continuity Measurement
Open Circuit voltage <2.7V	Overload Protection
Threshold Approximately <20O	600V

1

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying 1 review

Most Helpful First | Newest First

UEI products

1.0

So far over the years I have purchased a UEI-DT200 Temp meter in 2001 and it stopped working about 2004 after about 10 uses. I thought I would give them another chance so I purchased this UEI CH1 PHOENIX 2 DL279 IN ABOUT 2010 AND NOW THE DC volts do not work and the OHMS test does not work. I will never buy a UEI product again

Jim on Dec 30, 2014
