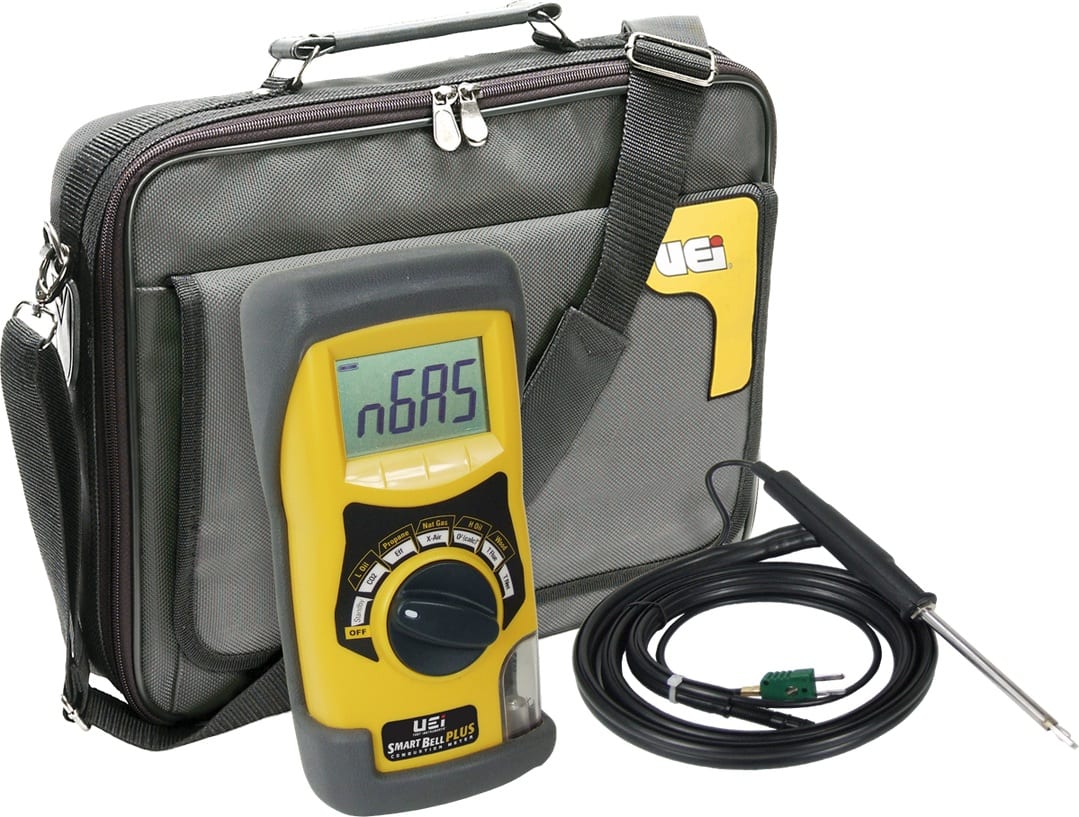

Uei SMARTBELLPLUS Combustion Check Meter

0 reviews | UPC: 005353350620 | Model: Uei SMARTBELLPLUS

Compare

CO2 And O2 COMBUSTION METER

Measures:
- CO
- CO₂
- Temperature
Calculates:
- O₂
- Excess Air
- Efficiency
Real Time Analysis
EOS Technology Sensor Direct CO₂ Measurements No Sensor Replacement 10 Year Life Expectancy
Direct CO Measurements
Pre-Programmed Fuels: Light Oil, Propane, Natural gas, Heavy Oil, and Wood
5 Year Limited Warranty

View Product Details

List Price: $619.95

In Stock:

Recommended for you

Parameter	Range	Resolution	Accuracy
Temperature Flue Temperature Net Temperature²	32-1112˚F (0-600˚C) 32-1112˚F (0-600˚C)	1.0˚F 1.0˚F	±(2%RDG ±3.6˚F(2˚C)) ±(2%RDG ±3.6˚F(2˚C)
Gas Measurement Carbon Monoxide (CO)^1* Carbon Dioxide (CO₂)¹ Oxygen² Efficiency² Excess Air³	1-1999ppm 0-30% 0-21.0% 0-99.9% 0-250%	1ppm 0.1% 0.1% 0.1% 0.1%	±5ppm <100ppm ±5%RDG >100ppm ±0.3% ±0.3% ±0.1%RDG ±0.2%
Dimensions (approx.) Weight Handset Probe	1Lb 7”x2”x3 1/4” 4” stainless steel shaft nominal 36” neoprene hose
Ambient Operating range	32-104˚F, 10-90%RH non-condensing, 850-1100mmHg atmospheric pressure
Battery, Battery Life	(4) AA, >8hours expected using alkaline AA cells

*Smart Bell PLUS ONLY
¹ Using Dry Gases at STP
² Calculated
³ Calculated assuming fuel lean combustion

Gas Detection/Combustion Gas Analyzer/Environ Analyzer Template
Style (Gas Detection)	Hand-Held
O2	Yes
CO	Yes
Combustion Efficiency	Yes
CO2	Yes
CO Resolution	1 PPM
LCD Screen	Yes
CO PPM Minimum	1 PPM
CO PPM Maximum	1999 PPM
Temperature Operating Min	32 F (32 Degrees)
Temperature Operating Max	104 F (104 Degrees)
Test Equipment General Attributes
Warranty	5 YEARS Warranty Limited
Safety Approval	CE
Product Weight	1 LBS
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	United States
Other Information	Handset:: 7”x2”x3 1/4”
