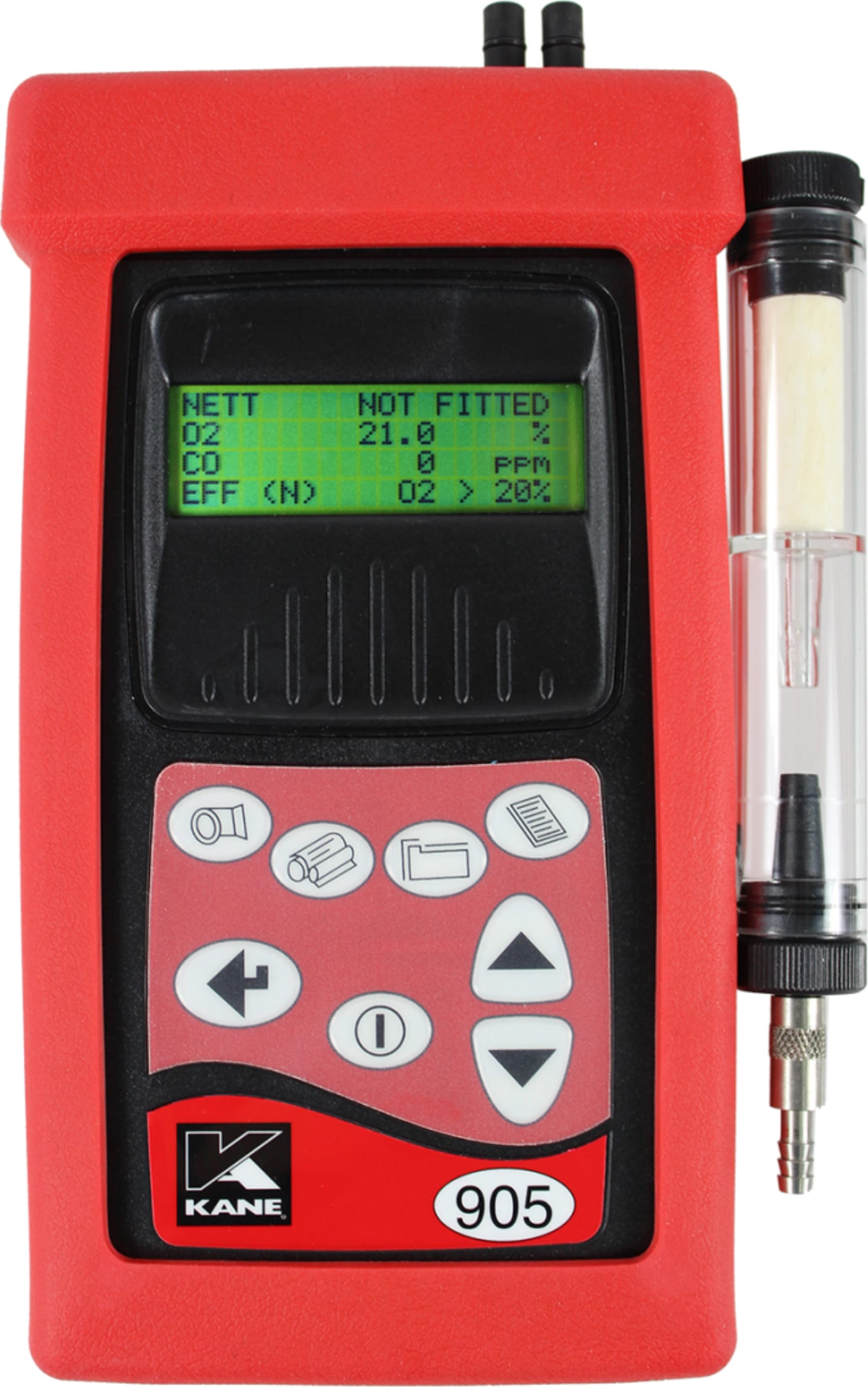

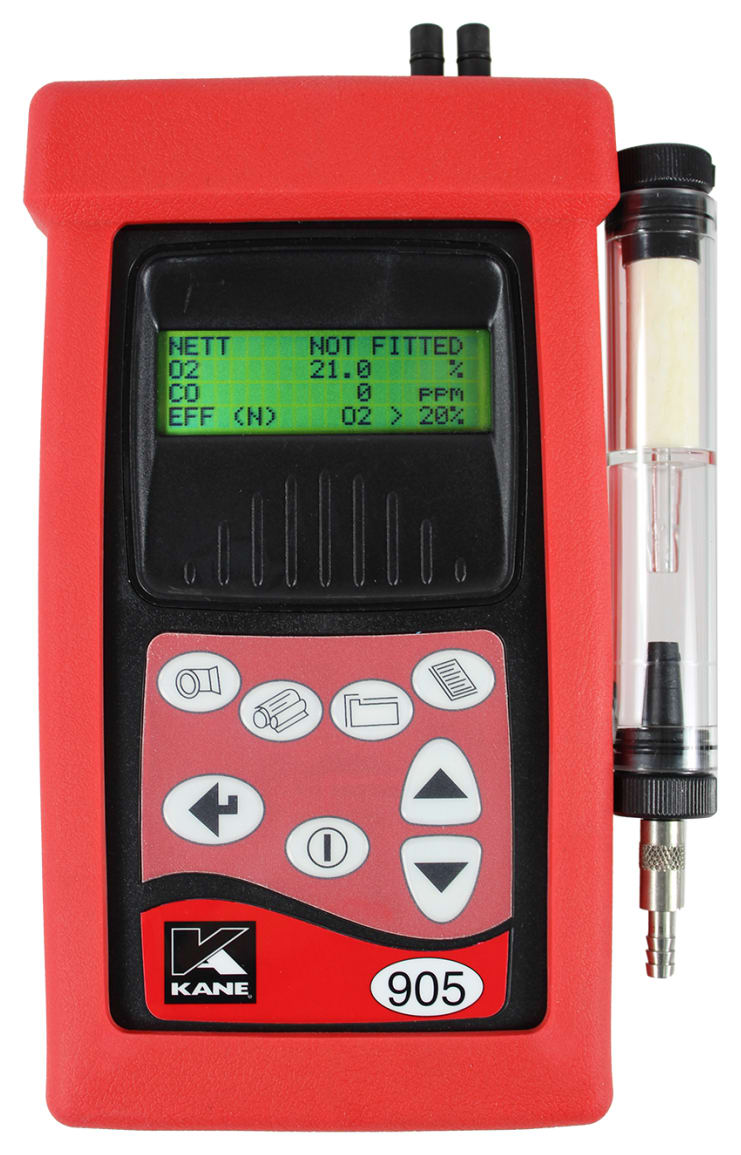

Uei K905CONS Industrial 4 Gas Combustion Analyzer

0 reviews | UPC: 053533507645 | Model: Uei K905CONS

UEi K905 Industrial 4 Gas Combustion Analyzer

Compare

K905 BASE PLUS NO1 and SO2

Infrared printer link with customized printer head
Logs and stores 150 test results
Large character display
Supplied with fluoroplastic lined flue probe
16.5 probe
Fuel types: Natural gas, butane, propane, LPG, 28 sec oil, 35 sec oil, heavy fuel, solid fuel, user fuel
1-Year limited warranty

View Product Details

List Price: $2,572.95

In Stock:

View Payment Options

Recommended for you

Uei K905CONS Industrial 4 Gas Combustion Analyzer

Infrared printer link with customized printer head
Logs and stores 150 test results
Large character display
Supplied with fluoroplastic lined flue probe

The Uei K905 is an industrial flue gas analyzer designed for use in many applications. The K905 is available with several different sensor options, as well as a wireless communication option.

The K905 can log and store 150 test results and is programmed for several different fuel types - natural gas, butane, propane, LPG, 28-sec oil, 35-sec oil, heavy fuel, solid fuel, and user defined fuels.

Applications include:

Installation, commissioning, and service of industrial/commercial oil, gas, or biomass appliances
Safety checks - CO in a room or around an appliance
Combustion performance checks
Combustion efficiency checks
Flue draft

The Uei K905 is available in several configurations. The chart below provides an overview of each:

K905 Sensor Options
UEI Part Number	K905	K905CON	K905CONOX	K905CONS	K905COS
O2 Sensor	X	X	X	X	X
CO Sensor	X	X	X	X	X
Pressure	X	X	X	X	X
Temperature	X	X	X	X	X
NO		X	X	X
NO2			X
SO2				X	X

K905 Commercial Analyzer	Resolution	Accuracy	Range
Temperature Measurement
Temperature Inlet	0.1˚ F/C	±3.6˚F (2.0˚C) ±0.3%/reading	32˚ to 2200˚F (0˚ to 1200˚C) with suitable probe
Temperature Flue gas	0.1˚ F/C	±1.8˚F (1.0˚C) ±0.3%/reading	32˚ to 122˚F (0˚ to 50˚C)
Gas Measurement
Oxygen	0.10%	±0.2%	0 to 25%
CO (H2 compensated)	1 ppm	±5 ppm <100 ppm ±20 ppm <400 ppm ±5% >400 ppm	0 to 4,000 ppm (hydrogen compensated
Carbon Monxide	1 ppm	±20 ppm <400ppm ±5% <5000 ppm ±10% >5000 ppm	0 to 100,000 ppm
Nitric Oxide (low range)	1 ppm	±3 ppm <20 ppm ±5 ppm <100 ppm	0 to 100 ppm
Nitric Oxiode (optional)	1 ppm	±3 ppm <20 ppm ±5 ppm <100 ppm	100 ppm
Sulfur Dioxide (optional)	1 ppm	±5 ppm <100 ppm ±5% >100 ppm	0 to 5,000 ppm
Pressure	0.1 mBar	±5.0% full scale	150 mBar
Carbon Dioxide (calculated)	0.10%	±0.3/reading	0 to 99.9%
Losses (calculated)	0.10%	±1.0%/reading	0 to 99.9%
Efficiency (calculated)	0.10%	±1.0%/reading	0 to 99.9%
Excess air (calculated)	0.10%	±1.0% /reading	0 to 2885%
Temp (Nett) (calculated)	1.0˚ F/C	0.20%	32˚ to 2200˚F (0˚ to 1200˚C)
CO/CO2 ratio (calculated)	0.0001	±0.0001	0 to 0.9999
Poison index (calculated)	0.01%	±0.01	0 to 99.99

Combustion Analyzer Template
Includes NO sensor	Yes
Includes NO2 sensor	No
Includes printer	Yes
Includes SO2 sensor	Yes
Digital device	Yes
Test Equipment General Attributes
HTS/Schedule B Number	9027.10.6000
ECCN Number	EAR99
Country of Origin	China
