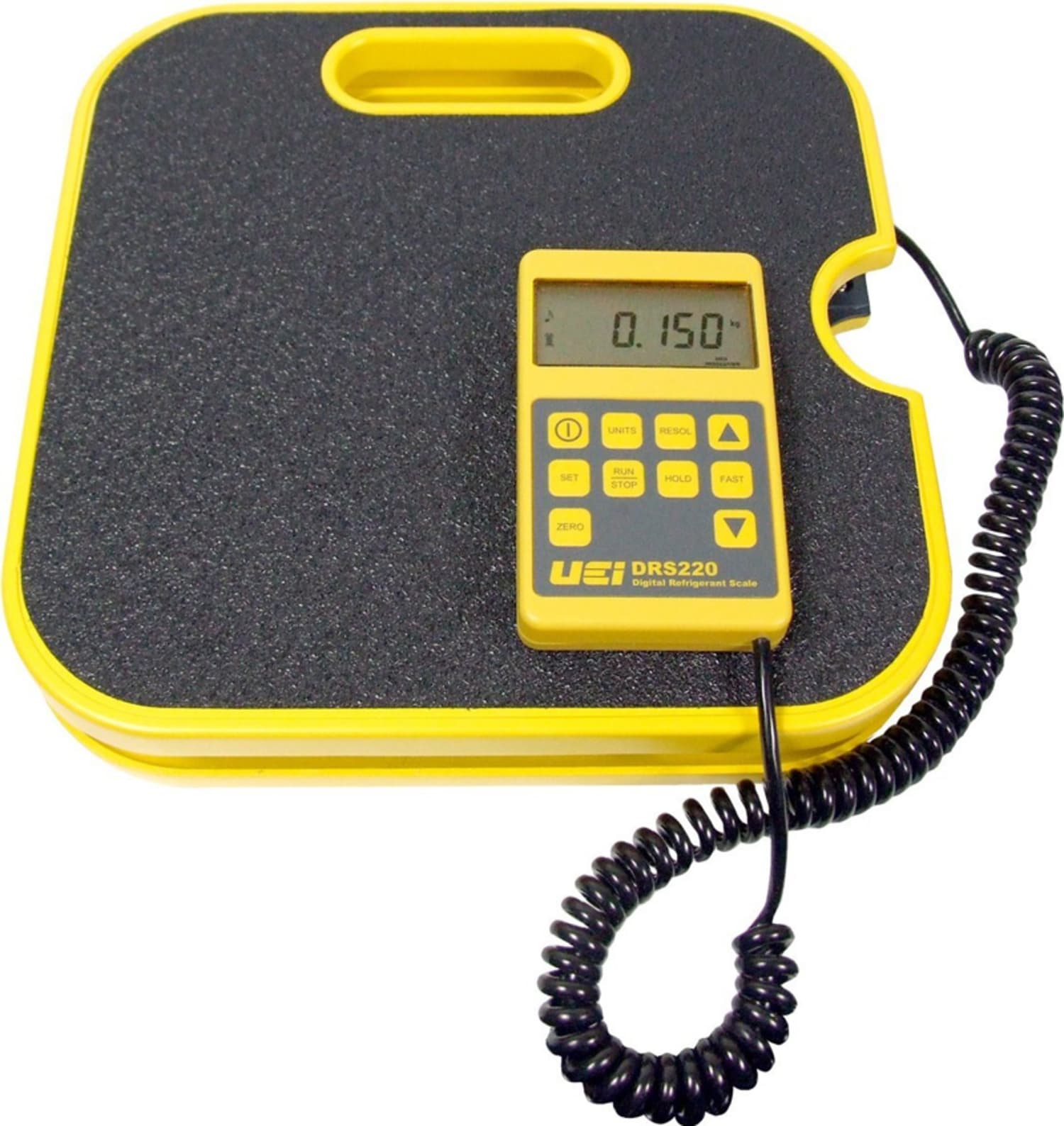

UEi DRS220 Digital Refrigerant Scale

0 reviews | UPC: 053533506242 | Model: UEi DRS220

Compare

DIGITAL REFRIGERANT SCALE

DRS220 Digital Refrigerant Scale
Large, high-visibility LCD display
Measures Weight in kgs and lbs
Built-in memory remembers all previous settings
Refrigerant Tank Capacity Indicator
Rugged, Compact Design
Long Battery Life
High Accuracy and Resolution
Programmable
Can be calibrated in the field with inexpensive reference weights
Expandable with DRSCM Charge module (not included)

View Product Details

List Price: $206.95

In Stock:

View Payment Options

Recommended for you

Uei DRS220 Digital Refrigerant Scale.

The DRS220 is the most accurate and precise refrigerant scale available today with features that cannot be found anywhere else. It is ideal for HVAC and refrigeration service, including critical charging of small refrigeration systems. The DRS220 measures weight in both metric and english units, is programmable, and has a built in alarm to indicate a programmed threshold has been exceeded. Attaching the DRS220 to the DRSCM (sold seperately) allows automatic refrigerant charging for A/C systems.

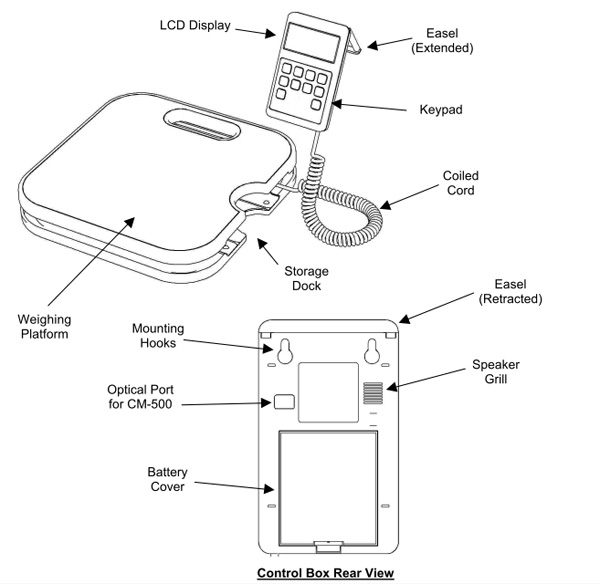

Parts Diagram

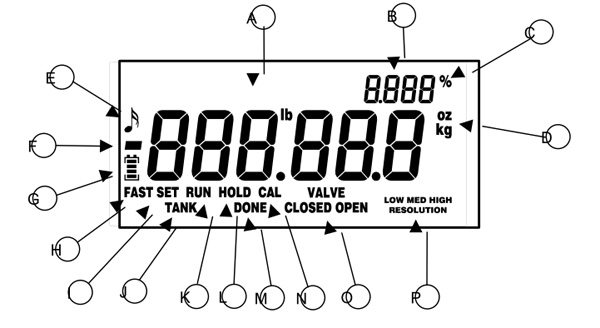

LCD Display


Item	Function
A	Main Numeric Display
B	Alternate Numeric Display
C	Tank Capacity Percent Indication
D	Units Indicators
E	Sound Mute Indicator
F	“Floating” Negative Indicator (Indicates weight removed from platform)
G	Battery Level Indicator
H	Fast Adjustment Indicator
I	Set Mode Indicator ;
J	Tank Capacity Mode Indicator
K	Run Mode Indicator
L	Hold Mode Indicator
M	Program Complete Indicator
N	Calibration Mode Indicator
O	Valve Open/Closed Indicator for use with CM-500
P	Resolution Indicator

Uei DRS220 Digital Refrigerant Scale Specifications
Capacity	100 kilograms (220 Pounds)
Accuracy	0.5% of Reading +/- 1 Least Significant Digit
Resolution	2g, 0.005 lbs., 0.1 oz.
Power	4 x 1.5V ‘AAA’ Alkaline Batteries (6 VDC)
Battery Life	30 hours continuous use
Operating Temperature	0°C – 60°C (32°F – 140°F)
Weight	2.5 kg (5.5 lbs.)
Dimensions	26.7 cm x 26.7 cm x 4.5 cm (10.5” x 10.5” x 1.75”)

Tech Specs

HVAC Equipment and Instruments/Refrigerant HVAC/Charging Scale Template
Maximum Capacity	100 KILOS (220.46 LBS)
Accuracy	0.5% of Reading +/- 1 Least Significant Digit
Test Equipment General Attributes
Product Weight	5.5 LBS
Product Height	3.25 IN
Product Length	12.00 IN
Product Width	11.50 IN
Battery Type	AAA
Power Supply Voltage	Battery Powered
Shipping Height	3.25 IN
Shipping Length	12.00 IN
Shipping Width	11.50 IN
