UEi C20KIT Combustion Start Up Meter Kit

0 reviews | UPC: 053533506303 | Model: UEi C20KIT

Compare

COMBUSTION METER KIT

Measures CO, CO2 and pressure
C20 combustion meter
- Measures: CO, CO2
- Real Time Analysis
- Electro-Optical Sensor - 10 Year Life Expectancy, No Sensor Replacement
- Direct CO Measurements
- Direct CO2 Measurements
- 5 Year Limited Warranty
EM152 differential manometer
- Range of -60 to +60 in H2O
- Differential pressure
- Dual input differential in 11 scales
- Hold/Min/Max/Avg
- Record with elapsed time stamp
- Pressure zero
- Backlit display
- Relative time clock
- Low battery indicator
- 1-Year limited warranty

View Product Details

List Price: $657.95

In Stock:

View Payment Options

Recommended for you

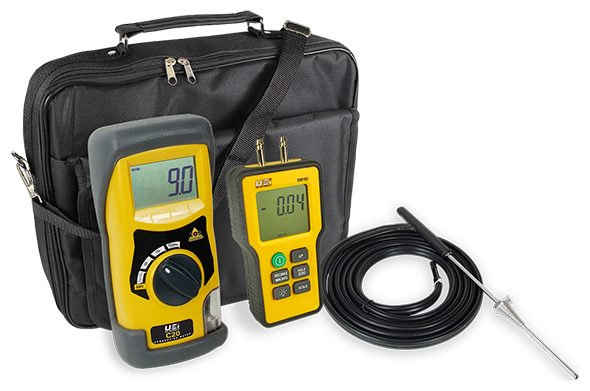

UEi C20KIT Combustion Start Up Meter Kit

UEi C20KIT

Kit includes two meters
C20 combustion meter
EM152 differential manometer

The UEi C20KIT contains two testing products and is designed for the setup of combustion equipment. The kit includes the C20 combustion set up meter, as well as an EM152 differential manometer.

The C20 features an electro-optical sensor with a 10 year life expectancy - this eliminates the need for costly replacement of oxygen sensors, and reduces overall cost of ownership.

The EM152 manometer has a range of -60 to +60 in H2O, and can show dual input differential in 11 scales.

C20 Specifications
Temperature
	Range	Resolution	Accuracy
Flue Temperature	32-1112 °F (0-600 °C)	1.0 °F	±(2%RDG ±3.6 °F(2 °C))
Net Temperature	32-1112 °F (0-600 °C)	1.0 °F	±(2%RDG ±3.6 °F(2 °C))
Gas Measurement
	Range	Resolution	Accuracy
Carbon Monoxide (CO)	1-1999ppm	1ppm	±5ppm <100ppm ±5%RDG>100ppm
Carbon Dioxide (CO2)	0-30%	0.10%	±0.3%
Oxygen	0-21.0%	0.10%	±0.3%
Efficiency	0-99.9%	0.10%	±0.1%RDG
Excess Air	0-250%	0.10%	±0.2%
Dimensions (approx.)
Weight	1Lb
Handset	7"x2"x3 1/4"
Probe	4" stainless steel shaft, nominal 36” neoprene hose
Ambient Operating range	32-104 °F, 10-90%RH non-condensing, 850-1100mmHg atmospheric pressure
Battery, Battery Life	(4) AA, >8hours expected using alkaline AA cells

EM152 Specifications
Operating Temperature	32° to 104°F (0° to 40°C)
Storage Temperature	14° to 140°F (-1° to 60°C)
Backlight	Display Backlight
Over-range	ERR1 or ERR2 is displayed
Dimensions	5.27" X 3" X 1.5"
Item Weight	6.2 oz.
Calibration	Calibration
Battery Type	9V X 1

Function	Ranges	Resolution	Accuracy (77˚F)
Bar	± 0.200	0.001	± 0.3% Full Scale Ouput
Ounces/ Sq. Inch	± 46.60	0.01
PSI	± 2.900	0.001
inHg	± 5.904	0.001
mBar	± 200.0	0.1
mmHg	± 150.0	0.1
kPa	± 20.00	0.01
Kg/Sq. cm	± 0.204	0.001
In H2O	± 80.27	0.01
Ft H2O	± 6.689	0.001
cm H2O	± 203.9	0.1

Tech Specs

Gas Detection/Combustion Gas Analyzer/Environ Analyzer Template
Style (Gas Detection)	Hand-Held
CO	Yes
Pressure (Draft)	Yes
Combustion Efficiency	Yes
CO2	Yes
CO Resolution	1 PPM
CO PPM Minimum	1 PPM
CO PPM Maximum	1999 PPM
Temperature Operating Min	0 C (32 Degrees)
Temperature Operating Max	40 C (104 Degrees)
Test Equipment General Attributes
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	United States
