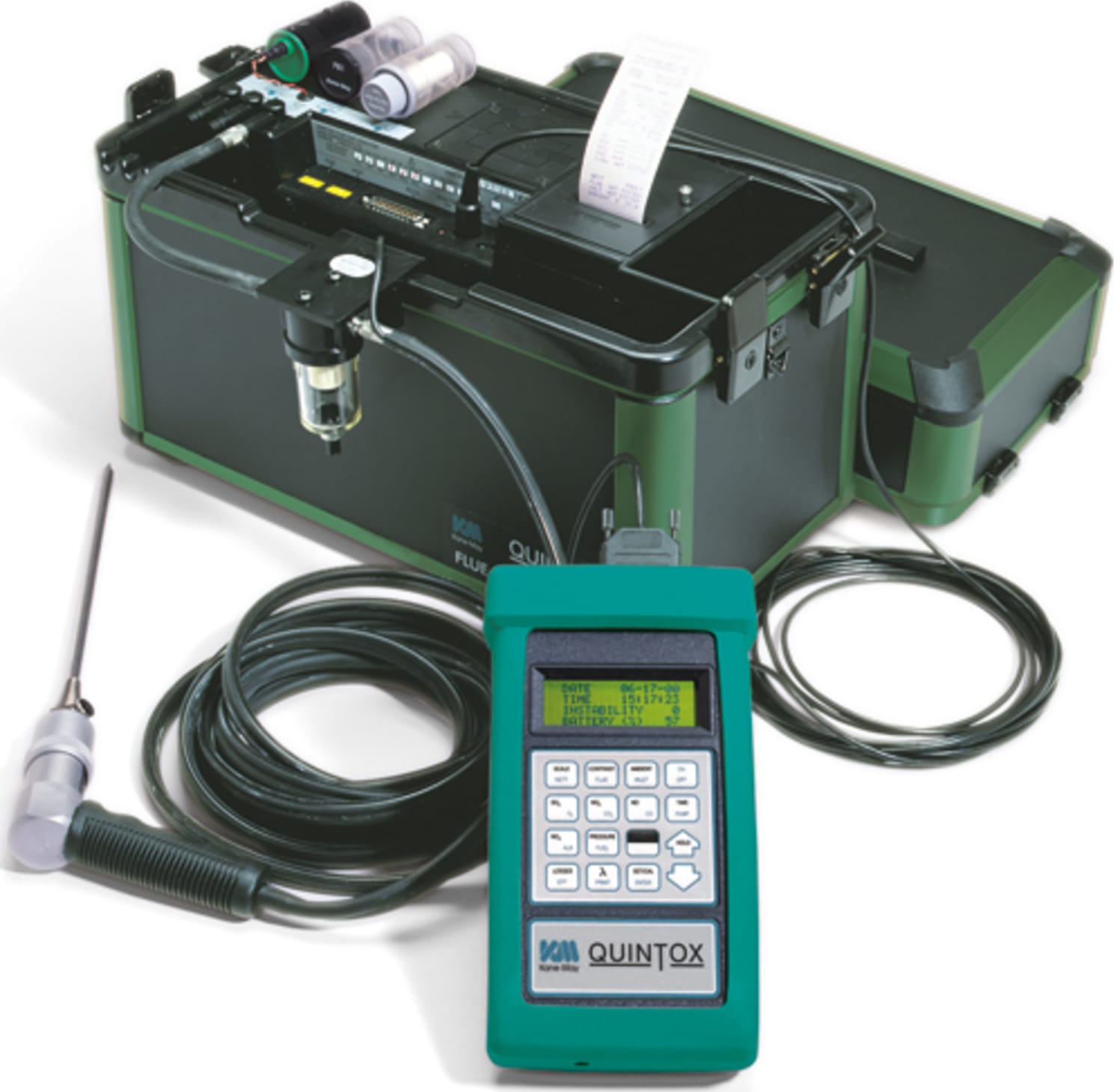

UEi KM9106/P Quintox Analyzer with O2 and H2 Compensated O2 Sensor

0 reviews | UPC: 005353350458 | Model: UEi KM9106/P

Compare

COMBUSTION ANALYZER,UPGRADABLE

Measures: O2, CO, Inlet temperature, Flue temperature
Calculates: Efficiency, CO2, Net stack temperature, Losses, Excess Air, CO/CO2, Poison Index, Net Temperature Differential
Integral printer
15' handset cable & 15’ probe hose w/1000˚F, 12” shaft
Nearly 2000 test memory slots
Rugged, lockable case
AC power pack
1 Year limited warranty
2 Year limited warranty on O2 sensor

Pre Programmed Fuels: Natural Gas, Butane, Light Oil, Heavy Oil, Coal, Coke, Propane, Anthracite, LP Gas, Town Gas, Natural Gas 2, Gas Core and (1) User Defined Fuel

View Product Details

List Price: $5,122.14

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Accessories
General Accessories

for the UEi KM9106/P

UEi SM10617 FLUE PROBE HANDLE AND TUBING (KM9106/9, K9206)

Catalog: SM10617

(0)

In Stock!

Add to Cart

UEi SF1 SO2 Filter Quintox (KM9106/P, K9206)

Catalog: SF1

(0)

In Stock!

Add to Cart

UEi SF9 Chemical (Sulfur) Filter (K9206)

Catalog: SF9

(0)

In Stock!

Add to Cart

The KM9106/P analyzer measures combustion efficiency and emissions from any industrial, commercial or residential heating appliance. It can be configured to measure emissions from engine exhaust, providing the complete information required by your air regulatory authority. The KM9106/P is easy to operate. It also features an integral printer, easily changeable particle and SO2 filters, and rechargeable battery with AC power pack. The standard unit is upgradeable to meet the needs demanding professional environments. One year limited warranty (two year limited warranty on O2 sensor).

Temperature
Parameter	Resolution	Accuracy	Range
Temp. Measurement	0.1°F/C	±1°F/°C, ±0.3% of rdg	32° - 2140°F
Gas Measurement Oxygen (O2) 2 year warranty	0.1%	-0.1% / +0.2%	0 - 25%
Carbon Monoxide (CO) Hydrogen compensated	1 ppm	± 20 ppm <400 ppm ±5% of rdg <2000 ppm ± 10% of rdg >2000 ppm	0 - 10,000ppm
Carbon Dioxide (CO2) Calculated	0.1%	±0.20%	0 - fuel value
Nitric Oxide (NO) Nitrogen Dioxide (NO2) Sulphur Dioxide (SO2)	1 ppm	±5 ppm <100 ppm ±5% of rdg >100 ppm	Listed in optional sensor section
Hydrocarbons (CH4)	0.01%	<1%: ±0.05%
Pressure (draft)	0.01mbar/in WG	±0.05% full scale
Optional Sensors
KMNO1/Q	Nitric Oxide sensor		0 - 5,000 ppm
KM2N01/Q	Nitric Oxide sensor		0 - 10,000 ppm
KMNO2/Q	Nitrogen Dioxide sensor		0 - 1,000 ppm
KMSO2/Q	Sulphur Dioxide sensor		0 - 5,000 ppm
KMHC13/Q	Hydro carbon sensor (Methane)		0 - 5% LEL
KMPS2?Q	Pressure sensor (draft)		0 - 150 mbar
General Specifications
Dimensions	17.75” long x 9” wide x 13.75” high
Weight	21 lbs.

Tech Specs

Test Equipment General Attributes
Product Height	13.75 IN
Product Length	17.75 IN
Product Width	13.75 IN
Shipping Height	13.75 IN
Shipping Length	17.75 IN
Shipping Width	13.75 IN

Start typing your question...

Answers (1) - Asked by Anonymous

I have this question too (0)

This varies by model. The newer models use IR based sensors with an expected life of 10 years or more. The CO sensors in these newer units have an expected 5 year life. Our traditional electrochemical sensor based analyzers have a one-year warranty on the sensors, with an expected life span of two years.

I found this helpful (0)

Inaccurate? (0)

Answered by Anonymous
