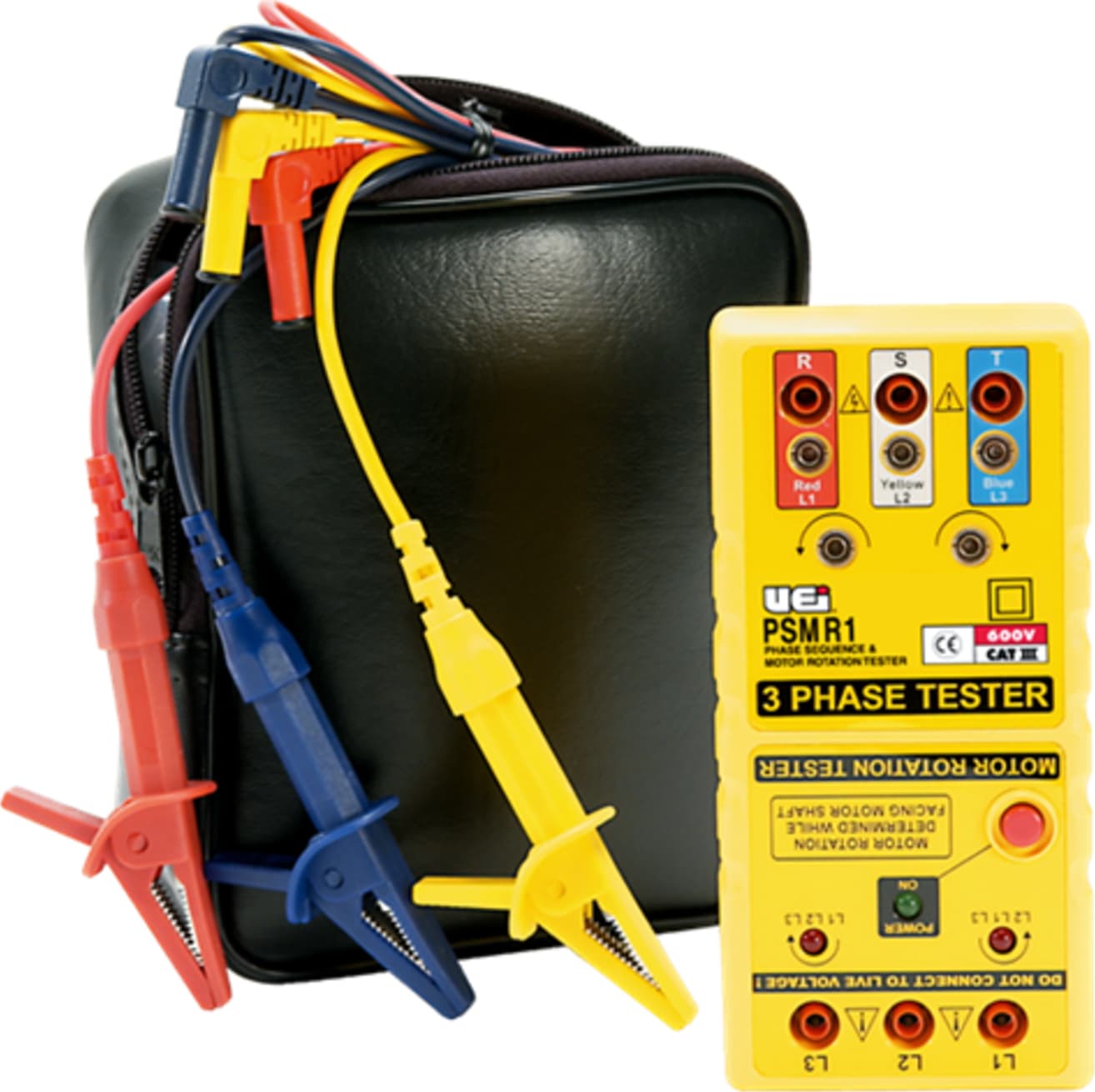

UEi PSMR1 - Phase Sequence Motor Rotation Meter

0 reviews | UPC: 053533505085 | Model: UEi PSMR1

Compare

Phase Sequence Motor Rotation Meter

Open phase indication
Phase rotation indication
Motor rotation indication
Identifies 3-phase sequence
Checks for open phases
Battery operated

View Product Details

List Price: $99.95

In Stock:

View Payment Options

Recommended for you

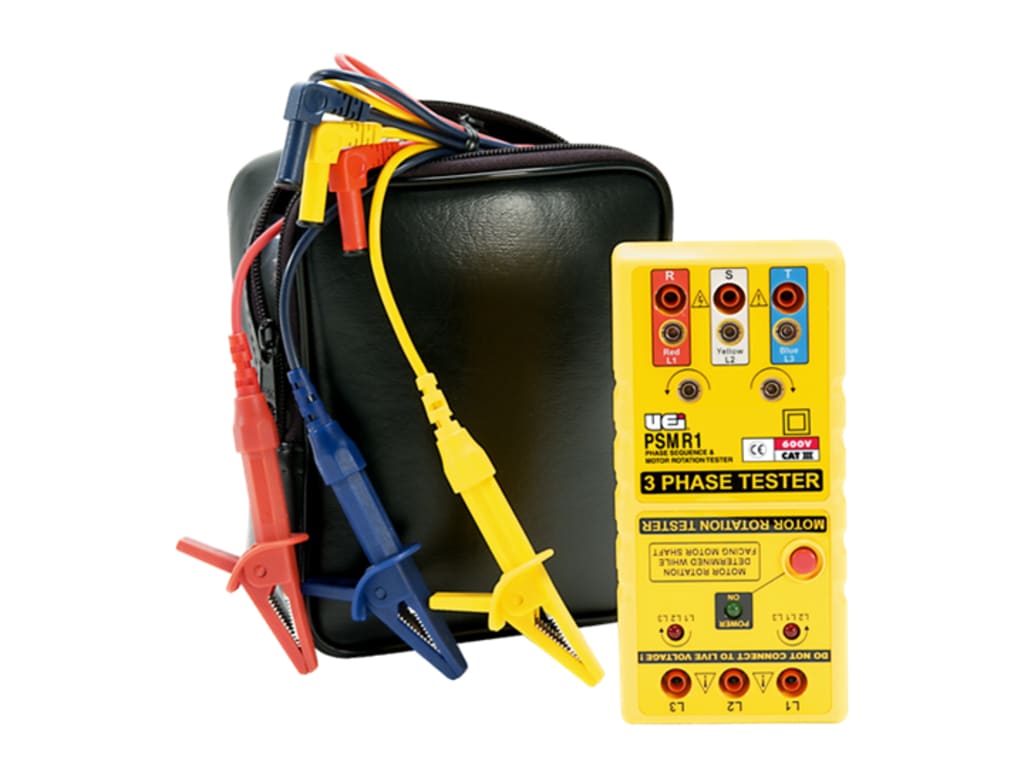

Uei PSMR1

Open phase indication
Phase rotation indication
Motor rotation indication

Phase Sequence Motor Rotation Meter

Increase safety and speed for motor diagnosis. The PSMR1 combines two meters with three functions. It includes a 3-phase sequence indicator with a motor rotation tester.

Input Voltage	100V AC up to 600V AC max
Frequency Range	45 to 70 Hz
Circuit Structure	All electronic (not mechanical)
Power Requirement	DC 9V alkaline battery
Power Consumption	Consumption current approx. 14mA of motor rotation fieldof tester. AC power consumption approx. 7mA per phase rotation field of indicator.
Installation Category	EN61010-1 600V CAT III
Dimension	6.02" (L) x 2.83" (W) x 1.37" (H) 153mm x 72mm x 35mm
Weight	Approx. 182g including battery
Accessories	Test leads (red, yellow and blue), soft carrying case, instruction manual

Tech Specs

Phase / Motor / Transformer Testing/Phase and Rotation Meters Template
Maximum Frequency Range	70 MHz
Phases	Three phase
Rotation Direction	Yes
Maximum Voltage	600 V
Type (Phasing Sequence)	Portable
Test Equipment General Attributes
Warranty	3 YEARS
Warranty Details	3-Year limited
Safety Approval	UL
Product Height	3.00 IN
Product Length	10.50 IN
Product Width	7.75 IN
Shipping Height	3.00 IN
Shipping Length	10.50 IN
Shipping Width	7.75 IN
