• This configuration includes O2, CO (10,000ppm) and NO (Nitric Oxide) sensors and a printer
• Several configurations available – see below for details
• Measures: O2, CO, inlet temperature, flue temperature, differential pressure/ draft
• NO (Nitric Oxide) range is 0-5000ppm with 1ppm resolution
• Calculates: efficiency, CO2, net temperature differential, losses, excess air, CO/CO2 ratio, high level concentration CO

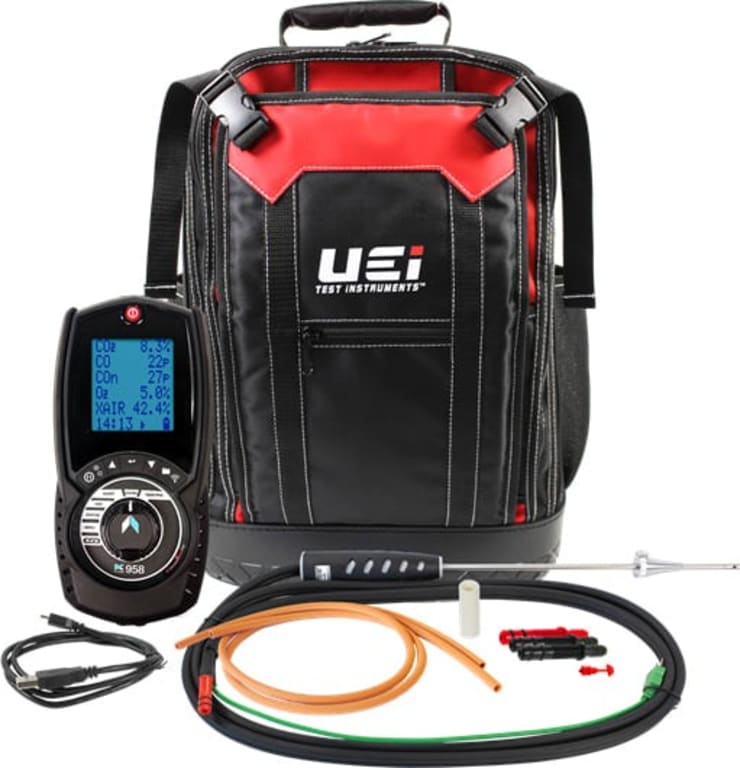

The KANE 958 is a commercial and industrial combustion analyzer available in a variety of configurations. The KANE 958 has eight pre-programmed fuels (Natural Gas, LPG, Light Oil, Bio Gas, Coke, Wood, Heavy Oil, Coal) and can run for up to eight hours with continuous use with the pump running.

The KANE958 is available in several packages with a choice of sensors and accessories. The chart below provides an overview of each.

For users requiring a configuration not shown above

The chart above details several popular configurations of the KANE 958, however, it is possible to purchase the base model 958 with a custom combination of sensors including CO (low or high), NO, NO2 and SO2.

• Choose your CO sensor

        o Standard - H2 compensated 10,000 ppm

        o Option - Replace Standard CO sensor with 0 to 100,000 ppm High Range CO sensor (Part number KANE-HIGHCO)

• Choose up to 2 more sensors

       o NO Sensor 0 to 5,000 ppm (Part number KANE-NO)

       o NO2 Sensor 0 to 5,000 ppm (Part number KANE-NO2)

       o SO2 Sensor 0 to 5,000 ppm (Part number KANE-SO2)

• Choose your accessories

       o Printer, gas conditioning unit (NO2, SO2), DTHA2 adapter, pipe clamp probes, oil kit and more
