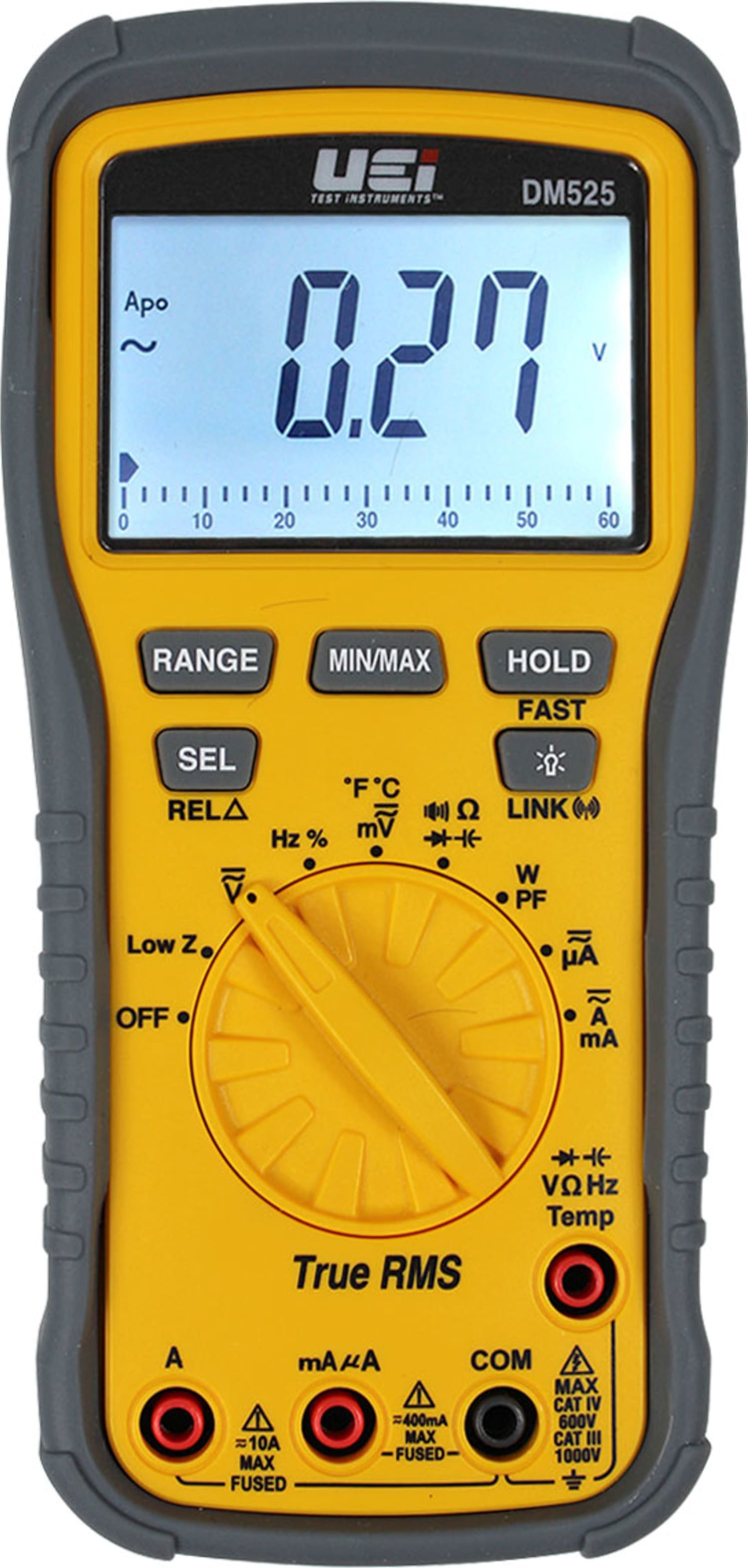

A. Worklight
B. Apo: Auto power off after 30 minutes of use. Press and hold the HOLD button while turning the meter on to disable Apo.
C. Digital Backlit Display
D. Bar graph: 24 segments, displays when in Low Z, Volts AC/DC, mV AC/DC, Ohms, Continuity, Diode, μA AC/DC, mA AC/DC, and Amp AC/DC modes.
E. Range Button:
Press to change from auto-ranging to manual ranging.
Press repeatedly to select the proper range.
Press and hold to return to auto range (AT will be displayed on screen).
F. Min/Max Button:
- Press to enter MAX/MIN mode.
- In the V, μA, mA, or Amps functions, either select AC/DC or change to manual ranging before pressing this button to enter MAX/MIN mode.
- Press repeatedly to alternate between Maximum and Minimum readings.
- Press and hold to return to live readings
G. Select Button: Press to select AC, DC or Auto Selection in the following functions: Voltage, μA, mA, Amps.
H. Function Dial : Turns on the meter and is used to select the function.
I. Category Max Indicator: Maximum CAT Rating for fused input jacks.
- Multifunction input port used for measuring: AC or DC volts, resistance, continuity, diode, Amps, mA, μA.
- Use CATIII test leads or higher.
I. Hold/Fast Button:
Press to hold the reading on display. Press again to return to live reading.
Press to enter Fast MAX/MIN mode in MAX/MIN mode.
Press again to return to normal MAX/MIN mode.
J. Back Light Button: Press on the backlight. Press again to turn it off. The backlight duration is 1 minute.
K. Recess for magnetic hanger
L. Test Lead Holders
M. Protective Rubber Boot
N. Battery Cover (under protective rubber boot)
O. Kick Stand
P. Serial Number (under kickstand)
