• Maximum AC current = 600 A
• Maximum DC current = 600 A
• Maximum AC voltage = 1000 V
• Maximum DC voltage = 1000 V
• True RMS = Yes

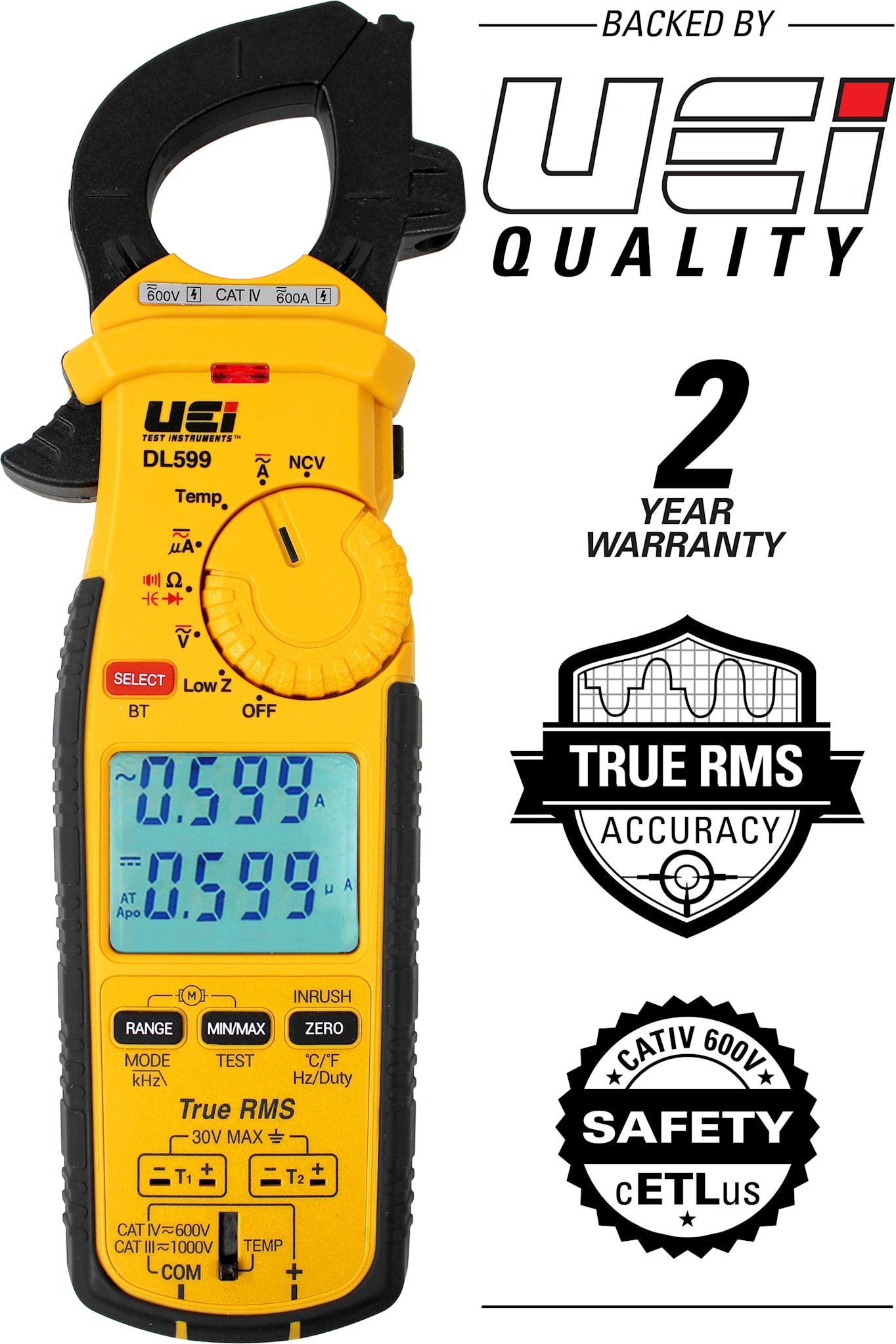

The UEi DL599 is a wireless TRMS clamp meter with three-phase and imbalance motor tests. In addition to the standard clamp meter functions and features, the clamp meter tests for three-phase motor rotation and for unbalanced motor loads.

Functions:

• 3-Phase Motor Rotation
• Motor Unbalanced Test
• Low Pass Filter
• 1000V AC/DC
• 600A AC/DC
• 2000µA
• 60MΩ Resistance
• Capacitance 9999µF
• Diode/Continuity
• Temperature: -342° to 2462°F
• Frequency/Duty Cycle
• LRA Inrush
• Low Z
• NCV Detection

Features:

• Min/Max/Average
• Hold
• Visible high-voltage alert
• Auto volts and amp selection
• Backlit dual display and work light
• Built-in magnet with hanging strap
• Auto/manual ranging
• Input jack lock
• Battery compartment latches
• Tet lead storage
• Over molded grip
• Auto calibration
• Auto power off
• Low battery indicator

A. Clamp: Measure inductive AC/DC current. Opens to 1.25” (32.0mm).

B. Conductor Alignment Marks: Use to aid the visual alignment of a conductor when measuring inductive amperage. Greatest accuracy is achieved when the conductor inside the clamp is centered at the intersection of these marks.

C. Worklight: Lights clamp area in dark work environments.

D. Category Max Indicator: Maximum CAT Rating for clamp jaw.

E. NCV Alert Light: Indicates voltage when in NCV (Non Contact Voltage) mode and High Voltage alert.

F. Clamp Lever: Opens and closes current clamp jaw.

NOTE: The clamp uses a high-tension spring to close the jaw. Do not allow fingers or objects to become pinched in the base as the jaws close.

G. Rotary Selector Dial: Set Rotary Selector Dial desired function

H. SELECT/Wireless (BT) Button:

• Press to select AC or DC on Low Z setting, AC or DC on voltage setting, AC or DC on Amps setting.
• Press to activate Ohms, Continuity, Diode, Capacitance on Ohms/Continuity/Diode/Capacitance setting; AC or DC on Low amps setting; T1, T2, T1 - T2 on temperature setting.
• Press and Hold to activate Wireless mode.

I. Range/Mode/kHz Button:

• Press to set manual range desired
• Press and hold Range/Mode/kHz Button to activate Low filter mode

J. Min/Max/Test Button:

• Press to capture Max reading
• Press again to capture Min reading
• Press again to capture Avg reading
• Press and hold return to Live readings
• Press and hold Min/Max/Test Button and Range/Mode/kHz Button to activate Motor measurement test mode

K. Category Max Indicator: Maximum CAT Rating for input jacks.

L. Test Lead Input Jacks: Multifunction and Positive input jacks.

• Multifunction input port used for measuring: AC or DC volts, resistance, continuity, diode, capacitance, AC or DC µA.

M. Wire Separation Tab/ NCV sensor: Use to isolate an individual wire from a bundle for testing. NCV sensor detects live voltage

N. Test Lead Holder

O. Hand Guide: Used as a point of reference for the operator’s safety

P. Hold/Worklight/ Back light Button:

• Press to hold the reading on the display. Press again to return to live reading
• Press and hold to turn on Worklight and Back light. Press and hold again to turn off
• Worklight and Backlight turn off after 60 seconds

Q. Display:

• High contrast dual display with backlit
• Amps (AC/DC) reading will always display on upper display

R. LRA Inrush/Zero/˚C/˚F/Hz/Duty Button:

• Press to Zero the DC Amps reading
• Press to enter LRA Inrush mode (See page 13 for details) (must be in AC Volts mode first)
• Press again to return to live readings
• Press and hold to select ˚F or ˚C in temperature setting

S. K-Type Temperature Probe Inputs: T1 (Left) and T2 (Right))

T. Input Jack Lock: Switch to use Temperature or Test lead inputs

U. Built-in versatile magnet to use as a mount or as a strap

V. Battery Cover: Easy access for replacing batteries without breaking calibration seal.

W. Battery Compartment Latches

X. Serial Number
