• CAT IV 600V rating
• AC Volts: 750 VAC
• DC Volts: 1000 VDC
• AC current (amps): 600A AC
• DC current (amps): 600A DC

Circuits in molex plugs, and diode malfunctions. Measure capacitance, voltage, microamps, circuit continuity, resistance, and temperature via K-Type thermocouples. Flame sensing. Check system boards and live wires. Product includes 2 year warranty.

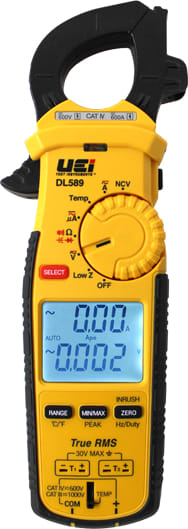

A. Clamp: Measure inductive AC/DC current. Opens to 1.25” (32.0mm).

B. Conductor Alignment Marks.

C. Work light.

D. Category Max Indicator: Maximum CAT Rating for clamp jaw.

E. NCV Alert Light: Indicates voltage when in NCV (Non-Contact Voltage) mode and High Voltage alert.

F. Clamp Lever: Opens and closes current clamp jaw.

G. Rotary Selector Dial: Set Rotary Selector Dial desired function.

H. SELECT Button.

I. Range/°C°F Button.

J. Min/Max/Avg/Peak Button.

K. Category Max Indicator: Maximum CAT Rating for input jacks.

L. Test Lead Input Jacks: Multifunction and Positive input jacks.

M. Wire Separation Tab/ NCV sensor: Use to isolate an individual wire from a bundle for testing.

N. Test Lead Holder

O. Hand Guide: Used as a point of reference for the operator’s safety.

P. Hold/ Worklight/ Back light Button.

Q. Display

R. LRA Inrush/Zero/Hz/Duty Button

S. K-Type Temperature Probe Inputs

T. Input Jack Lock

U. Built-in versatile magnet to use as a mount or as a strap

V. Battery Cover

W. Battery Compartment Latches

X. Serial Number

• Rotate Battery Compartment Latches to open position
• Remove battery cover
• Replace the old batteries with 4 new (AAA) batteries
• Replace the battery cover
• Rotate Battery Compartment Latches to lock
