• CAT III 600 V rating
• AC Volts: 750 VAC
• DC Volts: 1000 VDC
• AC current (amps): 600A
• Resistance (Ohms): 60MΩ

Measure capacitance, voltage, circuit continuity, resistance, temperature via K-Type thermocouples and diode malfunctions. Check system boards and live wires.

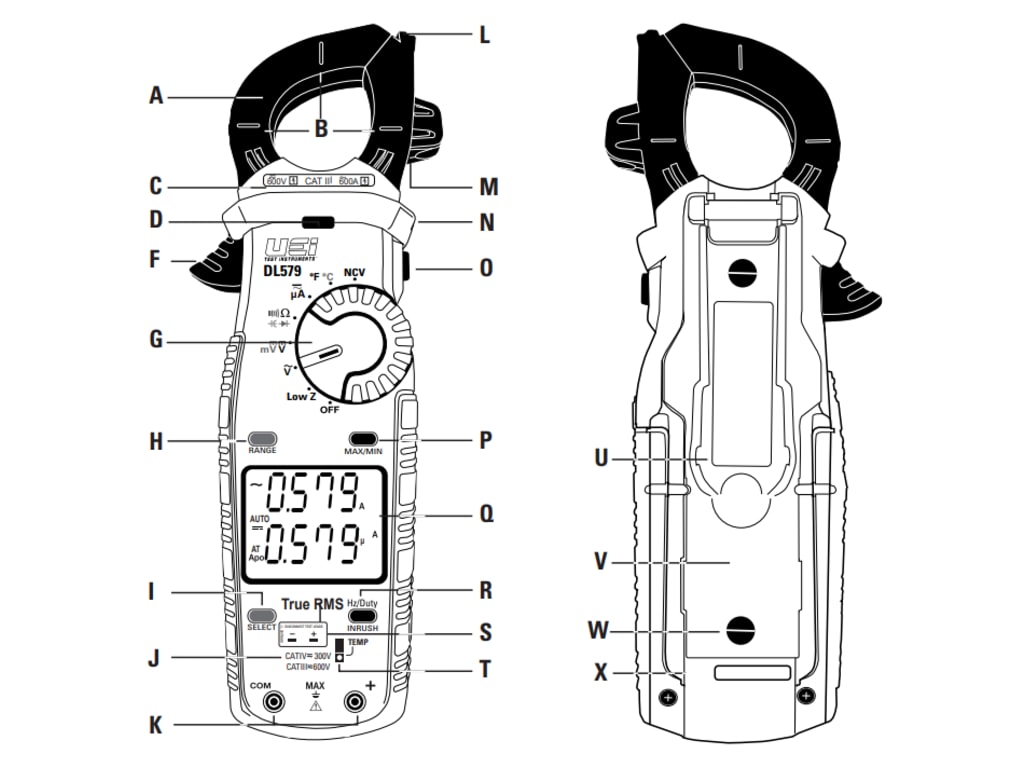

A. Clamp: Measure inductive AC current. Opens to 1.25” (32.0mm).

B. Conductor Alignment Marks:

C. Category Max Indicator: Maximum CAT Rating for clamp jaw.

D. NCV Alert Light:

F. Clamp Lever: Opens and closes current clamp jaw.

G. Rotary Selector Dial: Set Rotary Selector Dial desired function.

H. Range Button: Press to set the manual range desired.

I. SELECT Button.

J. Category Max Indicator: Maximum CAT Rating for input jacks.

K. Test Lead Input Jacks: Multifunction and Positive input jacks.

L. Wire Separation Tab/ NCV sensor: Use to isolate an individual wire from a bundle for testing. NCV sensor detects the live voltage.

M. Test Lead Holder

N. Hand Guide: Used as a point of reference for the operator’s safety.

O. Hold/Backlight Button.

P. Min/Max Button

Q. Display

R. Inrush/Hz Duty Button

S. K-Type Temperature Probe Inputs

T. Input Jack Lock

U. Built-in versatile magnet to use as a mount or as a strap (optional)

V. Battery Cover

W. Battery Compartment Latches

X. Serial Number

• Rotate Battery Compartment Latches to open position
• Remove battery cover
• Replace the old batteries with 2 new (AAA) batteries
• Replace the battery cover
• Rotate Battery Compartment Latches to lock
