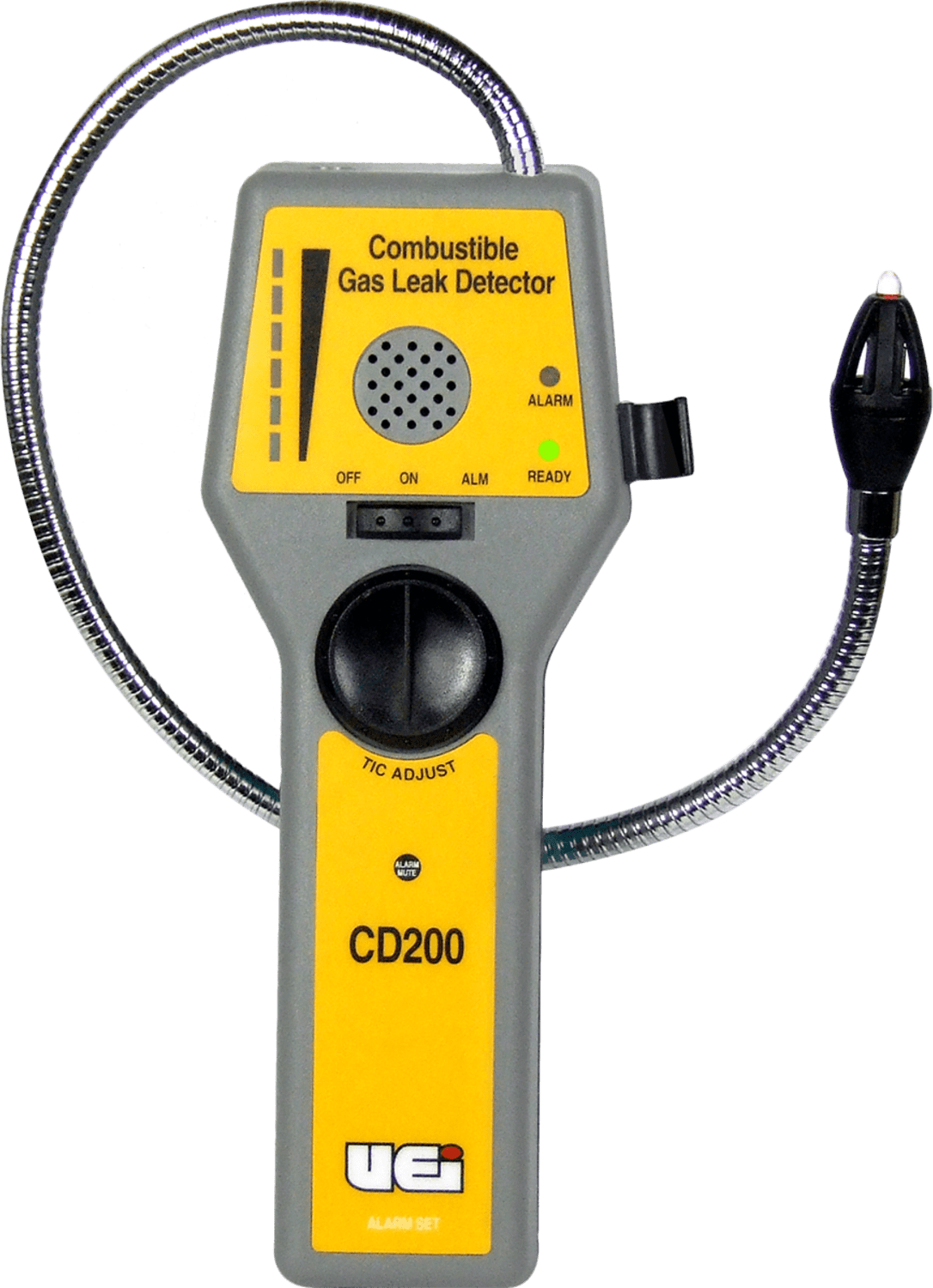

UEi CD200 - COMBUSTIBLE GAS LEAK DETECTOR

0 reviews | UPC: 053533503920 | Model: UEi CD200

Compare

COMBUSTIBLE GAS LEAK DETECTOR

50 ppm minimum detection
Long 18" gooseneck
Visual leak detection by color LED's
Separate user adjustable alarms for predetermined level detection
Precision sensor detects even the smallest leaks
"Tip-light" in sensor cap illuminates the search area
Adjustable tick rate to locate leaks quickly and easily
Fast response time of less than two seconds to 40% LEL
Headphone jack
3 Year limited warranty

View Product Details

List Price: $284.95

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

General Accessories

for the UEi CD200

UEi RS1010 Sensor Cap (CD100A/ CD200)

Catalog: RS1010

(1)

In Stock!

Add to Cart

Uei CD200

50 ppm minimum detection
Long 18" gooseneck
Visual leak detection by color LED's
Separate user adjustable alarms for predetermined level detection
A precision sensor detects even the smallest leaks

COMBUSTIBLE GAS LEAK DETECTOR

The CD200 has a long, slim gooseneck probe and a bright LED tip light to find combustible gas leaks in tight areas. Its adjustable alarm, easy one-hand operation, and impact-resistant storage case add up to value and convenience.

Size	8 3/4” x 3 1/4” x 2 1/ 2 ” (Add 1” to height and width to account for coiled probe)
Probe length	18” (46 cm)
Weight	Batteries installed 16.0 oz. (450 g )
Power requirements	Four AA alkaline batteries
Average battery life	Approximately 12 hours (continuous use)
Sensitivity	< 50 PPM methane in air
Sensor	Solid state conductivity (semiconductor)
Duty cycle	Continuous
Typical response time	Less than 2 seconds for maximum response with 40% LEL methane in air stimulus
Typical recovery time	Less than 4 seconds recovering from 40% LEL methane in air
Warm up period	One minute average
Alarm	Adjustable from 10 to 40% LEL - methane in air (Can be calibrated for other gasses)
Visual level indicators	Six tic rate scaled LED indicators, changing with gas concentration levels from green to red (including relative, not specific quantities)

Tech Specs

Gas Detection/Combustible Gas Detector Template
Indicator	Audible
Minimum Sensitivity	50
Response Time	2 SECONDS (2 s)
Gases Detected	Acetone, Butane, Ethanol, Gasoline, Industrial Solvents, Methane, Naptha, Paint Thinners, Propane
Goose Neck	Yes
Test Equipment General Attributes
Warranty	3 YEARS
Warranty Details	3-Year limited
Product Height	4.00 IN
Product Length	13.50 IN
Product Width	10.00 IN
HTS/Schedule B Number	9027.10.2000
ECCN Number	EAR99
Country of Origin	United Kingdom
Shipping Height	4.00 IN
Shipping Length	13.50 IN
Shipping Width	10.00 IN
