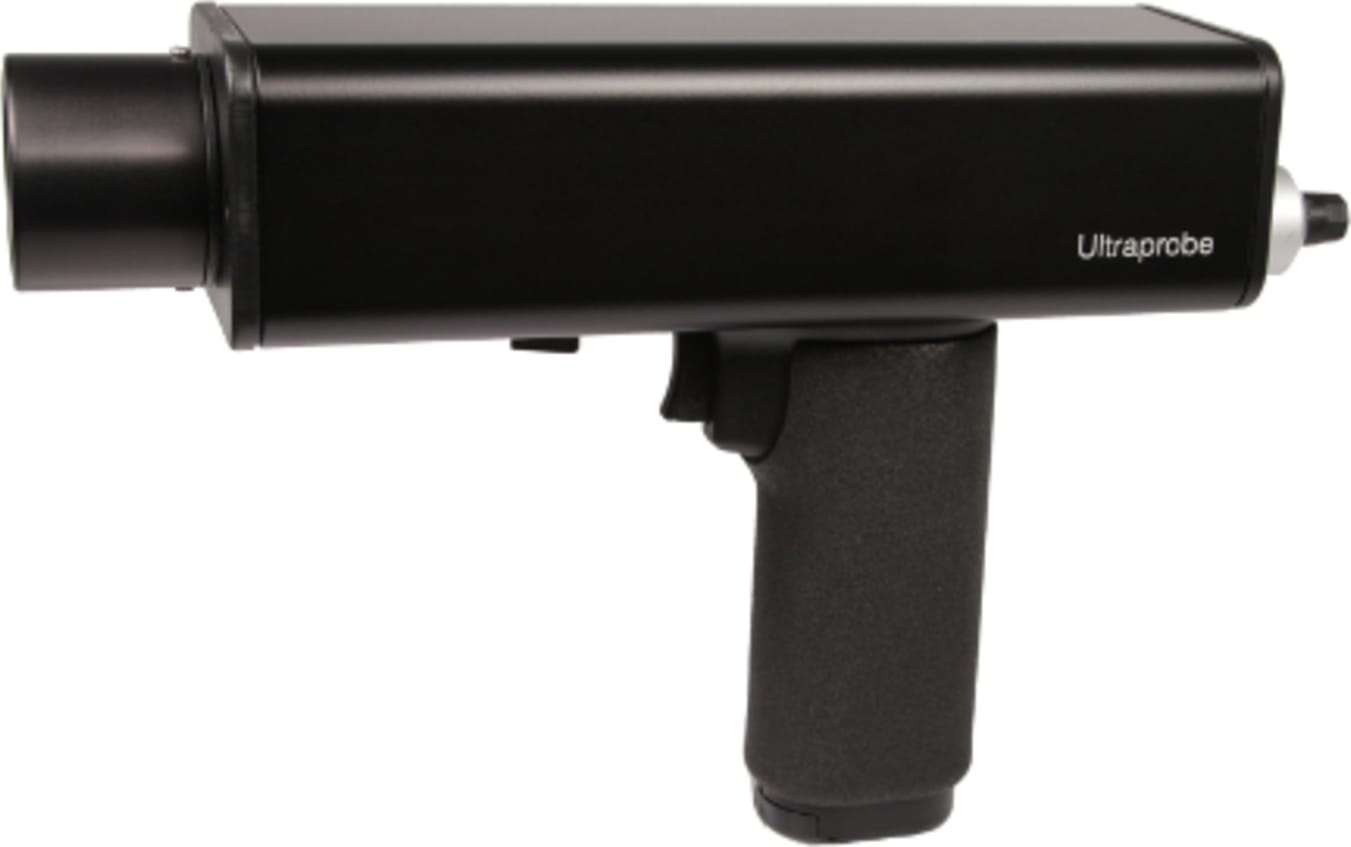

Ultraprobe 2000 Long Range Kit
The Ultraprobe 2000 offers flexibility and adaptability and easily adjusts to meet a wide range of testing demands. This intrinsically safe instrument tests for leaks as well as perform mechanical and electrical inspections. The Ultraprobe 2000 is a valuable tool for ultrasonic troubleshooting and predictive maintenance. The instrument provides testing capabilities ranging from leak detection to mechanical analysis. It is a testing laboratory that fits in the palm of your hand.
The Ultraprobe 2000 includes standards:
- Ultraprobe housing with a metered pistol grip, ballistic meter, frequency tuning dial, 10 turn potentiometer, numerically calibrated sensitivity dial with selection lock, bi-modal meter selector switch, battery, battery indicator light, battery recharger receptacle, and headset receptacle
- Deluxe industrial noise-reducing headset
- Battery recharge kit for main housing and warble tone generator
- Zero Halliburton aluminum carrying case
The UP2000LRM Utlraprobe 2000 Long Range Kit configuration includes:
- Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum, and electrical emissions
- Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
- Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps, and valves
- Extension rod set to increase stethoscope contact range to 31 inches (78 cm)
- Warble tone generator with amplitude selection switch for use in tone test method
- Long range module (LRM-2) for a more accurate & extended range of detection for leak detection or electrical emissions
The Ultraprobe 2000 can be adapted to test practically any problem in operating equipment with features such as:
- FREQUENCY TUNING enables a user to tune into problem “sounds” while minimizing background interference.
- METER MODE selection adjusts the meter response from a real-time response to an averaging response. This feature allows accurate adjustments for leak detection and for mechanical analysis.
- The Ultraprobe 2000 can heterodyne ultrasound into audible range providing accurate sound reproduction.
Sensitive only to ultrasonic frequencies, the Ultraprobe 2000 will not respond to the low-frequency noises often associated with most plant equipment. Therefore, the instrument can be effectively utilized in very loud factory environments.
