20:1 IR Thermometer with High Temp, Alarms, and Type K

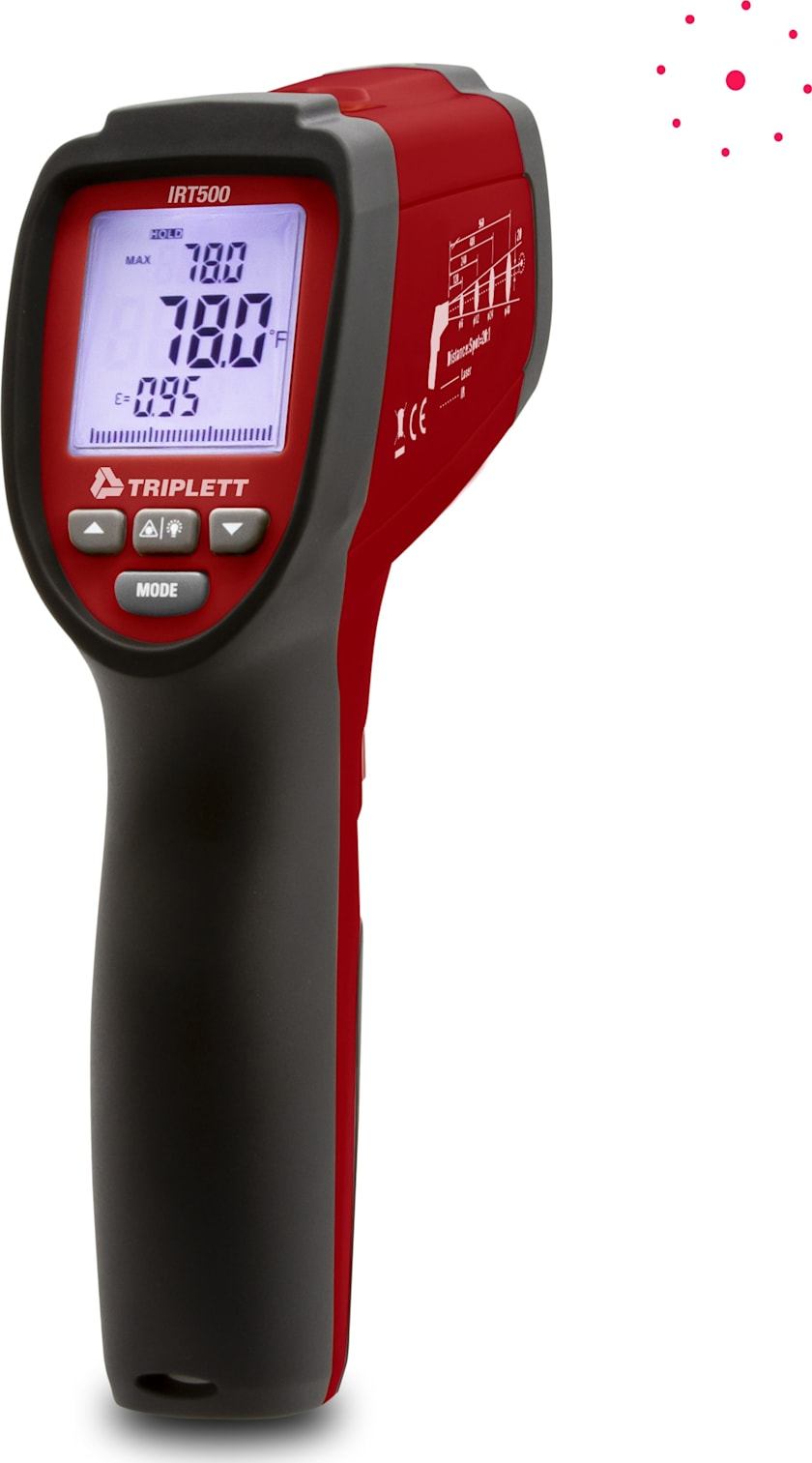

The Triplett Model IRT500 is an IR thermometer with Type K that can instantly measure the surface temperature of objects without making contact plus Type K Temperature. With a quick press of the trigger, the circular laser identifies the measurement area within the circle, and the backlit LCD simultaneously displays the temperature of the target. In addition, the Type K thermocouple provides contact temperature measurements.
The IRT500 features a 20:1 distance-to-target ratio, a wide temperature range of -58° to 1832° F (-50° to 1000°C), adjustable emissivity, audible and visual high/low-temperature alarms with the red backlight, Min/Max/Avg/Diff, and automatic data hold with power off after 8 seconds. Includes Type K bead probe, 9V battery, and pouch case.
Applications
- Measure the surface temperature of objects that are too hot to touch or hard to reach
- Measure the temperature of moving objects
Specifications
| IR Temperature Range | -58 to 1832°F (-50 to 1000°C) |
| Accuracy | ±1.0% ± 1.8°F/1°C at 68 to 572°F (20 to 300°C)
±1.5% ± 1.8°F/1°C at 572 to 1832°F (300 to 1000°C) |
| Resolution | 0.1°F/°C |
| Distance to Target Ratio | 20:1 |
| Response Time | 150ms |
| Emissivity | 0.10 to 1.0 adjustable |
| Laser | Circular |
| Type K Temperature Range | -58 to 2498°F (-50 to 1370°C) |
| Accuracy | ± (0.5% + 3°F/1.5°C) 32 to 2498°/0 to 1370°C |
