Digital Multimeter with Backlit Display and Temperature Test
The Triplett Model 1101-B is a 3-1/2 digit (1999 count) compact digital multimeter with a backlit LCD display. It offers a large variety of measurement features including AC/DC Voltage, DC Current, Resistance, Continuity, Diode Test, and Temperature. The rubberized boot provides impact and drop resistance in a sleek ergonomic design, and the user-friendly Auto Power Off feature helps maximizes battery life. With an industry standard CAT II design it provides resistance to damage from transient over voltages in any demanding settings. The Model 1101-B is well suited for a variety of commercial and residential applications such as security, home theater, electrical, HVAC installations and more.
Applications:
- Measure temperature of enclosures, surfaces, plenums, coolant, heat exchangers, heat-sinks, etc.
- Measure battery voltage in security systems, UPS's, vehicles, portable tools etc.
- Measure resistance of loudspeakers, EOL, wiring, sensors, etc.

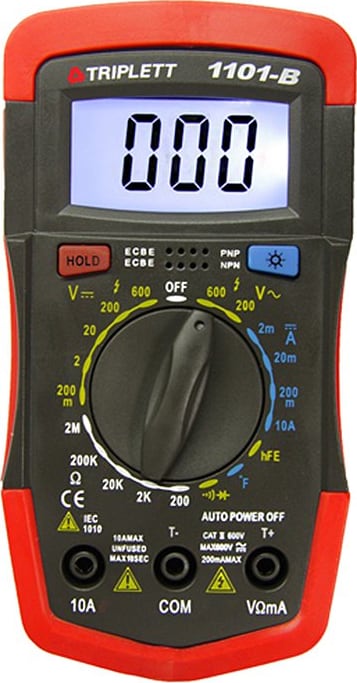

Panel Layout
1. LCD Display with (Low Battery) and (Hold) annunciators
2. Data-Hold Button (HOLD). Press to ‘freeze’ the present LCD reading. Press again to ‘un- freeze’ the reading.
3. Back Light Button / Auto Power Off Reactivate: Press to turn on the LCD backlight. The backlght will turn itself off automatically in a few minutes. If the meter turns itself off after approximately 30 minutes (Auto Power Off feature activates), press this button to reactivate the meter, or set the Rotary Switch to OFF and then to the desired range.
4. Rotary Switch: Use this switch to select functions and ranges
5. Input Jacks: Plug in test leads for the desired measurement type.
