| Specification for Frequency |
| Frequency range |
Band 0: 1MHz ~30MHz
Band 1: 30MHz ~2200MHz
Band 2: 2200MHz ~6200MHz |
| Frequency resolution |
1 KHz with PLL setting |
| Frequency offset |
+/-2Hz to +/-1KHz with I&Q Modulation setting |
| * frequency offset only can setup at single frequency mode any without modulation |
| Frequency stability |
+/-2.5PPM over temperature -20~+60 degree |
| Frequency aging per year |
+/-1PPM |
| Frequency reference output |
12MHz |
| Frequency reference input |
10MHz |
| Specification for amplitude |
| output level range |
Band 0: -21dBm~10dBm
Band 1: -21dBm~10dBm
Band 2: -31dBm~0dBm |
| output level resolution |
1dB |
| output level error |
<3dB |
| Phase noise |
-90dBc/Hz offset 10 KHz at 1GHz
-105dBc/Hz offset 100 KHz at 1GHz
-120dBc/Hz offset 1MHz at 1GHz |
| Specification for Pulse modulation |
| Pulse modulation repeat time |
400uS to 20s |
| Pulse modulation duration time |
10us to 5S |
| Multiple pulse number |
2~250 |
| Multiple pulse delay |
100us~5s (last pulse cannot be overlay with first pulse) |
| On/off ratio |
>90dB |
| Specification for Frequency sweeping with/ without pulse modulation |
| Span range |
1 KHz to full span |
| Scan points range |
2 to 50000 |
| Frequency step range |
1 KHz to 1GHz |
| Pulse period in sweeping mode |
Sweeping repeat time is from 400uS to 20s |
| Pulse width in sweeping mode |
Pulse duration time is from 10us to 10s |
| * If it is in “sweeping w/o Pulse mod”, this parameter is no function |
| Specification for Frequency hopping with/ without pulse modulation |
| Frequency hopping range |
1MHz to 6.2GHz |
| Frequency hopping number |
2~4000 |
| Pulse period in hopping mode |
Hopping repeat time is from 400uS to 20s
or 2500 hop/s to 0.05 hop/s |
| Pulse width in hopping mode |
Pulse duration time is from 10us to 10s |
| * If it is in “hopping w/o pulse mod”, this parameter is no function |
| Specification for I&Q unit for analog modulation |
| FM modulation in Demo |
Modulation frequency range: 1.54Hz to 3.33KHz
Modulation index 20 |
| FM modulation by defined the file, load different file |
Modulation frequency range: 1.54Hz to 33.3KHz
Modulation index 0.5 to 20 |
| AM modulation in Demo |
Modulation frequency range: 30.77Hz to 66.7KHz
Modulation index 90% |
| AM modulation by defined the file, load different file |
Modulation frequency range: 1.54Hz to 66.7KHz
Modulation index 10% to 90% |
| PM modulation in Demo |
Modulation frequency range: 30.77Hz to 66.7 KHz
Modulation index 180 degrees |
| PM modulation by defined the file,load different file |
Modulation frequency range: 30.77Hz to 66.7KHz
Modulation index 36 degree to 288 degree |
*Define the I&Q RAW data file, any kind of analog modulation can be achieved.
Such as RF narrow band noise generator |
| Specification for I&Q unit for Digital modulation |
| MSK modulation in Demo |
Data rate rage: 110b/s to 240Kb/s
Data depth: 400 bit |
| GMSK modulation in Demo |
Data rate rage: 110b/s to 240Kb/s
Data depth: 400 bit
BT=0.3 |
| FSK modulation in Demo |
Data rate rage: 27.7b/s to 60Kb/s
Data depth: 25 bit |
* Define the I&Q data file, study different I&Q pattern, internal I&Q engine will
generate most kinds of digital modulation; Such as SFSK. |
| Specification for I&Q unit for phase modulation |
| QPSK modulation in Demo |
Data rate rage: 2.2kb/s to 4.8Mb/s
Symbol rate rage: 1.1KHz to 2.4MHz
Data depth: 4000 bit |
| 8PSK modulation in Demo |
Data rate rage: 3.3kb/s to 7.2Mb/s
Symbol rate rage: 1.1KHz to 2.4MHz
Data depth: 4000 bit |
| 16QAM modulation in Demo |
Data rate rage: 4.4kb/s to 9.6Mb/s
Symbol rate rage: 1.1KHz to 2.4MHz
Data depth: 4000 bit |
Define the I&Q data file, study different I&Q pattern, internal I&Q engine will generate
most kinds of phase modulation; Such as 32QAM. |
| Specification for I&Q unit for phase modulation |
| QPSK modulation in Demo |
Data rate rage: 2.2kb/s to 4.8Mb/s
Symbol rate rage: 1.1KHz to 2.4MHz
Data depth: 4000 bit |
| 8PSK modulation in Demo |
Data rate rage: 3.3kb/s to 7.2Mb/s
Symbol rate rage: 1.1KHz to 2.4MHz
Data depth: 4000 bit |
| 16QAM modulation in Demo |
Data rate rage: 4.4kb/s to 9.6Mb/s
Symbol rate rage: 1.1KHz to 2.4MHz
Data depth: 4000 bit |
Define the I&Q data file, study different I&Q pattern, internal I&Q engine will generate
most kinds of phase modulation; Such as 32QAM. |
| Specification for I&Q external modulation |
| Baseband signal bandwidth |
500MHz |
| I&Q signal level |
1Vpp |
| I&Q port impedance |
200 ohm |
| * any kind of modulation will be depend on the input of I&Q signal |
| Specification for LF output |
| SIN Waveform in Demo |
Waveform pattern length: 72 points
Frequency range: 15.4Hz to 33.3 KHz
Signal level: 1VPP |
| Triangle Waveform in Demo |
Waveform pattern length: 36 points
Frequency range: 30.8Hz to 66.6 KHz
Signal level: 1VPP |
| Spiral waveform in Demo |
Waveform pattern length: 720 point
Frequency range: 1.54Hz to 3.33 KHz
Signal level 1VPP |
| Total I&Q raw data length |
4Kb |
| I&Q points range |
30 to 65000 |
*Define the I&Q data file, study different pattern, internal I&Q engine will
generate most kinds of signal waveform . |
| Output port |

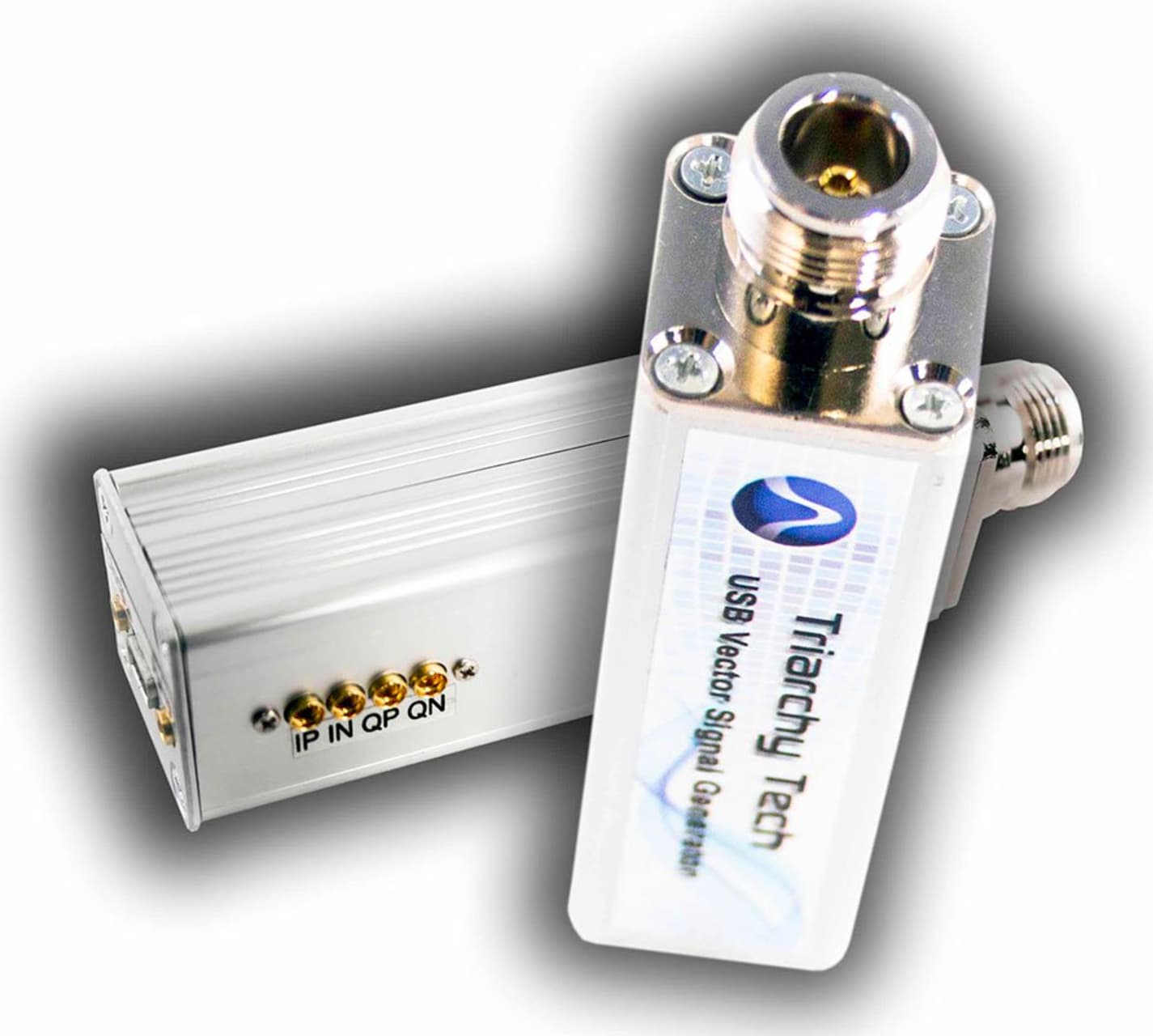

From 4 MMCX connectors (IP, IN, QP, QN) at side of body. |
| Specification for Pulse signal output |
| Pulse signal level |
High level 3.3V, low level 0V |
| Pulse repeat time |
400uS to 20s |
| Pulse duration time |
10us to 5S |
| Multiple pulse number |
2~250 |
| Multiple pulse delay |
100us~5s (last pulse cannot be overlay with first pulse) |
| Output port |
From MMCX connector (Pulse) at rear panel |
