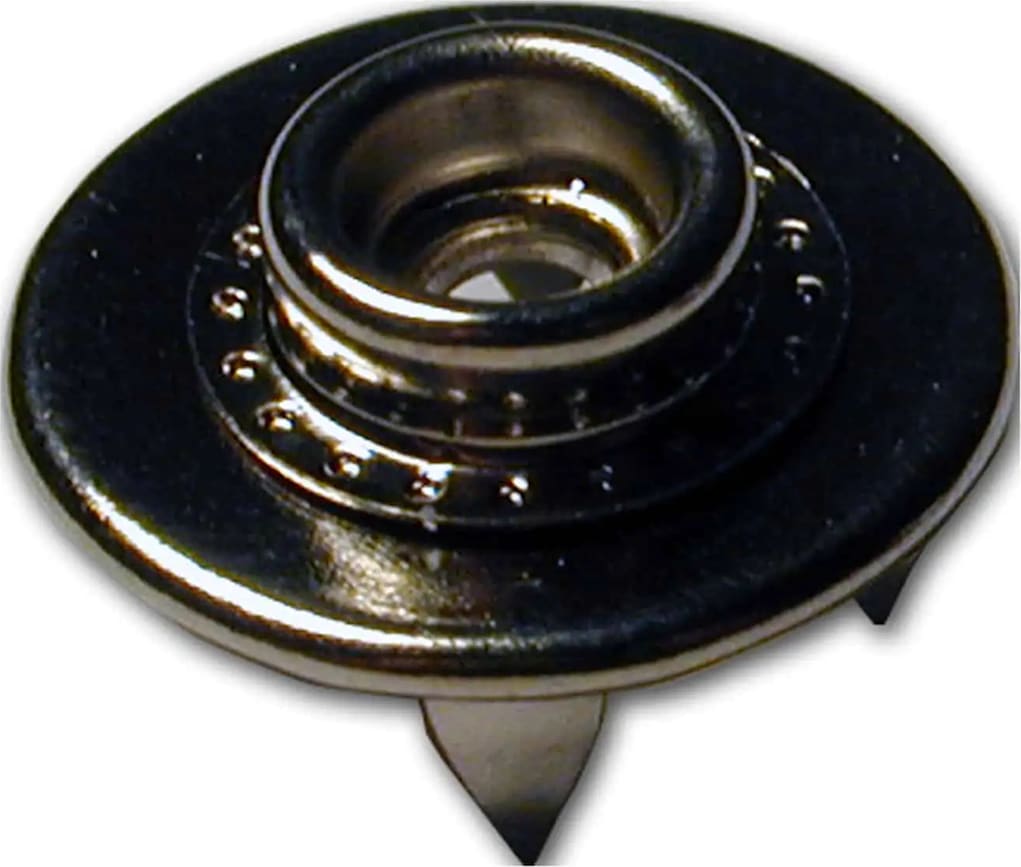

Push & Clinch Grounding Snaps, 10mm, Male Stud, 10/pk
The CS1020 is an easy-to-install 10mm grounding snap for ESD matting. The snap can be easily removed, so it can be reused over and over again. The CS1020 push & clinch snaps are the ideal snaps for use with ESD matting such as multi-layer rubber or vinyl mats. The 3/8′′ (10 mm) prong socket simplifies the installation of snaps used to connect ESD ground cables to mats, such as the CP2524 common point ground cable. The snap provides a strong contact for table matting. The bendable prong teeth allow the snap to be removed and used over again. Grounding snaps are used to connect a ground cord to a work surface static safe mat or an ESD floor mat. An antistatic floor mat or ground mat is one of a number of antistatic devices designed to help eliminate static electricity. It does this by having a conductive material embedded within the mat that collects the static.
How to Install Clinch Snaps
1. Locate the safest and most convenient snap location.
2. Press the snap down on the top side until prongs puncture matting and are fully visible on the underside of the mat.
3. Bend the prongs of the snaps until flush against the underside of the mat.
4. Bend the prongs up to remove the snap from the matting.
