Tramex FMK - Floor Master Kit

Name: Tramex FMK - Floor Master Kit
Brand: Tramex
SKU: TramexFMK
Price: 2985.00 USD
Availability: InStock

0 reviews | Model: Tramex FMK

Images (7)

Compare

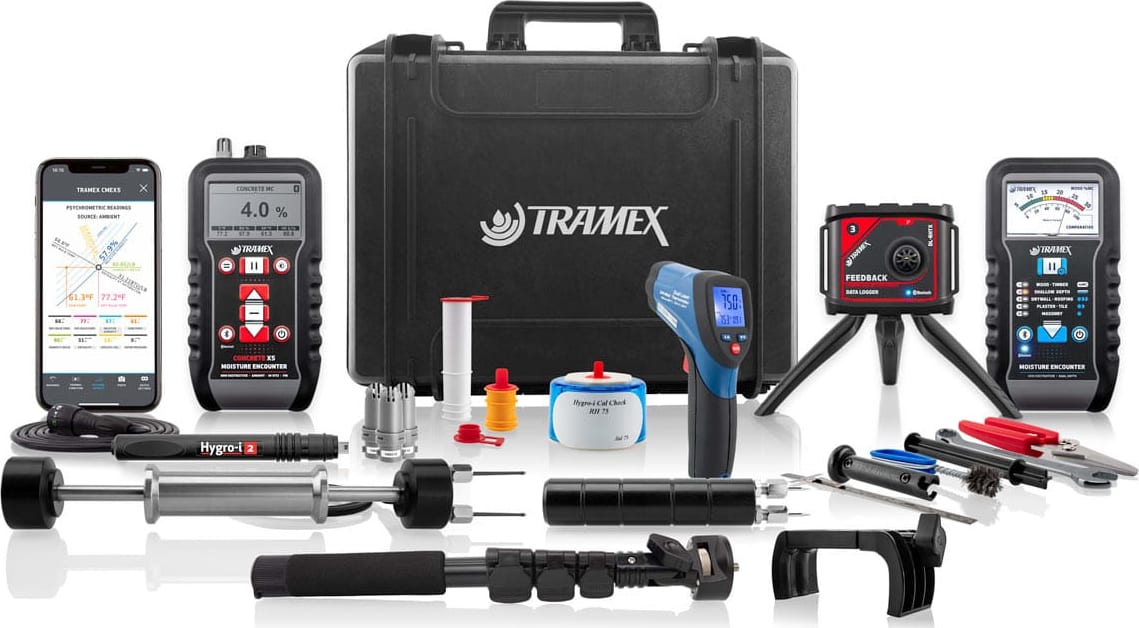

Floor Master Kit

Non-destructive test (NDT) mode
Hygrometer mode
Non-Destructive
Dual Depth
Fast acclimation time
Reusable Hygro-i Relative Humidity probes prove to be the lowest cost per BS 8201 and ASTM F2170 tests
Bluetooth BLE technology
Log up to 100,000 data point entries
Handheld, dual laser, non-contact
With 12:1 distance to spot ratio and audible and visible high/low set point alarms

View Product Details

Your Price: $2,985.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Tramex FMK

Equilibrium Relative Humidity mode (optional plug-in probe)
Accurate, durable and best in class
Log up to 100,000 data point entries
Fast response time (0.15 sec)

Floor Master Kit

The Concrete Moisture Encounter X5 (CMEX5), is The Digital Multi Moisture Meter for Concrete designed and built by Tramex Meters for the specific needs of many industries including the Flooring, Water Damage Restoration, Inspection, Surveying and Indoor Air Quality industries. Bluetooth connection allows for continual development and integration of apps and reporting to accompanying IOS & Android App.

This Concrete Moisture Encounter has 4 measurement modes:

Non-destructive test (NDT) mode: The Tramex Concrete Moisture Encounter X5 is a non-destructive digital multi-moisture meter for concrete floors and slabs providing an instant and precise quantitative measurement of moisture content using Gravimetric testing as a baseline. The CMEX5 also provides Carbide Method equivalent readings for concrete and other cementitious substrates as well as comparative readings as per ASTM F2659.

Hygrometer mode: The built-in Ambient Relative Humidity Sensor measures Ambient Relative Humidity, Temperature, Dew Point, and Humidity Ratio (or Mixing Ratio) of the environment.

Equilibrium Relative Humidity mode (optional plug-in probe): Using the optional plug-in Hygro-i2 RH probes, the Concrete Moisture Encounter X5 will measure Equilibrium Relative Humidity, Temperature, Dew Point and Humidity Ratio in structural materials. A structural material such as a concrete slab can be tested using the in-situ method or RH Hood methods (International Standards: ASTM F2170 & BS 8201, 8203, 5325). Relative Humidity Probes can also be used for ambient RH measurements within air spaces.

PIN Meter mode (optional plug-in probe): The Concrete Moisture Encounter X5 becomes a resistance type meter and measures the percentage moisture content (%MC) of wood when used with the optional plug-in PIN meter. International wood standards or pre-programmed wood species can be selected. PIN meter mode can also be used for Drywall and WME (Wood Moisture Equivalent) readings for other materials.

CMEX5 - Concrete Moisture Encounter X5
ME5 - Moisture Encounter
HIPP3 - Hygro-i Probe
RHIE2-B - Hygro-i2 Electronic Interface
HH14TP30-B - Hand Held Electrode
HA21SP52-B - Hammer Electrodes
IRT2 - Infrared Thermometer
SAL75 - Calibration Salt Check
HI-ACC - Hygro-i Tool Accessory box
E5-HBS - Extension Handle
DL-RHTX - Feedback DataLogger
MAXMASTER - Heavy Duty Carry Case
HOLE LINERS

General Specifications
Size	20.5” x 18.9” x 5.9” (52cm x 48cm x 15cm)
Power	5 x AA batteries, 1 x 9 volt PP3 battery
Weight	13.2lbs (6kg)
CMEX5 Specifications
Size	7.1" x 3.4" x 1.6" (180mm x 85mm x 40mm)
Weight	12.59oz (357g)
Construction	ABS Body
Power	2 x AALR6 ALKALINE (included)
Display	Digital
Depth of penetration in concrete	approx. 3/4" (20mm)
Measuring range
Moisture content for Concrete	0 → 6.9 %
Comparative for Gypsum floor screed	0 → 12
CM Equiv Anhydrite/Concrete	0→2.7 / 0→4.3
Reference scale	0 → 100
Relative Humidity	0 → 99%
(with optional Hygro-i2 ® probe)	Humidity accuracy: 0% → 99%RH +/- 2% @ 25°C / 77°F
Moisture content for wood (with optional wood pin probes)	5 → 30 %
ME5 Specifications
Size	6.3" x 3.5" x 1.5" (160mm x 85mm x 38mm)
Weight	9.5oz (270g)
Construction	ABS Body
Power	2 x AALR6 ALKALINE (included)
Display	Analog
Depth of penetration	N/A
Shallow signal	up to 0.40” (10mm)
Deep signal	up to 1.25" (30mm)
Wood Moisture Content	5 to 30%
Reference scale for building materials	0 to 100
HIPP3 Specifications
Reusable Ambient RH Probe tests	Temperature, RH %, Dew Point, Mixing Ratio
Humidity Range	0% - 99% RH
Temperature Range	-40°C to 80°C (-40°F to 176°F)
RH Response time	8 sec
Temperature Response time	min. 5 secs. - max. 30 secs.
Humidity Accuracy	10% to 90%RH +/-1.8% @ 25°C / 77°F
Temperature Accuracy	+/- 0.5°F / 0.3°C
NIST traceable	(National Institute of Standards and Technology)
DL-RHTX Specifications
Size	3.94” x 3.54” x 1.38” (100mm x 90mm x35mm)
Weight	3.53oz (100g)
Construction	ABS enclosure
Power	1 x AA type battery 1.5 Volt
Included	Wall Mounting and Tripod Stand
Memory	Memory: 100,000 data point entries (samples of Ambient RH and temperature; SurfaceTemperature)
Logging Rate	Logger interval adjustable between 5 minutes and 1 hour
Transmission Range	Up to 165ft (50m) line-of-sight
Bluetooth	BLE Bluetooth Low Energy 4.2 compliant, Bluetooth 5 advertising
RELATIVE HUMIDITY SENSOR SPECIFICATIONS
Range	0 to 100%RH
Accuracy	±1.5%RH Range 0% to 80%RH ±2.0%RH Range 80% to 99%RH (@ 77°F (25°C))
Resolution	0.1% over the complete range
Drift	<0.25%RH per year
TEMPERATURE SENSOR SPECIFICATIONS
Range	-40°F to 257°F (-40°C to 125°C)
Accuracy	±0.1°F Range 68°F to 140°F (±0.1 °C Range 20°C to 60°C)
Sensor Protection	PTFE Film protects sensor opening from water & dust
Drift	<0.04°F (0.03°C) per year
IRT2 Specifications
Temperature range	-50 to 650 °C (-58°F ~ 1202°F) Distance to Spot ratio: D:S = 12:1
Accuracy for targets assuming ambient operating temperature of	23 to 25 °C (73 to 77°F): -50 ~ 20°C (-58°F ~ 68°F) ±2.5°C(4.5°F) 20°C ~300°C (68°F ~572°F) ±1.0% ±1.0°C (1.8°F) 300°C ~650°C (572°F ~ 1202°F) ±1.5%
Emissivity	Digitally adjustable from 0.10 to 1.0
Power supply	9V battery, NEDA 1604A or IEC 6LR61, or equivalent
