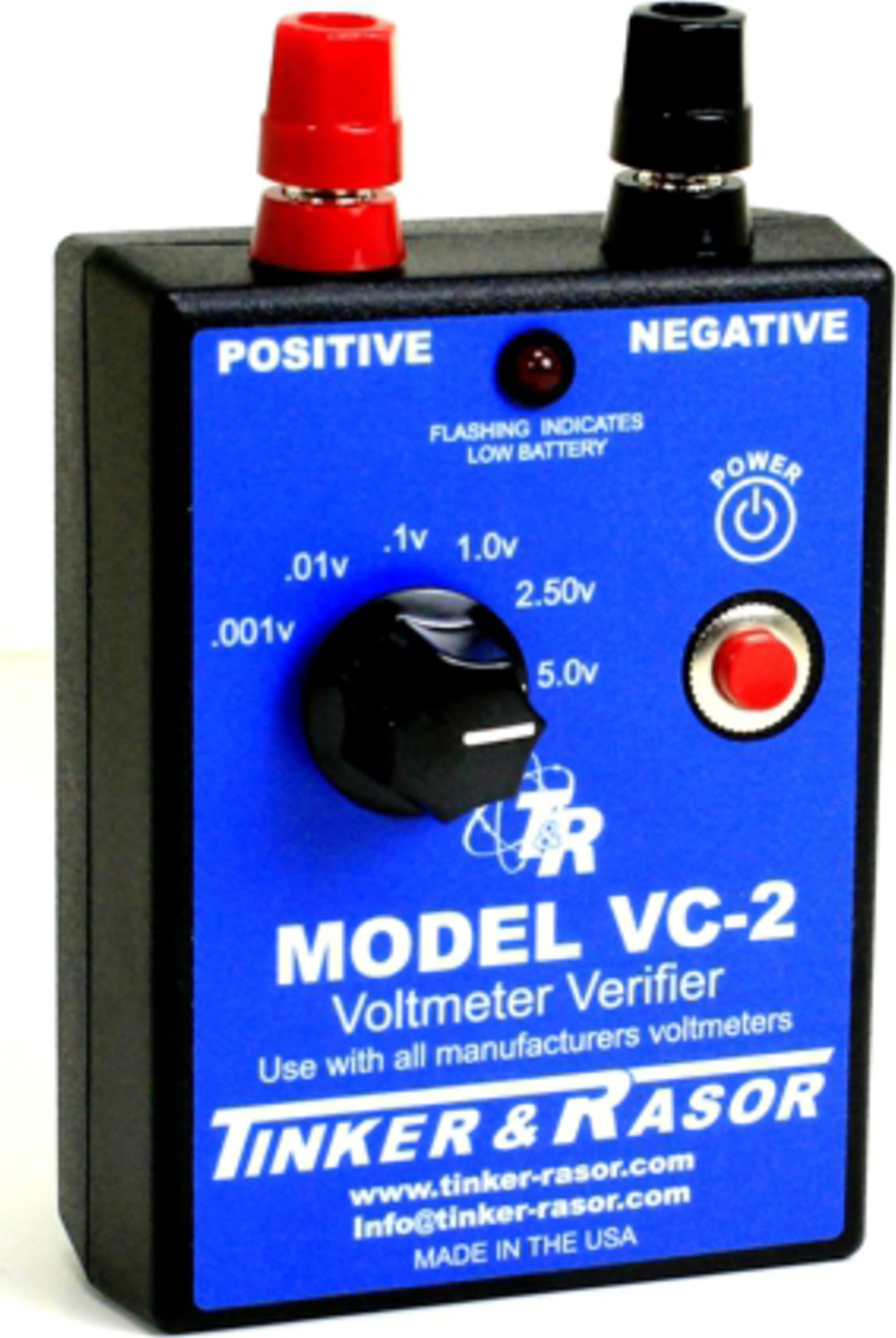

Tinker & Rasor VC-2 - Voltmeter Verifier

The VC-2 Voltmeter Verifier from Tinker & Rasor provides highly accurate output voltage to verify voltmeters used for cathodic protection testing. This new product, updated from VC-1, includes more voltage outputs. The accuracy exceeds most voltmeters accuracy limits of ±0.05v. The VC-2 will work with any voltmeter or multimeter on DC volts setting. The VC-2 offers the following voltage outputs: 0.001v, 0.01v, 0.1v, 1.0v, 2.5v, 5.0v.

The VC-2 features a built-in battery test circuit and LED, two universal terminal posts accepting most connectors including banana plugs, and a six position voltage selector. Use the VC-2 Verifier on all popular voltmeters, including the Tinker & Rasor CPV-2 and CPV-4.

The VC-2 is a portable, battery operated instrument. You can test voltmeters on a scheduled basis or at each use. This performance check allows you to send voltmeters that are out of calibration on an exception basis rather than a time based schedule.

The VC-2 is a very accurate instrument and should be put on an annual calibration cycle. Tinker & Rasor performs calibration services in its Southern California factory with a 24-hour turn around.

The image below shows the VC-2 being used with the Tinker & Rasor CPV-4. Please note, the CPV-4 is sold separately.
