0 reviews | Model: Tinker & Rasor APS
High Voltage Holiday Detector (with Electrode see brochure)
Your Price: $4,500.00
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!
The Tinker & Rasor Model APS Holiday Detector is an all-purpose electrical inspection instrument that maintains a given inspection voltage in spite of the electrical load on the circuit. It is recommended for use on any pipe diameter as well as on flat surfaces when such surfaces are coated with a high electrical resistance material, and when the surface beneath the coating is electrically conductive. The detector works equally well on damp or dry surfaces and is especially desirable where humid conditions prevail.
The APS includes one electrode, which can be selected from the list below. Please indicate your preferred electrode when ordering. Please note, larger sales are also available at an additional cost - please contact us at 877-571-7901 for pricing if a larger size is needed.

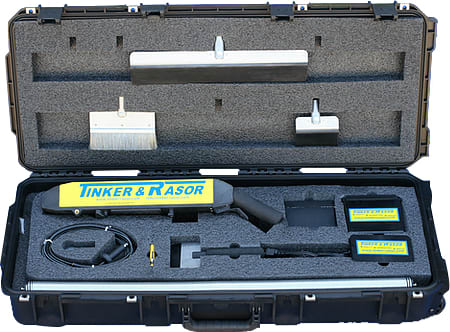

The image below provides an overview of several main components included with the APS.
(A) Instrument (B) Ground Cable (20') (C) Compax Connector for Spring Electrodes (D) Screwdriver (E) Inspection Paddle, silicone-rubber, 4" (F) Adapter, use with SPY brand spring electrodes
(G, H) Battery (LiFePO4) (I) Battery Charger (115v or 230v) (1) Wand Handle (18") Not shown, under APS (1) Carrying case (Not shown) (1) Electrode of Choice (Not shown)
The APS Holiday Detector includes an integrated voltmeter displayed on the front panel of the main instrument. The LCD of the voltmeter measures and displays the output voltage and gives the user the ability to tune the APS to a specific voltage within the 800v - 8,000v Low range and the 3,500v - 35,000v High range. Voltages increments are in 100v steps. Because the APS includes this integrated peak reading voltmeter, it is not suggested that an external peak reading voltmeter be used with this instrument. Most external peak reading voltmeters currently available are not as accurate as of the integrated voltmeter of the APS, and will not show as accurate results.
The APS voltmeter is accurate to +/- 5% of the output voltage, as shown on the LCD display on the instrument panel. It is recommended that the APS follow an annual calibration cycle to ensure the instrument is in good working order and that the LCD of the integration voltmeter is accurate.
