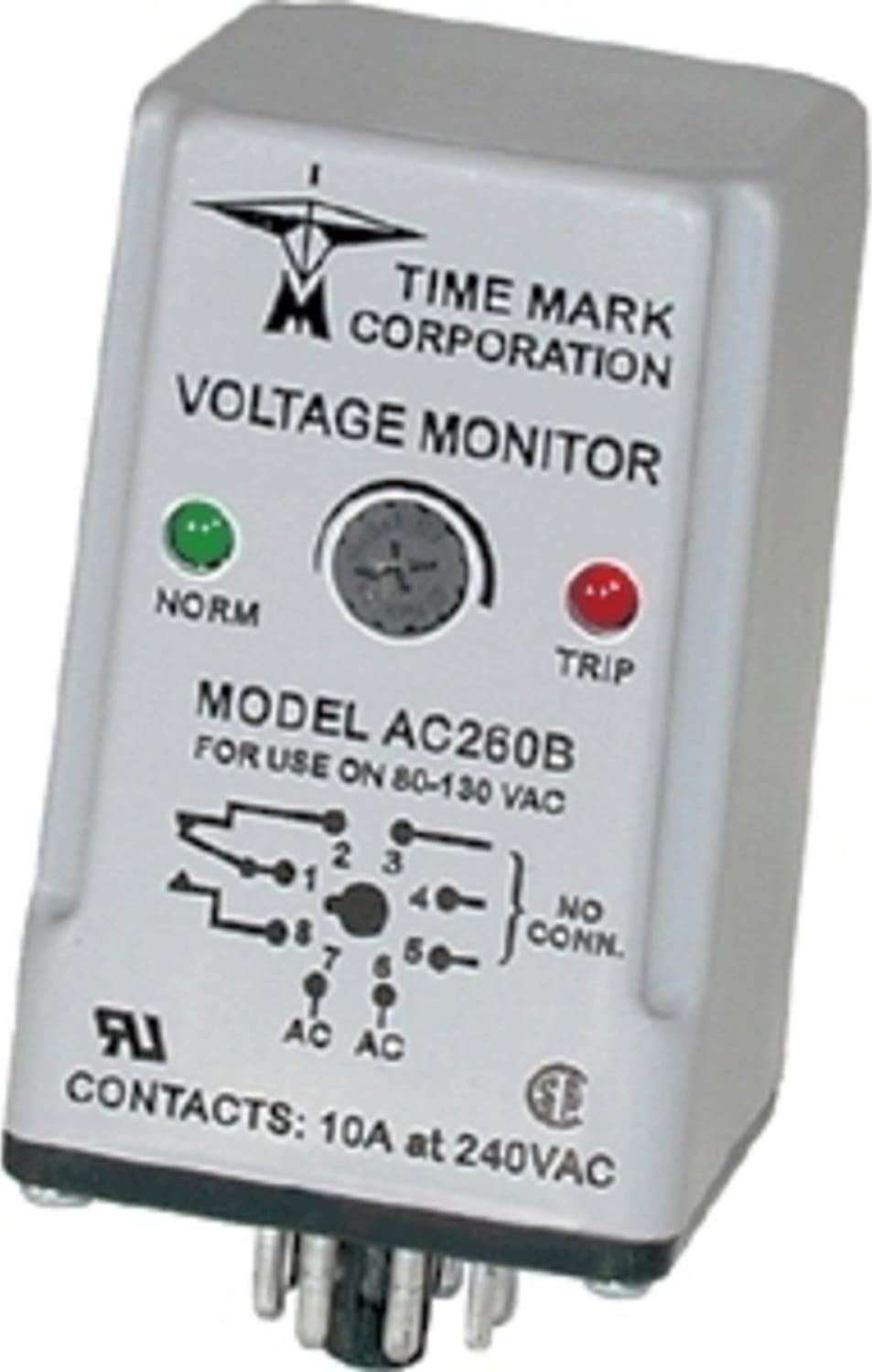

Time Mark AC260B-160-250 Over or Under Voltage Monitor

Name: Time Mark AC260B-160-250 Over or Under Voltage Monitor
Brand: Time Mark
SKU: Time MarkAC260B-160-250
Price: 70.90 USD
Availability: InStock

0 reviews | UPC: 662917006744 | Model: Time Mark AC260B-160-250

Compare

Over or Under Voltage Monitor, SPDT, UL/CSA, 50-400 Hz

Automatic Reset, 50-400 Hz, AC
Monitors for Over or Under Voltage
LED status indicator
Plug-in Mounting
5 Year Unconditional Warranty

View Product Details

List Price: $95.00

Your Price: $70.90

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Time Mark AC260B-160-250 Over or Under Voltage Monitor, SPDT, UL/CSA, 50-400 Hz	Time Mark DC260B-42-64 Over or Under Voltage Monitor, SPDT, UL/CSA	Time Mark DC260B-90-150 Over or Under Voltage Monitor	Time Mark DC260B-20-24 Over or Under Voltage Monitor	Time Mark AC260B-80-130 Over or Under Voltage Monitor	Time Mark AC260B-380-480 Over or Under Voltage Monitor	Time Mark AC260B-215-290 Over or Under Voltage Monitor
Price
In Stock
Voltage Frequency Monitors Function	Over or Under	Over or Under	Over and Under	Over and Under	Over and Under	Over and Under	Over and Under
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Time Mark 260 Series
Over or Under Voltage Monitor

Automatic Reset, 50-400 Hz
Plug-in Mounting
5 Year Unconditional Warranty
Monitors for Over or Under Voltage
LED status indicator

The Model 260 Voltage Sensor is a single setpoint voltage sensor. Input voltages above the setpoint cause the output contacts to energize (contacts 1 & 8 closed). Input voltages below the setpoint cause the output contacts to de-energize (contacts 1 & 2 closed). The dead band between pull-in and drop-out is less than 2%. The standard unit has a screwdriver, or fingertip adjustable setpoint range of approximately 35% of the maximum voltage. This device can also be provided with a factory
calibrated trip point. AC versions of the Model 260 Voltage Sensor are not frequency sensitive, and may be used in systems from 50Hz to 400Hz. DC models are not polarity sensitive. This device requires a standard 8-pin socket, such as Time Mark’s Model 51X120.

Dimensions	Typical Application

General Specifications
Model	260
Input voltage	see Ordering Info tables
Transient protection	2500 VRMS for 10ms
Polarity protection	not required
Supply current	10mA max.
Setpoint stability	± 1%
Response time	100ms
Operation	Continuous duty
Output contacts	SPDT 10 Amps at 240VAC resistive
Expected relay life	Mech: 10 million operations Elec: 100,000 operations at rated load
Operating temperature	-20º to +131º F
Humidity tolerance	0 - 97% without condensation
Enclosure material	ABS plastic
Mounting	8-pin socket (**order separately)
Weight	5 oz.
Agency approval	Most AC & DC Auto Reset versions: UL Recognized* and CSA Certified*

Voltage Frequency Monitor Relays
Voltage Frequency Monitors Function	Over or Under
Time Mark Mounting	8-pin
Nominal Voltage (monitor relays)	160-250 VAC
Test Equipment General Attributes
Warranty	5 YEARS
Warranty Details	This product is warranted to be free from defects in materials and workmanship, and is covered by our exclusive 5-year Unconditional Warranty. Should this device fail to operate for any reason, we will repair it for five years from the date of manufacture. For complete warranty details, see the Terms and Conditions of Sales page in the front section of the Time Mark catalog or contact Time Mark at 1-800- 862-2875.
Safety Approval	CSA, UL
Product Weight	0.41 LBS
Product Height	3.80 IN
Product Length	1.95 IN
Product Width	1.95 IN
HTS/Schedule B Number	8542.90.0000
ECCN Number	EAR99
Country of Origin	United States
UPC	662917006744
