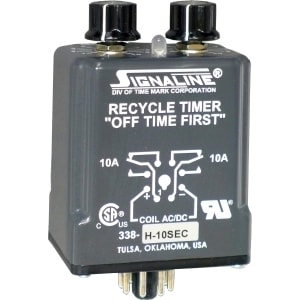

Time Mark 338-L-60SEC Recycle Timer-Off First

Name: Time Mark 338-L-60SEC Recycle Timer-Off First
Brand: Time Mark
SKU: Time Mark338-L-60SEC
Price: 88.06 USD
Availability: InStock

0 reviews | UPC: 662917005372 | Model: Time Mark 338-L-60SEC

Compare

Recycle Timer-Off First, 1-60 sec, DPDT, UL/CSA, 10-28V AC/DC

Knob Adjust Recycle Timer Off First with 1 to 60 Seconds Timing Range and 10 to 28V Voltage
Most Common Voltage and Timing Ranges
Cycles Load on/off, or Between Two Loads
100 ms Recycle Time
5 Year Unconditional Warranty

View Product Details

List Price: $118.00

Your Price: $88.06

In Stock:

View Payment Options

Request Quote

Recommended for you

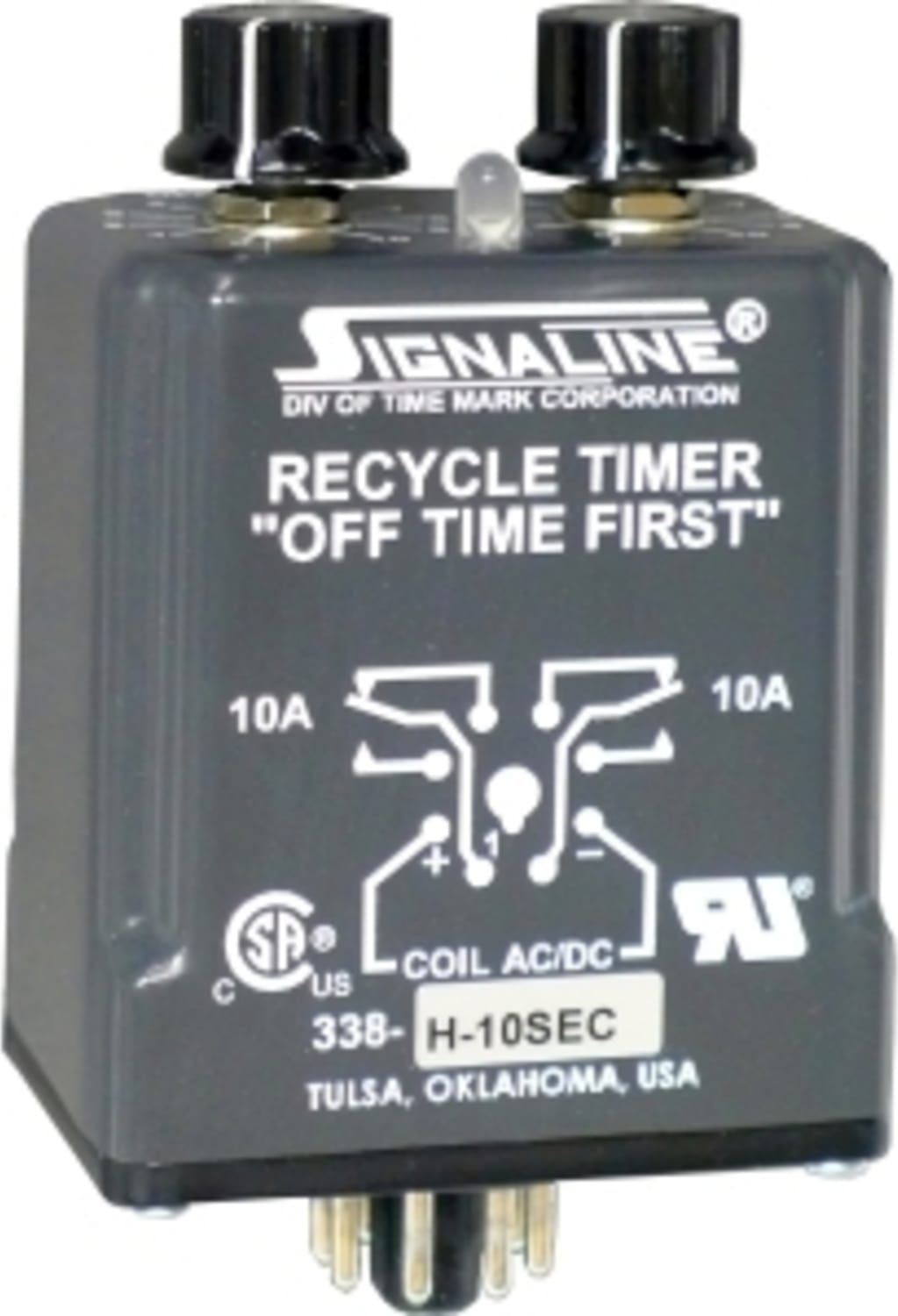

Time Mark 338 Series
Recycle Timers "Off Time First"

Knob Adjust Recycle Timer Off First with 60 Seconds Timing Range and 10 to 28V Voltage
100 ms Recycle Time
5 Year Unconditional Warranty
Most Common Voltage and Timing Ranges
Cycles Load on/off, or Between Two Loads

The Models 338 and 368 Recycle Timers are designed to cycle a load on and off, or to cycle between two loads. The ON and OFF cycles are independently adjustable on each model. The Model 338 is a DPDT potentiometer (knob-adjust). The Model 368 is a DPDT, high-accuracy digital input timer. Solid-state circuits in each model drive an internal electromechanical relay.

Each model is functionally interchangeable. They are available in a wide variety of voltage and timing ranges, to cover the majority of application requirements. An “SG” version of this model is available using silver with gold flash contacts. Models 338 and 368 are UL Recognized and CSA Certified.

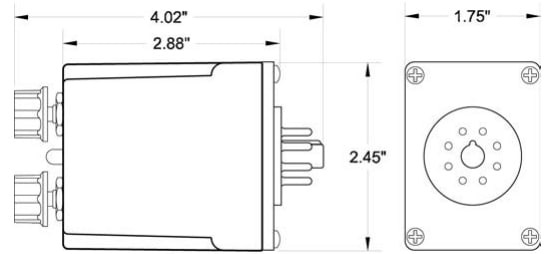

Dimensions	Pin Connections

General Specifications
Model	338 (knob adj.)	368 (digital)
Voltage	L = 10-28V AC/DC H = 40-260V AC/DC
Timing range	10SEC: 1 - 10 Sec. 60SEC: 1 - 60 Sec. 180SEC: 1 - 180 Sec. 300SEC: 1 - 300 Sec.	.1SEC: 0.1 - 102.3 Sec. 1SEC: 1 - 1023 Sec. 1MIN: 1 - 1023 Min.
Accuracy	± 5%	± 2%
Repeatability	± 2%	± 0.1%
Recycle time	100ms
Operating temp	-20°F to +140°F
Contacts	DPDT
Contact rating	10A at 240VAC resistive
Transient protection	775V, 80 Joules
Humidity tolerance	0 - 97% w/o condensation
Enclosure material	NORYL Plastic
Mounting	8-pin socket**
Weight	5 oz.
Agency approval	*UL Recognized and CSA Certified
Additional Options	/C = Custom (Voltage and/or Timing) /SG = Silver with Gold Flash Contacts

Tech Specs

Time Delay Relays
Timer Function (timers)	Recycle Timer-Off First
Nominal Voltage (monitor relays)	10-28 VAC/VDC
Time Mark Mounting	8-pin
Electrical Approval (monitor relays)	CSA, UL
Test Equipment General Attributes
Unique Features	Knob Adjust Recycle Timer Off First
Warranty	5 YEARS
Warranty Details	This product is warranted to be free from defects in materials and workmanship, and is covered by our exclusive 5-year Unconditional Warranty. Should this device fail to operate for any reason, we will repair it for five years from the date of manufacture. For complete warranty details, see the Terms and Conditions of Sales page in the front section of the Time Mark catalog or contact Time Mark at 1-800-862 -2875.
Safety Approval	CSA, UL
Product Weight	0.41 LBS
Product Height	4.02 IN
Product Length	2.45 IN
Product Width	1.75 IN
Country of Origin	United States
Shipping Height	4.02 IN
UPC	662917005372
Shipping Length	2.45 IN
Shipping Width	1.75 IN
