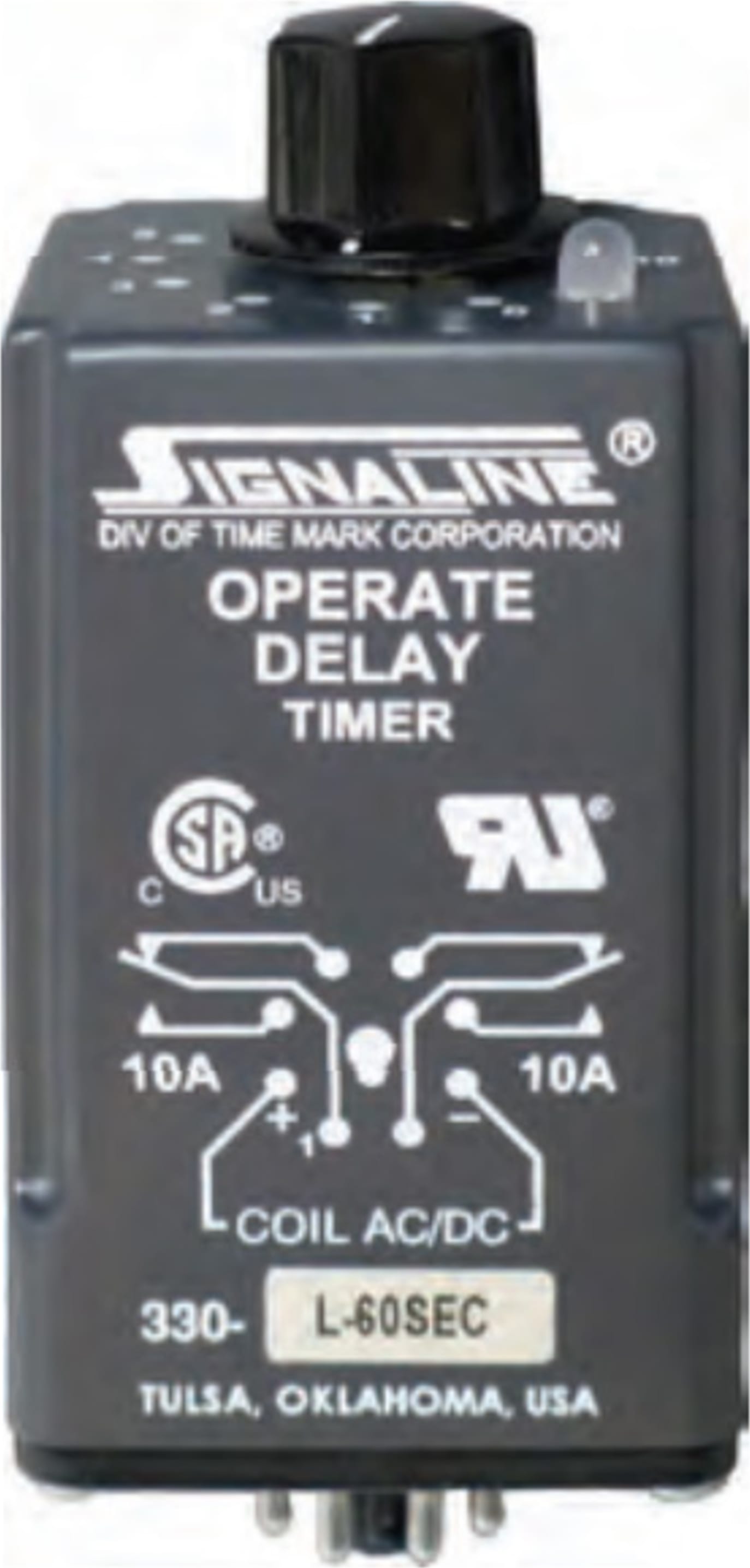

Time Mark 330-H-60SEC Operate Delay Timer, 1-60 sec

Name: Time Mark 330-H-60SEC Operate Delay Timer, 1-60 sec
Brand: Time Mark
SKU: Time Mark330-H-60SEC
Price: 75.37 USD
Availability: InStock

0 reviews | UPC: 662917004856 | Model: Time Mark 330-H-60SEC

Time Mark 330-H-60SEC Operate Delay Timers

Compare

Operate Delay Timer, 1-60 sec, DPDT, UL/CSA, 1 - 60 sec

1-60 sec, DPDT, UL/CSA, 1 - 60 sec
Solid-State Design
10 Amp Relay Contacts
Multiple Voltage and Timing Ranges
5-Year Unconditional Warranty

View Product Details

List Price: $101.00

Your Price: $75.37

In Stock:

View Payment Options

Request Quote

Recommended for you

Time Mark 330-H-60SEC Operate Delay Timers

Designed for a wide range of industrial applications
DPDT potentiometer (knob-adjust) timer
High-accuracy digital input timer
UL Recognized and CSA Certified

The Models 330 and 360 Operate Delay Timers are designed for a wide range of industrial applications. Examples include automatic and machine tool control circuits, HVAC circuits, and warm-up delay circuits. The Model 330 is a DPDT potentiometer (knob-adjust) timer. The Model 360 is a DPDT, high-accuracy digital input timer. Solid-state timing circuits in each model drive an internal electromechanical relay.

Dimension

Each model is functionally interchangeable. They are available in a variety of voltage and timing ranges to cover all possible applications. An "SG" version of this model is available using silver with gold flash contacts. Models 330 and 360 are UL Recognized and CSA Certified.

General Specifications
Model	330 (knob adj.)	360 (digital)
Voltage	L = 10-28V AC/DC H = 40-260V AC/DC
Timing range	10SEC: 1 - 10 Sec. 60SEC: 1 - 60 Sec. 180SEC: 1 - 180 Sec. 300SEC: 1 - 300 Sec	.1SEC: 0.1 - 102.3 Sec. 1SEC: 1 - 1023 Sec. 1MIN: 1 - 1023 Min.
Accuracy	± 5%	± 2%
Repeatability	± 2%	± 0.1%
Recycle time	100ms
Operating temp	-20°F to 140°F
Contacts	DPDT
Contact rating	10A at 240VAC resistive
Transient protection	775V, 80 Joules
Humidity tolerance	0 - 97% w/o condensation
Enclosure material	NORYL Plastic
Mounting	8-pin socket (not included) *
Weight	5 oz.
Agency approval	UL Recognized and CSA Certified
Additional Options	/C = Custom (Voltage and/or Timing) /SG = Silver with Gold Flash Contacts

Tech Specs

Time Delay Relays
Timer Function (timers)	Operate Delay Timer
Nominal Voltage (monitor relays)	40-260 VAC/VDC
Time Mark Mounting	8-pin
Electrical Approval (monitor relays)	CSA, UL
Test Equipment General Attributes
Warranty	5 YEARS
Warranty Details	This product is warranted to be free from defects in materials and workmanship, and is covered by our exclusive 5-year Unconditional Warranty. Should this device fail to operate for any reason, we will repair it for five years from the date of manufacture.
Safety Approval	CSA, UL
Product Weight	0.41 LBS
Product Height	4.42 IN
Product Length	1.95 IN
Product Width	1.95 IN
Country of Origin	United States
Shipping Height	4.42 IN
UPC	662917004856
Shipping Length	1.95 IN
Shipping Width	1.95 IN
