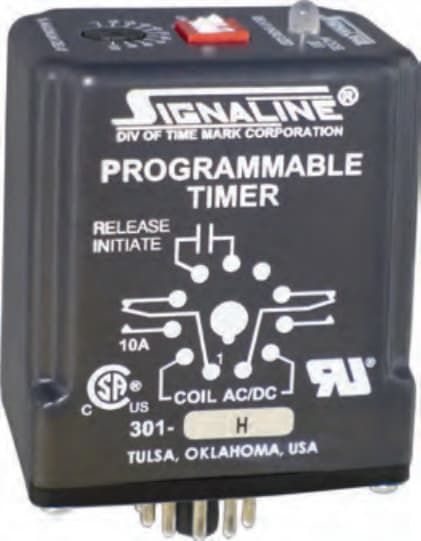

Time Mark 301-H Programmable Timer, DPDT

Name: Time Mark 301-H Programmable Timer, DPDT
Brand: Time Mark
SKU: Time Mark301-H
Price: 100.00 USD
Availability: InStock

0 reviews | UPC: 662917004764 | Model: Time Mark 301-H

Compare

Programmable Timer, DPDT, UL/CSA, 0.15 sec - 64 min

DPDT, UL/CSA, 0.15 sec - 64 min
Multiple timing & voltage ranges
Five function modes
Easy to program
DPDT Relay Outputs
5-Year Unconditional Warranty

View Product Details

List Price: $134.00

Your Price: $100.00

In Stock:

View Payment Options

Request Quote

Recommended for you

Time Mark 301 Programmable Timer

Designed to replace over 100 standard timers
DPDT electro-mechanical output relay
4 DIP switches
6 and 7 pins

The Model 301 Programmable Timer is designed to replace over 100 standard timers. One Model 301 can be set for one of five functions, covers four timing ranges, and has a power supply for any AC/DC voltage from 10 to 28 Volts or 40 to 260 Volts. An "SG" version of this model is available using silver with gold flash contacts. The digital design of the Model 301 provides high accuracy, repeatability and response time. The output of the Model 301 is a heavy-duty DPDT electro-mechanical output relay.

Dimension

Programming options are chosen by simply setting the four DIP switches on top of the relay, and then adjusting a potentiometer for percent of delay. A LED indicator illuminates when the relay is energized. The Model 301 can be set to Delay-on-Release by adding an external jumper between pins 6 and 7 (see Installation Instructions on reverse side). The Model 301 is UL Recognized and CSA Certified.

General Specifications
MODEL	300
Voltage	L = 10-28V AC/DC H = 40-260V AC/DC
Timing Range	0.15 seconds to 64 minutes
Accuracy	±5%
Repeatability	0.1%
Response time	100ms
Contacts	DPDT
Contact rating	10A at 240VAC resistive
Transient protection	775V, 80 Joules
Expected relay life	Mechanical: 10 million operations Electrical: 100,000 operations at rated load
Operating temperature	-20º to +140º F
Humidity tolerance	0-97% without condensation
Case material	NORYL Plastic
Mounting	11-pin socket (not included)**
Weight	4.5 oz.
Additional Options	/C = Custom (Voltage and/or Timing) /SG = Silver with Gold Flash Contacts

Tech Specs

Time Delay Relays
Timer Function (timers)	Programmable Timer
Nominal Voltage (monitor relays)	40-260 VAC/VDC
Time Mark Mounting	11-pin
Electrical Approval (monitor relays)	CSA, UL
Test Equipment General Attributes
Warranty	5 YEARS
Warranty Details	This product is warranted to be free from defects in materials and workmanship, and is covered by our exclusive 5-year Unconditional Warranty. Should this device fail to operate for any reason, we will repair it for five years from the date of manufacture.
Safety Approval	CSA, UL
Product Weight	0.38 LBS
Product Height	3.60 IN
Product Length	2.45 IN
Product Width	1.75 IN
Country of Origin	United States
Shipping Height	3.60 IN
UPC	662917004764
Shipping Length	2.45 IN
Shipping Width	1.75 IN
