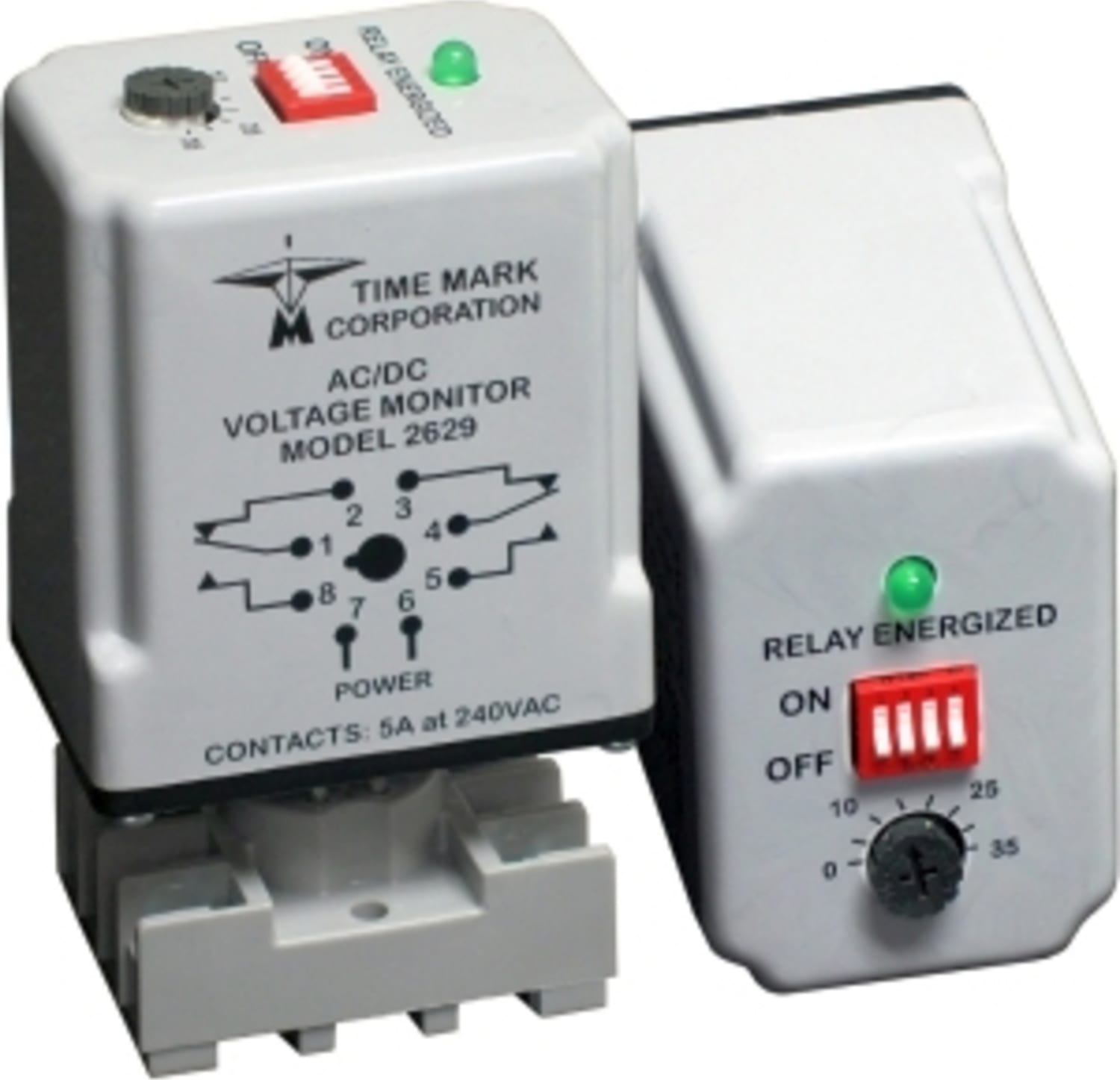

The Model 2629 AC/DC Voltage Monitor is designed to continuously monitor any AC or DC voltage from 15 to 260 volts.

Input voltages above the setpoint cause the output contacts to energize. Input voltages below the setpoint cause the output contacts to de-energize. The dead
band between pull-in and drop-out is less than 5%.

Dip switches are used on the Model 2629 to choose between AC and DC voltage monitoring, and to select one of the eight trip level ranges. Each trip level has a user adjustable 35 volt range, with a 5 volt overlapbetween the ranges. The unit has a screwdriver adjustment to set the trip point within that 35 volt range.

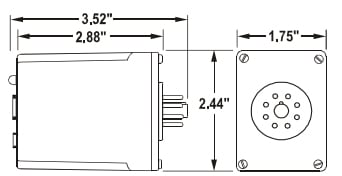

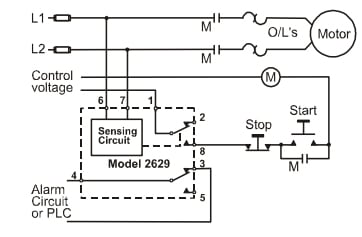

Dimensions	Typical Application
