Time Mark 2621-120VAC Pick Up/Drop Out Voltage Monitor

Name: Time Mark 2621-120VAC Pick Up/Drop Out Voltage Monitor
Brand: Time Mark
SKU: Time Mark2621-120VAC
Price: 167.16 USD
Availability: InStock

0 reviews | UPC: 662917007093 | Model: Time Mark 2621-120VAC

Compare

Pick Up/Drop Out Voltage Monitor, SPDT, 50-400 Hz

120VAC Nominal AC Voltages
SPDT Output in Standard Relay Configuration
AC or DC Versions
Switch Selectable Relay Operation Relay On or Off on Low
Dual Set Points are Ideal in Battery Charging Applications

View Product Details

List Price: $224.00

Your Price: $167.16

In Stock:

View Payment Options

Request Quote

Recommended for you

Time Mark 2621
Pick Up Drop Out Voltage Monitor

Switch Selectable Relay Operation Relay On or Off on Low
SPDT Output in Standard Relay Configuration
AC or DC Versions
Dual Set Points are Ideal in Battery Charging Applications
120VAC Nominal AC Voltages

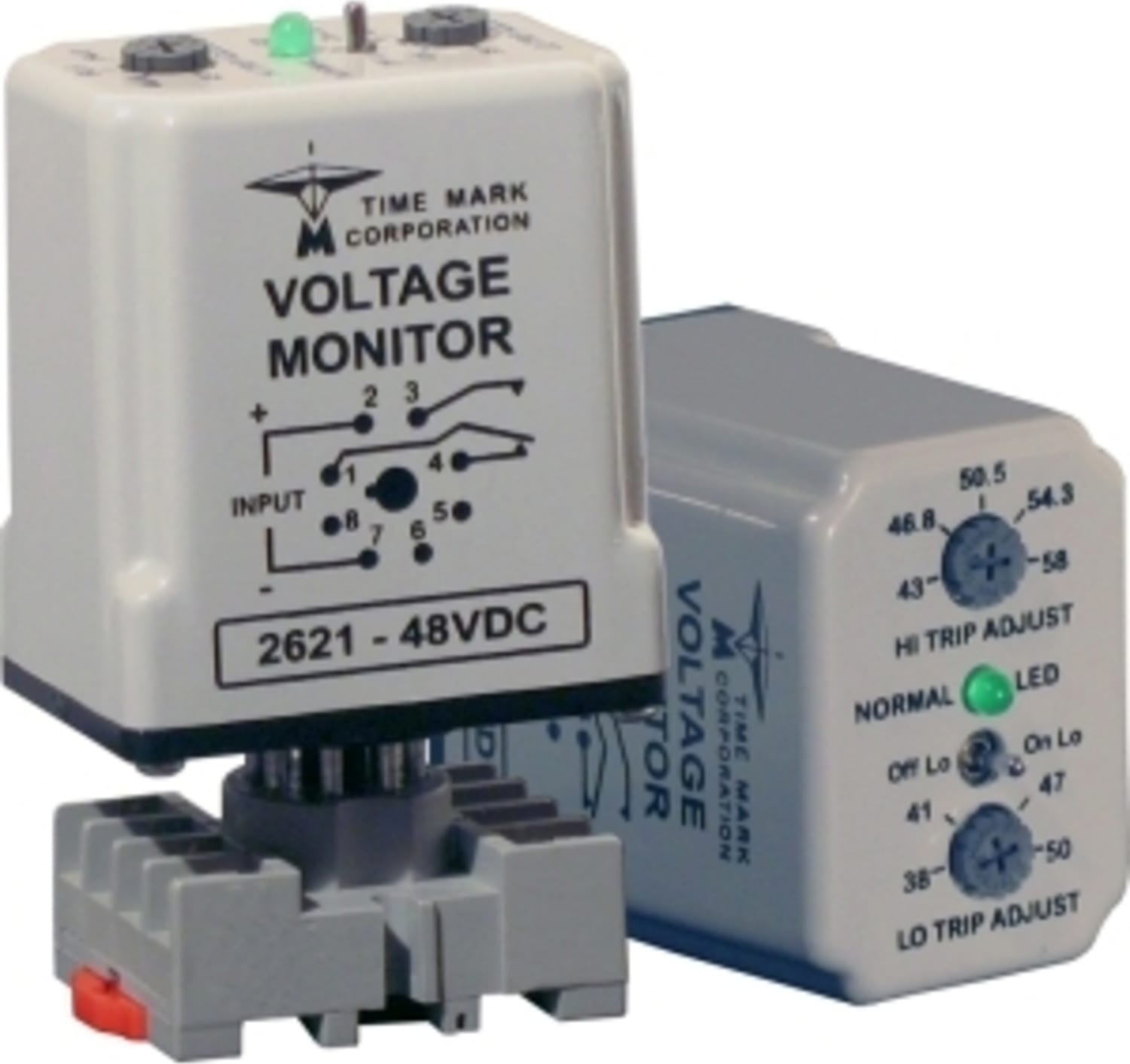

The Model 2621 Pick Up Drop Out Voltage Monitor is designed to monitor single phase equipment. The Normal LED indicates the relay is ENERGIZED.

The Model 2621 is available in AC or DC versions. AC models of the 2621 are not frequency sensitive and can be used on systems from 50 to 400Hz. The voltage set-points are screwdriver adjustable over a wide operating range. The SPDT ouput configuration is identical to the configuration of general purpose relays. This unit requires a standard 8-pin socket for mounting.

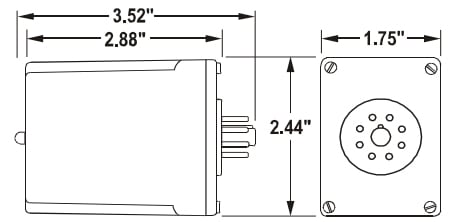

Dimensions	Pin Connection

General Specifications
2621 - AC VERSIONS
Nominal AC voltages	24VAC	120VAC	208VAC 2	220VAC	240VAC
Max input voltage	32VAC	160VAC	250VAC	264VAC	285VAC
Under voltage range	19-26VAC	90-132VAC	185-229VAC	178-233VAC	200-264VAC
Over voltage range	22-29VAC	108-150VAC	187-240VAC	198-242VAC	216-270VAC
Input frequency (Hz)	50 - 400Hz
2621 - DC VERSIONS
Nominal DC Voltage	12VDC	24VDC	28VDC	48VDC	110VDC
Max input voltage	17VDC	32VDC	37VDC	62VDC	145VDC
Under voltage range	10-13VDC	19-26VDC	22-30VDC	38-50VDC	85-121VDC
Over voltage range	11-15VDC	22-29VDC	25-34VDC	43-58VDC	99-135VDC
2621 - ALL VERSIONS
Power consumption	± 2 watts max
Set-point stability	± 0.5% of set-point
Polarity protection	DC versions only
Trip response	0.5 sec fixed (± 0.1 sec)
Reset time	0.1 sec
Output contacts	SPDT
Contact rating	10A at 240VAC resistive
Expected relay life	Mechanical: 10 million operations Electrical: 100,000 at rated load
Operating temp	- 14° to +122°F
Humidity tolerance	97% w/o condensation
Mounting	8-pin socket (*order separately)
Case material	ABS plastic
Weight	5 oz.

Tech Specs

Voltage Frequency Monitor Relays
Voltage Frequency Monitors Function	Pick Up/Drop Out
Time Mark Mounting	8-pin
Nominal Voltage (monitor relays)	120 VAC
Test Equipment General Attributes
Warranty	5 YEARS
Warranty Details	This product is warranted to be free from defects in materials and workmanship, and is covered by our exclusive 5-year Unconditional Warranty. Should this device fail to operate for any reason, we will repair it for five years from the date of manufacture. For complete warranty details, see the Terms and Conditions of Sales page in the front section of the Time Mark catalog or contact Time Mark at 1-800-862-2875.
Product Weight	0.41 LBS
Product Height	3.52 IN
Product Length	2.44 IN
Product Width	1.75 IN
Country of Origin	United States
Shipping Height	3.52 IN
UPC	662917007093
Shipping Length	2.44 IN
Shipping Width	1.75 IN
