Time Mark 2601-120VAC Under-Voltage Monitor

Name: Time Mark 2601-120VAC Under-Voltage Monitor
Brand: Time Mark
SKU: Time Mark2601-120VAC
Price: 108.21 USD
Availability: InStock

0 reviews | UPC: 662917006997 | Model: Time Mark 2601-120VAC

Compare

Under-Voltage Monitor, SPDT, 50-400 Hz, 120VAC

Single-Setpoint Monitors Under Voltage
SPDT Output
LED indicator to illuminate
Automatic Reset
5 Year Unconditional Warranty

View Product Details

List Price: $145.00

Your Price: $108.21

In Stock:

View Payment Options

Request Quote

Recommended for you

Time Mark 2601-120VAC
Under Voltage Monitor

LED indicator to illuminate
Automatic Reset
5 Year Unconditional Warranty
Single-Setpoint Monitors Under Voltage
SPDT Output

The Model 2601 Voltage Sensor is a single-setpoint under voltage monitor. Input voltages above the setpoint will cause the output contact to energize and the LED indicator to illuminate. Input voltages below the setpoint will cause the output contact to de-energize and the LED indicator will go off. The 2601 Voltage Sensor is available in AC or DC versions. AC models of the 2601 are not frequency
sensitive and can be used on systems from 50 to 400Hz. The voltage level is screwdriver adjustable over a wide operating range. This device requires a standard 8-pin socket for mounting.

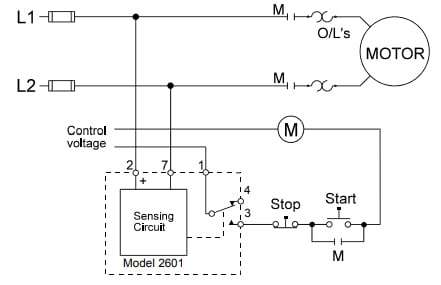

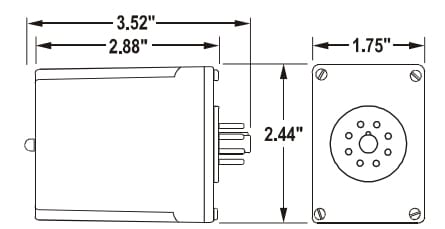

Dimensions	Application

General Specifications
2601 - AC VERSIONS
Nominal AC Voltages	24VAC	120VAC	208VAC	240VAC
Voltage Range	19 - 24	90 - 120	185 - 200	200 - 240
Max. Input Voltage	32V	160V	250V	285V
Input Frequency (Hz)	50 - 400	50 - 400	50 - 400	50 - 400
2601 - DC VERSIONS
Nominal DC Voltage	12VDC	24VDC	28VDC	48VDC	110VDC
Voltage Range	10 - 12	19 - 24	22 - 28	33 - 48	85 - 100
Max. Input Voltage	17V	32V	37V	62V	145V
2601 - ALL VERSIONS
Power Consumption	2W max.
Setpoint Stability	± 0.5% of setpoint
Dead Band	2% or less
Polarity Protection	DC versions only
Trip Response	0.5 second fixed (± 0.1 second)
Reset Time	0.1 second
Output Contacts	SPDT 10A at 240VAC resistive
Expected Relay Life	Mech: 10 million operations Elec: 100,000 at rated load
Operating Temp	-20º to +122º F
Humidity Tolerance	97% w/o condensation
Mounting	8-pin socket *(order separately)
Enclosure Material	ABS plastic
Weight	5 oz.

Tech Specs

Voltage Frequency Monitor Relays
Voltage Frequency Monitors Function	Under Voltage Only
Time Mark Mounting	8-pin
Nominal Voltage (monitor relays)	120 VAC
Test Equipment General Attributes
Warranty	5 YEARS
Warranty Details	This product is warranted to be free from defects in materials and workmanship, and is covered by our exclusive 5-year Unconditional Warranty. Should this device fail to operate for any reason, we will repair it for five years from the date of manufacture. For complete warranty details, see the Terms and Conditions of Sales page in the front section of the Time Mark catalog or contact Time Mark at 1-800-862- 2875.
Product Weight	0.41 LBS
Product Height	3.52 IN
Product Length	2.44 IN
Product Width	1.75 IN
Country of Origin	United States
Shipping Height	3.52 IN
UPC	662917006997
Shipping Length	2.44 IN
Shipping Width	1.75 IN
