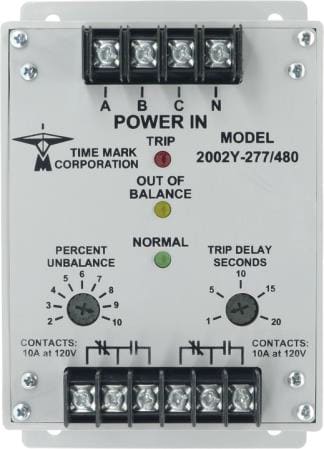

Time Mark 2002Y-277/480 - 3-Phase Voltage Unbalance Monitor, 277VAC, 480VAC, ± 15%, 50Hz -60Hz, 2.0W, Auto Reset

Name: Time Mark 2002Y-277/480 - 3-Phase Voltage Unbalance Monitor, 277VAC, 480VAC, ± 15%, 50Hz -60Hz, 2.0W, Auto Reset
Brand: Time Mark
SKU: Time Mark2002Y-277/480
Price: 202.24 USD
Availability: InStock

0 reviews | UPC: 662917002371 | Model: Time Mark 2002Y-277/480

Compare

3-Phase Voltage Unbalance Monitor, 277VAC, 480VAC, ± 15%, 50Hz -60Hz, 2.0W, Auto Reset

3-Phase Voltage Unbalance Monitor
Phase-neutral voltage: 277VAC
Phase-Phase voltage: 480VAC
Voltage range: ± 15%
Power consumption: 2.0W
Frequency: 50Hz -60Hz
Auto Reset
Detects unbalanced voltage on Wye connections
Percent of unbalance adjustment
Can energize relay with only 1 phase and neutral connection
Mounting surface
ABS plastic enclosure
5-year unconditional warranty

View Product Details

List Price: $271.00

Your Price: $202.24

In Stock:

View Payment Options

Request Quote

Recommended for you

Time Mark 2002Y-277/480 - 3-Phase Voltage Unbalance Monitor, 277VAC, 480VAC, ± 15%, 50Hz -60Hz, 2.0W, Auto Reset

3-Phase Voltage Unbalance Monitor
Phase-neutral voltage: 277VAC
Phase-Phase voltage: 480VAC
Voltage range: ± 15%
Power consumption: 2.0W
Frequency: 50Hz -60Hz
Auto Reset
Detects unbalanced voltage on Wye connections

The Time Mark 2002Y-277/480 3-Phase Voltage Unbalance Monitor is designed to continuously monitor a three-phase line with a neutral connection for unbalanced voltage conditions. The unit offers 277 VAC phase-neutral voltage, 480 VAC phase-phase voltage, ± 15% voltage range, and 2.0W power consumption.

This device will only energize the relay if an unbalance exists. Zero volts on all three phases is considered a balanced condition. This allows the Model 2002Y to be used with shunt breakers so that the main power can be restored without resetting breakers.

The solid-state sensing circuit drives an internal electromechanical relay. Indicator lights on the monitor show when the voltage balance is within an acceptable range, when an unbalance exists, and when the relay is actually tripped.

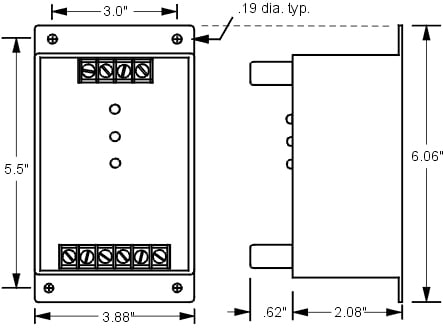

Dimensions:

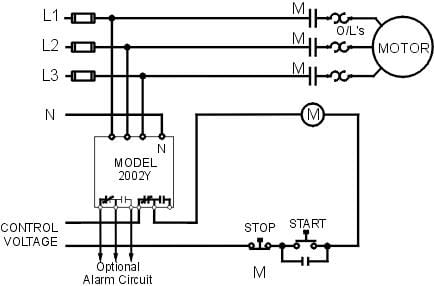

Typical Motor Application:

Shows no power applied

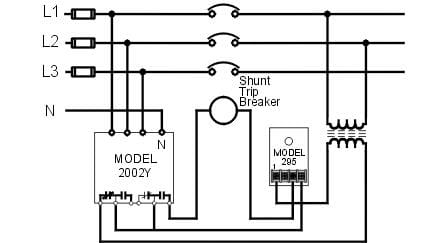

Typical Shunt Breaker Application:

Shows no power applied

Model: 2002Y-277/480 Specifications
Description	3-Phase VoltageUnbalance Monitor
Phase-NeutralVoltage	277VAC
Phase-PhaseVoltage	480VAC
Voltage Range	ą 15%
Frequency	50Hz -60Hz
Power Consumption(per phasemax)	2.0W
Transient Protection	2500VRMS for 10ms
Repeat Accuracy	ą 0.1% (fixed conditions)
Unbalance Adjustment	2% to 10%
Response Time	150ms
Reset Time	Fixed 1 sec
Dropout Time	Adjustable 1to 20 seconds
Reset Type	Automatic
Manual Reset	No
Phase Sensing	Phase Unbalance
Trip Delay	Yes
Trip Restart	No
Dead Band	0.5% max
Contact Rating	DPDT 10 amps at 240VAC resistive
Expected Relay Life	Mech: 10 million operations Elec: 100,000 operations at rated load
Operating Temp	-20° to +131° F
Humidity Tolerance	0-97% w/o condensation
Mounting	Surface
Enclosure Material	ABS plastic
Weight	10 oz.

Tech Specs

Three Phase Monitor Relays
3-Phase Monitor Relay Function	Phase Unbalance Only
Max Nominal Phase to Phase Voltage (monitors)	480 VAC
TIME MARK DELAY	Adjustable Trip Delay
Monitor Relay Contact Type	DPDT
Time Mark Mounting	Surface Mount
Test Equipment General Attributes
Warranty	5 YEARS
Warranty Details	This product is warranted to be free from defects in materials and workmanship, and is covered by our exclusive 5-year Unconditional Warranty.
Product Weight	0.62 LBS
Product Height	6.06 IN
Product Length	3.88 IN
Product Width	2.70 IN
Shipping Weight	0.71 LBS
Country of Origin	United States
Shipping Height	6.06 IN
Shipping Length	3.88 IN
Shipping Width	2.70 IN
