Time Mark 153 - Reverse Phase Relay, 190-500 VAC, 50 to 60Hz, 2W

Name: Time Mark 153 - Reverse Phase Relay, 190-500 VAC, 50 to 60Hz, 2W
Brand: Time Mark
SKU: Time Mark153
Price: 77.24 USD
Availability: InStock

0 reviews | UPC: 662917001428 | Model: Time Mark 153

Compare

Reverse Phase Relay, 190-500 VAC, 50 to 60Hz, 2W

Reverse phase relay
Nominal voltage: 190-500 VAC
Frequency: 50 to 60Hz
Power consumption: 2W
Automatic reset
SPDT contacts
DIN or Surface mounting
Senses phase reversal on Wye or Delta
ABS plastic case
5-year unconditional warranty

View Product Details

List Price: $103.50

Your Price: $77.24

In Stock:

View Payment Options

Request Quote

Recommended for you

Time Mark 153 - Reverse Phase Relay, 190-500 VAC, 50 to 60Hz, 2W

Reverse phase relay
Nominal voltage: 190-500 VAC
Frequency: 50 to 60Hz
Power consumption: 2W
Automatic reset
SPDT contacts
DIN or Surface mounting

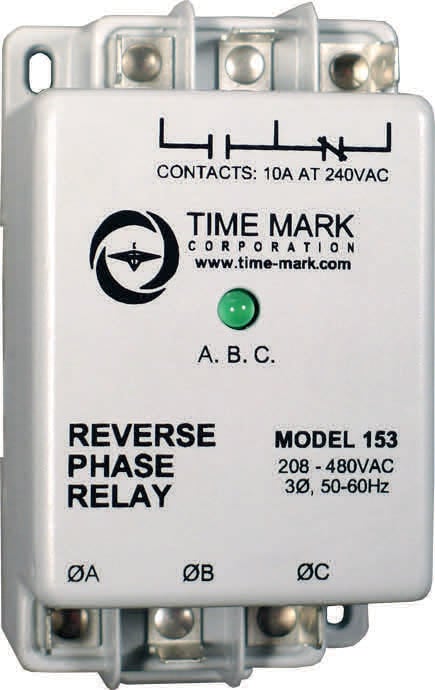

The Time Mark 153 Reverse Phase Relay is designed to continuously monitor the phase rotation of 3-phase lines. This device should be used in applications where proper phase rotation is critical, such as fan motors, compressors, grinders, elevators, etc. The solid-state sensing circuit drives an internal electromechanical relay which energizes when power, with correct phase rotation, is applied. The relay will not energize if the applied phases are reversed. It will de-energize if phase rotation is reversed while the motor is running. An LED indicator will illuminate with the correct ABC phase rotation.

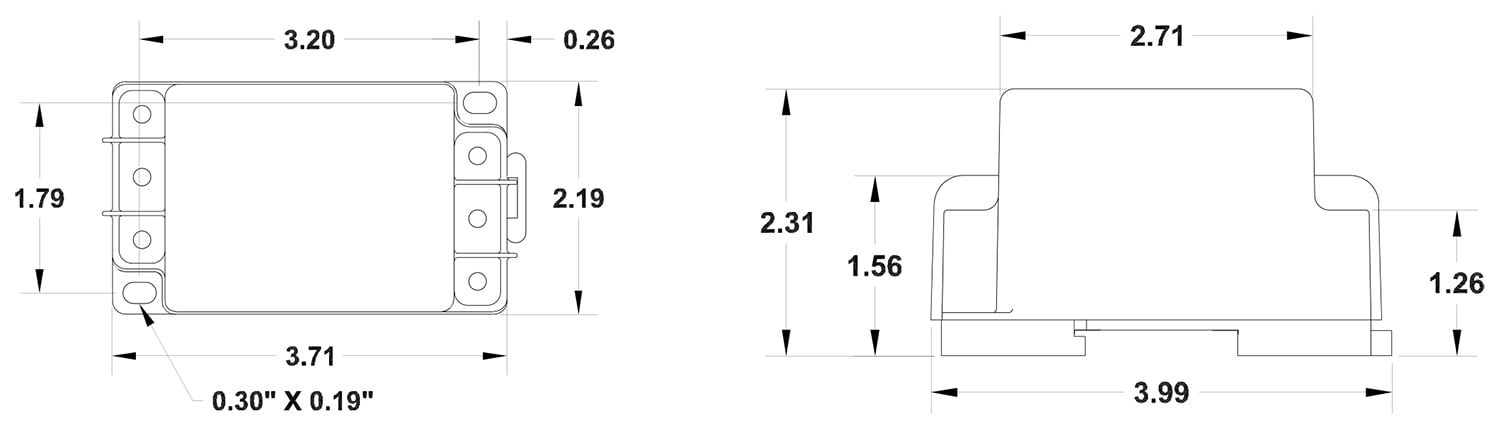

Dimensions:

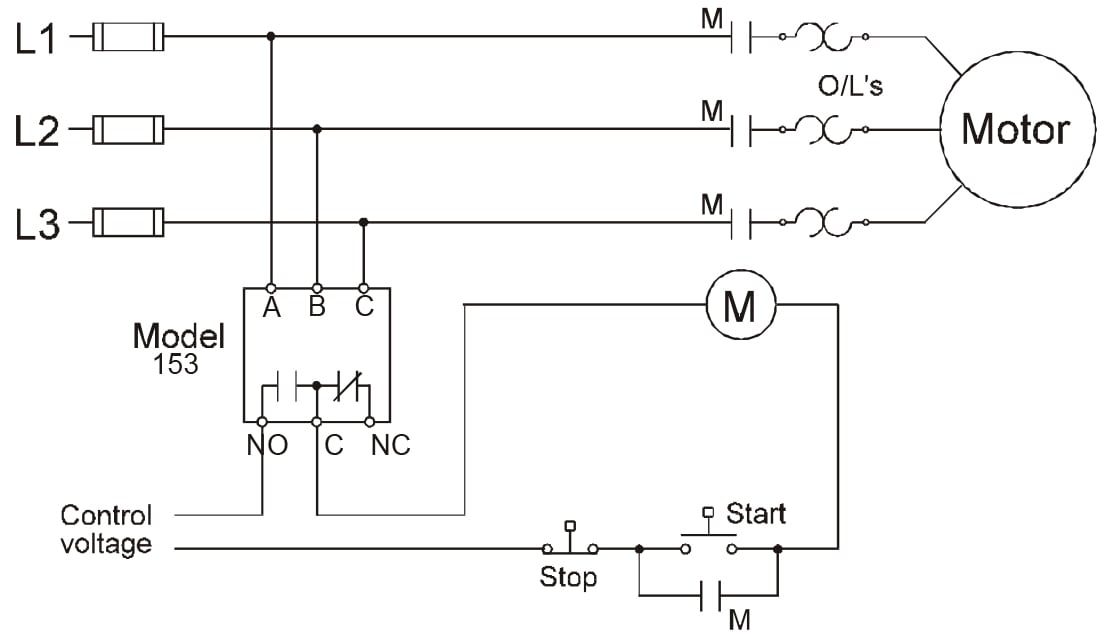

Typical Application:

Model: 153 Specifications
Description	Reverse Phase Relay
Automatic Reset	Yes
Manual Reset	No
Phase Sensing	Phase Reversal
Nominal voltage	190-500 VAC (phase to phase)
Frequency	50 to 60Hz
Power Consumption	2W per phase
Transient protection	2500 VRMS for 10ms
Repeat accuracy	± 0.1 % (fixed conditions)
Response time	.05 seconds
Reset time	.05 seconds
Dead band	Approximately 2%
Output contacts	SPDT 10A at 240VAC resistive
Expected relay life	Mechanical: 10 million operations Electrical: 100,000 at rated load
Operating temp	- 20º to +131º F
Humidity tolerance	0-97% w/o condensation
Case material	ABS plastic
Mounting	DIN Rail or Surface Mount
Weight	4 oz.

Tech Specs

Three Phase Monitor Relays
3-Phase Monitor Relay Function	Phase Reversal Only
Max Nominal Phase to Phase Voltage (monitors)	500 VAC
Monitor Relay Contact Type	SPDT
Time Mark Mounting	DIN, Surface Mount
Test Equipment General Attributes
Warranty	5 YEARS
Warranty Details	This product is warranted to be free from defects in materials and workmanship, and is covered by our exclusive 5-year Unconditional Warranty.
Product Weight	0.25 LBS
Product Height	3.71 IN
Product Length	2.19 IN
Product Width	2.31 IN
Country of Origin	United States
